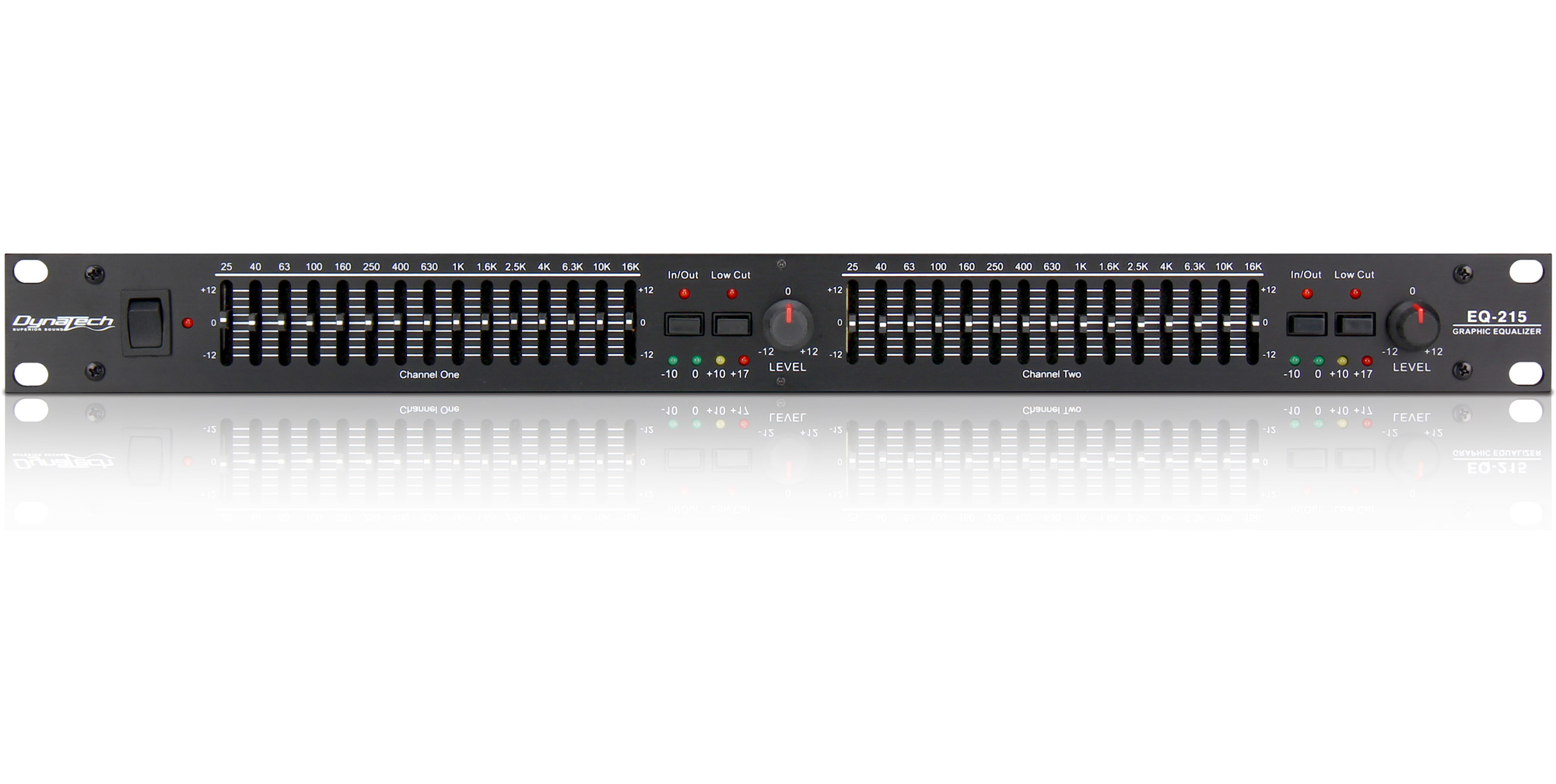

EQ-215 Graphic Equalizer

Dual 15 band, 2/3 Octave from 31.5 hz ~ 16 khz

+12/-12 db boost/cut range on

20 mm slide controls 20 hz ~ 20 khz frequency response, +/-0.5 db

Low cut filter 60 hz -3db

XLR, TRS balance & RCA jack unbalance input

XLR, TRS balance & RCA jack unbalance output

RCA jack unbalance output for recording (output level -6db)

Signal level at -10db, 0db, + 17db LEDs indicators

Low cut & bypass function W/LEDs indicators

AC 120V/240V switchable

1 U rack space

EQ-215Graphic Equalizer
