HP Series Active Speakers

Download Specification Sheet

HP-12A+

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Events, Clubs, Rehearsal Halls etc. The HP Series delivers extraordinary performance at unmatched value.

Download Specification Sheet

SPECIFICATIONS

  Rated Power   350W (RMS)
  Construction   Moulded Polypropylene
  Enclosure
  LF Driver   12", 2.5" VC,
  Ferrite Magnet
  HF Driver   1" Exit, 1.75" VC, Ferrite
  Crossover   2.2kHz

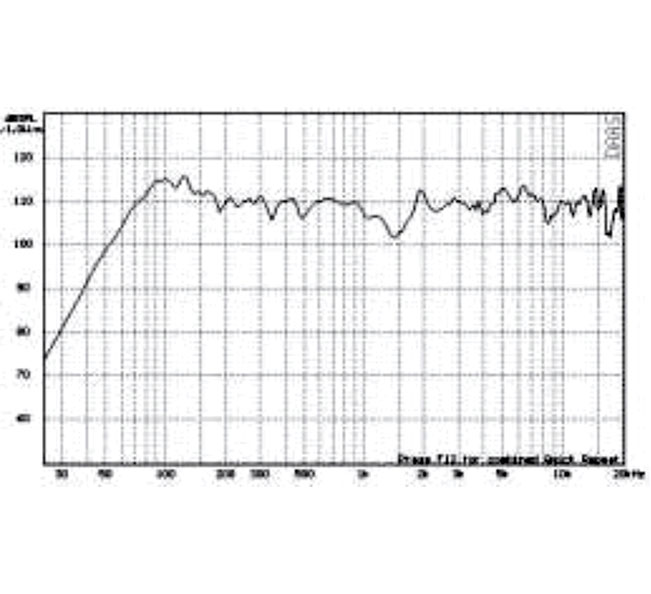

  Frequency Response (-3dB)   55Hz - 18 kHz
  Maximum Peak Output   128 dB
  Dispersion (H X V)   80° X 60°
  Crossover Frequency   80Hz - 200Hz Adjustable
  Connector   2 X XLR; 2 X TS mic i/p
  Packaging Dimensions
  L X B X H (cms)		   45 X 47 X 69
  Net Weight   25 kgs
  Gross Weight   28 kgs

FEATURES

  • High Output SPL & Sensitivity
  • High Power Low Frequency Transducer
  • Built in Power Amplifier Module
  • Master Volume Control
  • Phase Switch

APPLICATIONS

  • Houses of Worship
  • Rehearsal Halls
  • Events
  • Clubs
  • Ballrooms
