Line Array Systems

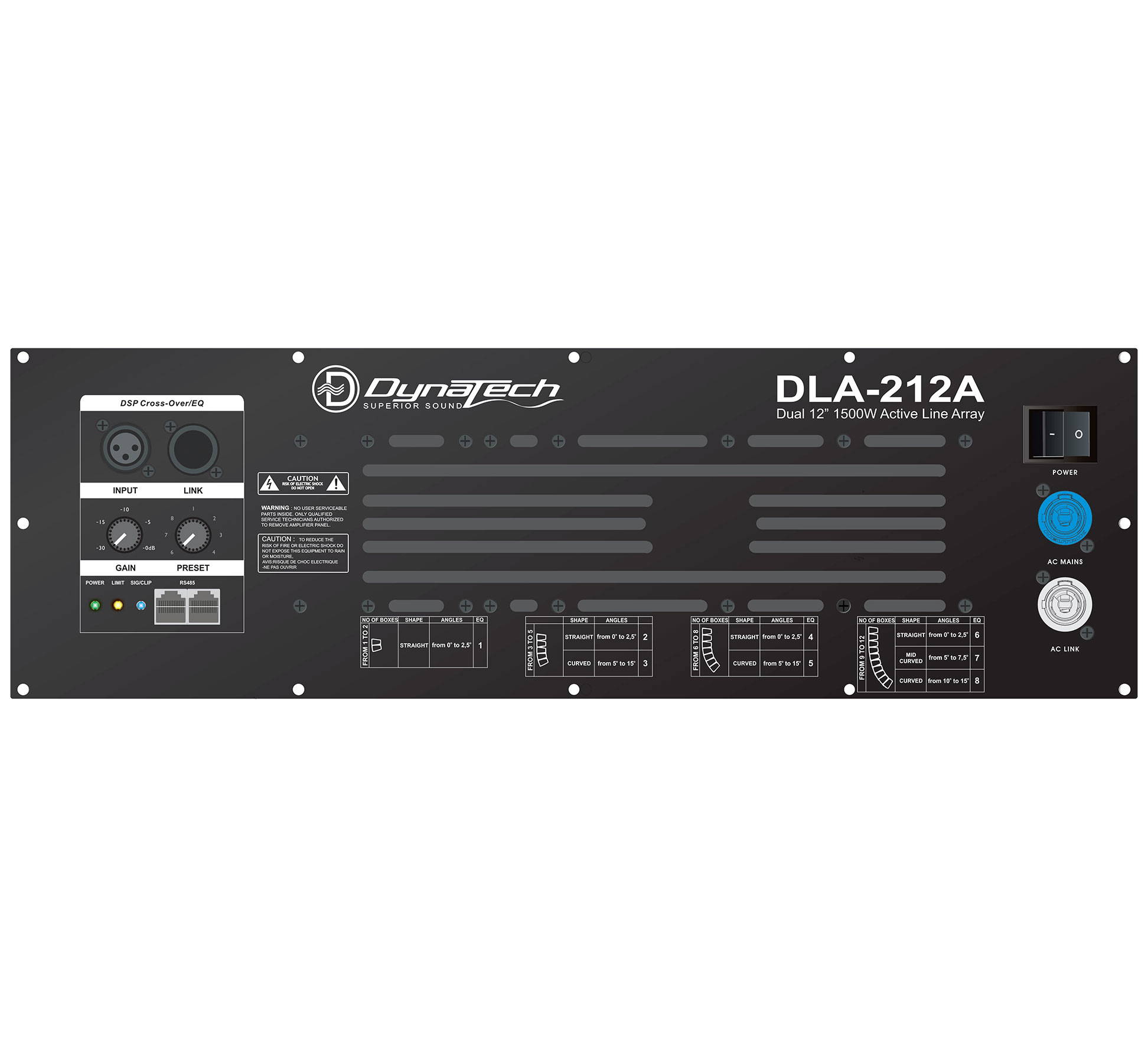

DLA-212A


With everything made Active, you can stop worrying about amplification, equalization and protection. Featuring FiR brick wall filters, Pascal amplification from Denmark with the most precise compressors and limiters to protect your drivers.

SPECIFICATIONS

  Configuration   Active
  Rated Power   1500W RMS
  Construction   18mm Multilayered Plywood
  LF Driver   2 X 12", 3" VC,
  Ferrite Magnet
  HF Driver   2 X 1.4" Exit, 1.75" VC,
  Ferrite Magnet
  Crossover   Triamped, 1 kHz brickwall filter
  Frequency Response (-3dB)   50Hz - 18kHz
  Maximum Peak Output   136 dB
  Rated Impedance   8Ω
  Dispersion (H X V)   120° X 15°
  Connector   2 X XLR Balanced
  Packaging Dimensions
  L X B X H (cms)
  80 X 73 X 86 (2 pcs.)
  Net Weight   43 kgs
  Gross Weight   140 kgs (2 pcs)

FEATURES

  • Active System
  • 3-Way Box Design
  • Multiple Source Emulation
  • Very High Output SPL & Sensitivity
  • FiR Brick Wall filters

APPLICATIONS

  • Houses of Worship
  • Rehearsal Halls
  • Events
  • Clubs
  • Ballrooms

DLA-212A


With everything made Active, you can stop worrying about amplification, equalization and protection. Featuring FiR brick wall filters, Pascal amplification from Denmark with the most precise compressors and limiters to protect your drivers.
