High Performance Full Range Passive Systems

Download Specification Sheet

DVX-225

Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The DVX Series (Best DJ Speakers) deliver extraordinary performance at unmatched value.

Download Specification Sheet

SPECIFICATIONS

  Rated Power   1200W (RMS)
  Construction   18mm Multilayered Plywood
  LF Driver   2 X 15", 4" VC,
  Ferrite Magnet
  HF Driver   1 X 1.4" Exit, 3" VC,
  Ferrite Magnet
  Crossover   1.6 kHz

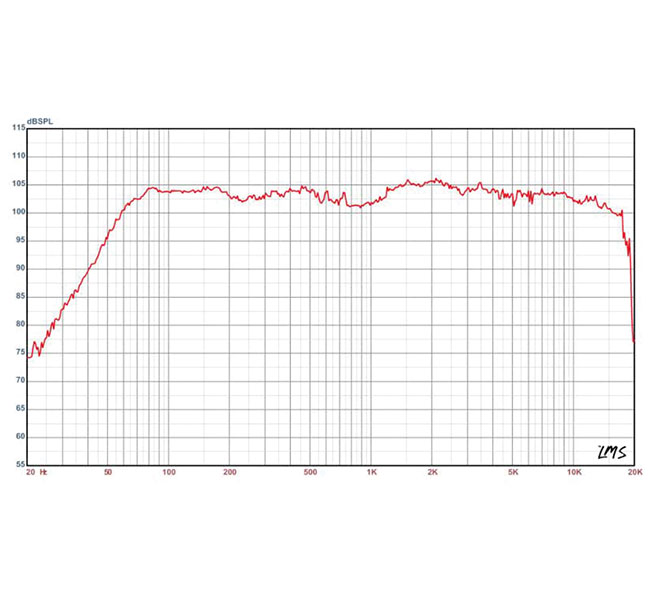

  Frequency Response (-3dB)   45Hz - 19kHz
  Maximum Peak Output   138 dB
  Rated Impedance   4Ω
  Dispersion (H X V)   60° X 40°
  Connector   2 X NL4R Speakon
  Packaging Dimensions
  L X B X H (cms)		   59 X 58 X 130
  Net Weight   70 kgs
  Gross Weight   77 kgs

FEATURES

  • High Output SPL & Sensitivity
  • High Power Low Frequency Transducer
  • Multi Purpose Cabinet Design
  • Use as a Main System with or without Sub Speaker

APPLICATIONS

  • Houses of Worship
  • Rehearsal Halls
  • Events
  • Clubs
  • Ballrooms

DVX-225

Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The DVX Series deliver extraordinary performance at unmatched value.
