PD Series Power Bass Amplifiers

PD Series

Dynatech PowerDrive Series Power bass Amplifiers deliver from 300 Watts to 5000 Watts of power in two to three rack spaces. Built around robust and advanced toroidal transformers, they deliver clean power on demand. The advanced protection circuitry guards against short circuit and open circuit, and also protects against ultrasonic and RF interference. A high current power supply increases reliability and performance. Other features include center-dented gain controls, input peak limiter, and fast recovery to ensure low distortion. The variable speed fans effectively cool the amp and protect against overheating. Input is through XLR connectors, while you can use Speakon-type or binding post connectors for output. The PowerDrive Series Power Amplifiers have selectable low pass and high pass filters at variable frequencies. Dynatech Power Drive Amplifiers are specially designed for professionals who value high power, audio clarity and lasting performance.

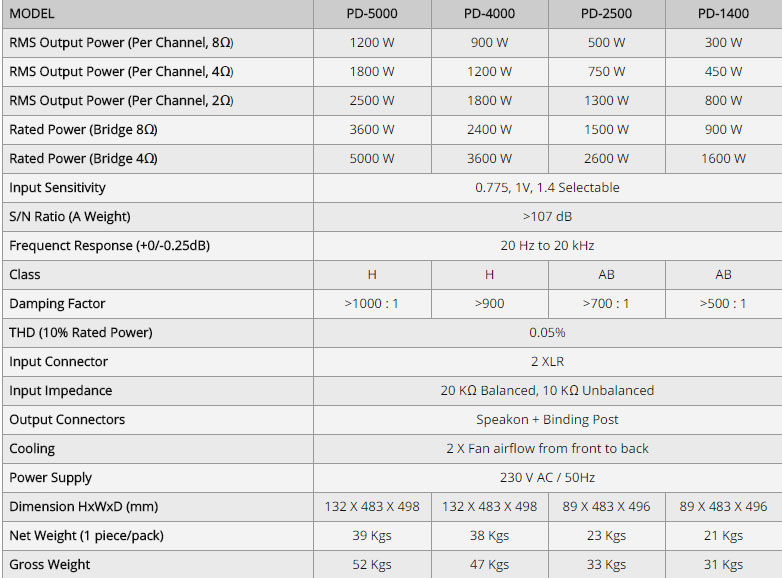

SPECIFICATIONS

MODEL

PD-5000

PD-4000

PD-2500

PD-1400

RMS Output Power (Per Channel, 8Ω)

1200 W

900 W

660 W

300 W

RMS Output Power (Per Channel, 4Ω)

1800 W

1200 W

1100 W

450 W

RMS Output Power (Per Channel, 2Ω)

2500 W

1800 W

1350 W

800 W

Rated Power (Bridge 8Ω)

3600 W

2400 W

1500 W

900 W

Rated Power (Bridge 4Ω)

5000 W

3600 W

2600 W

1600 W

Input Sensitivity

0.775, 1V, 1.4 Selectable

S/N Ratio (A Weight)

>107 dB

Frequenct Response (+0/-0.25dB)

20 Hz to 20 kHz

Class

Damping Factor

>1000 : 1

>900

>700 : 1

>500 : 1

THD (10% Rated Power)

0.05%

Input Connector

2 XLR

Input Impedance

20 KΩ Balanced, 10 KΩ Unbalanced

Output Connectors

Speakon + Binding Post

Cooling

2 X Fan airflow from front to back

Power Supply

230 V AC / 50Hz

Dimension HxWxD (mm)

132 X 483 X 498

89 X 483 X 496

Net Weight (1 piece/pack)

39 Kgs

38 Kgs

23 Kgs

21 Kgs

Gross Weight

52 Kgs

47 Kgs

33 Kgs

31 Kgs
