Power Amplifiers

Download Specification Sheet

PD-Q Series

Three power configurations; 4 channel 3 channel or 2 channel. Individual 4 channel inputs and 2 channels inputs. Independent volume control 4 channels, independent signal indication, Independent clip indication Bridge mode switch for channel 1 & 2 and channel 3&4. The PD-1600Q offers maximum flexibility without compromising on power or performance. It also comes with additional bass and treble controls.

Download Specification Sheet

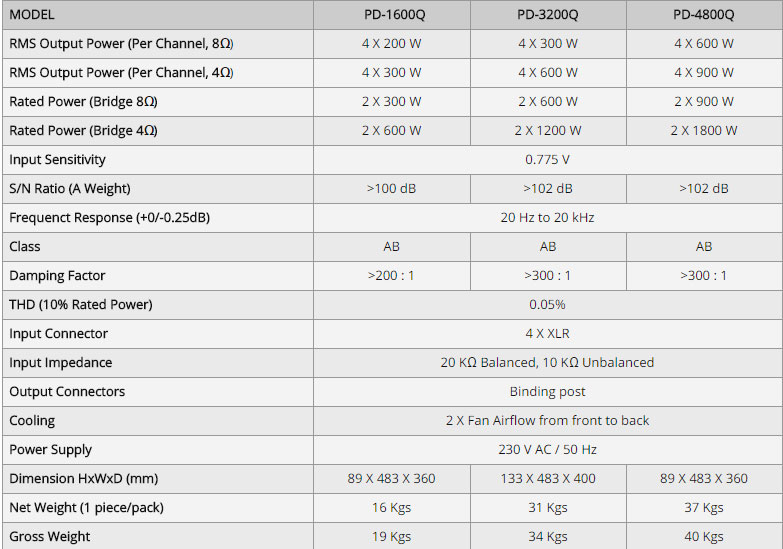

SPECIFICATIONS

  MODEL
  PD-1600Q
  RMS Output Power (Per Channel, 8Ω)
4 X 200 W
  RMS Output Power (Per Channel, 4Ω)
4 X 300 W
  Rated Power (Bridge 8Ω)
2 X 300 W
  Rated Power (Bridge 4Ω)
2 X 600 W
  Input Sensitivity
0.775 V
  S/N Ratio (A Weight)
>100 dB
  Frequenct Response (+0/-0.25dB)
20 Hz to 20 kHz
  Class
AB
  Damping Factor
>200 : 1
  THD (10% Rated Power)
0.05%
  Input Connector
4 X XLR
  Input Impedance
20 KΩ Balanced, 10 KΩ Unbalanced
  Output Connectors
Binding post
  Cooling
2 X Fan Airflow from front to back
  Power Supply
230 V AC / 50 Hz
  Dimension HxWxD (mm)
89 X 483 X 360
  Net Weight (1 piece/pack)
16 Kgs
  Gross Weight
19 Kgs

SPECIFICATIONS

PD-Q Series

Three power configurations; 4 channel 3 channel or 2 channel. Individual 4 channel inputs and 2 channels inputs. Independent volume control 4 channels, independent signal indication, Independent clip indication Bridge mode switch for channel 1 & 2 and channel 3&4. The PD-1600Q offers maximum flexibility without compromising on power or performance. It also comes with additional bass and treble controls.
