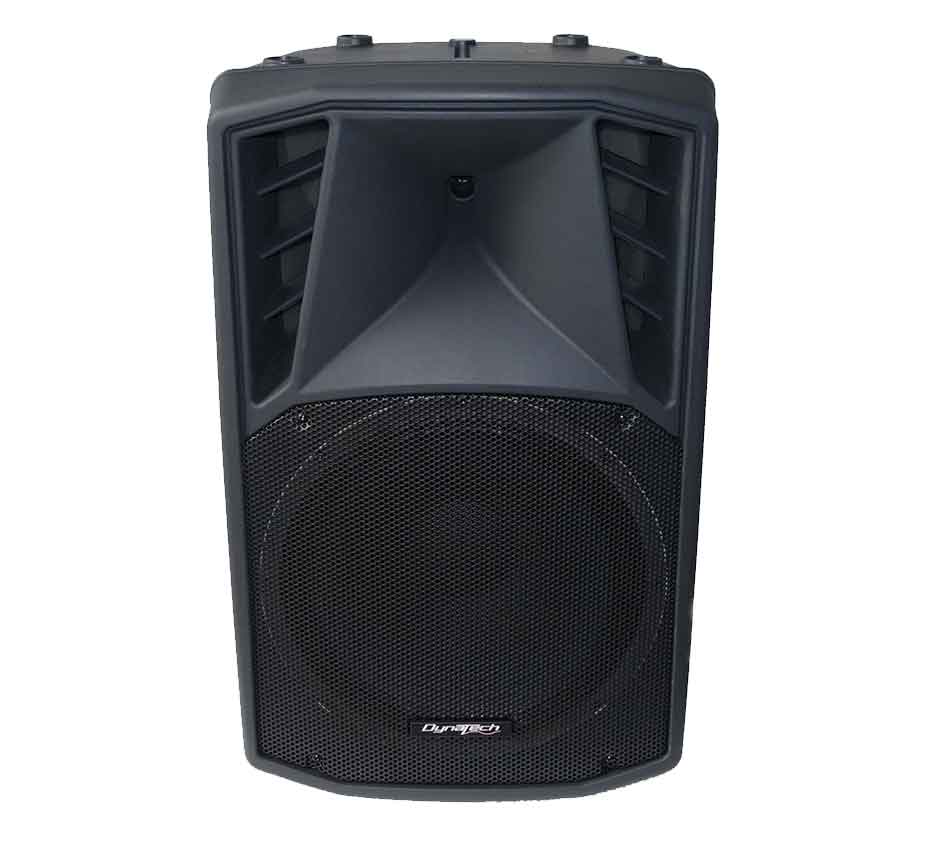

HDA-15

Improving upon Dynatech's best selling active cabinet HP-15A, the HDA-15 powered loudspeaker features increased power and sensitivity, and asymmetric constant directivity to maintain wider dispersion in the nearfield, making the overall listening experience even and smooth across the venue!

The HDA-15 is designed in the UK, equipped with equiplanar transducer alignment providing maximum coherence and minimum offset, and is powered by a high-performance Celestion driver.

Download Specification Sheet

SPECIFICATIONS

  Power Output   1600W Class-AB Power
  Construction   Moulded Polypropylene
  Enclosure
  LF Driver   15", 3" VC, Ferrite Magnet
  HF Driver   1" Exit, 1.75" VC, Ferrite
  Crossover   1.7kHz
  Frequency Response (-3dB)   50Hz - 18 kHz
  Maximum Peak Output   130 dB
  Dispersion (H X V)   80° X 60°
  Connector   2 X XLR; 2 X TS mic i/p
  Packaging Dimensions
  L X B X H (cms)		   50 X 52 X 77
  Net Weight   30 kgs
  Gross Weight   33.5 kgs

FEATURES

  • High Output SPL and Sensitivity
  • Class-leading Bass
  • Powered by Celestion
  • Asymmetrical Horn Dispersion
  • Equiplanar Transducer Alignment
  • Pair with Sub-18D for max low-end punch

APPLICATIONS

  • Houses of Worship
  • Rehearsal Halls
  • Events
  • Clubs
  • Ballrooms
