Active Sub Woofers

Download Specification Sheet

SUB-18D

Portable and installed PA loudspeaker used in application including sound reinforcement in Houses of Ballrooms etc. The Sub Series delivers extraordinary performance at unmatched value.

Download Specification Sheet

SPECIFICATIONS

  Rated Power   800W (RMS)
  Construction   18mm Multilayered Plywood
  Transducers   1 X 18", 4" VC,
  Ferrite Magnet
  Frequency Response (-3dB)   35Hz - 300 Hz
  Maximum Peak Output   132 dB
  Crossover Frequency   80Hz - 200Hz Adjustable
  Connector   2 X XLR; RCA

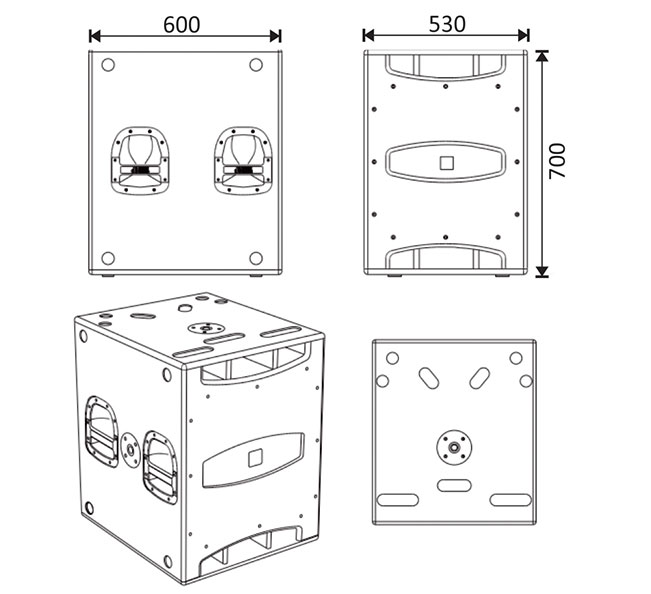

  Packaging Dimensions
  L X B X H (cms)		   64 X 58 X 76
  Net Weight   56 kgs
  Gross Weight   59 kgs

FEATURES

  • High Output SPL & Sensitivity
  • High Power Low Frequency Transducer
  • Built in Power Amplifier Module
  • Master Volume Control
  • Phase Switch

APPLICATIONS

  • Houses of Worship
  • Rehearsal Halls
  • Events
  • Clubs
  • Ballrooms
