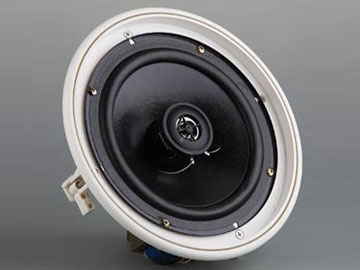

PCS-8CFT
8" 2-Way Coaxial Ceiling Speaker with LMT
Specifications
| Type: 2-Way Coaxial |
| Power (RMS/Program): 35 / 70 Watts |
| Sensitivity (1W@1M): 92dB |
| Frequency Range: 65Hz-20kHz |
| LF Component: 8" (203mm) Cone |
| HF Component: 1.5" (42mm) PEI |
| Dimension (WXD): 10.12" x 3.87" |
| Baffle Cutout Dimension: Ø 9.45" (240mm) |
| Net / Gross Weight: 1.44 Kg / 1.7 Kg |
| Download Specification Sheet |

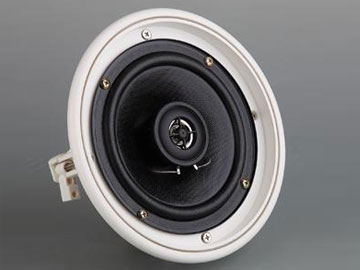

PCS-6CFT
6" 2-Way Coaxial Ceiling Speaker with LMT
Specifications
| Type: 2-Way Coaxial |
| Power (RMS/Program): 30 / 60 Watts |
| Sensitivity (1W@1M): 91dB |
| Frequency Range: 65Hz-20kHz |
| LF Component: 6" (152mm) Cone |
| HF Component: 1.5" (42mm) PEI |
| Dimension (WXD): 8.39" x 3.43" |
| Baffle Cutout Dimension: Ø 7.6" (193mm) |
| Net / Gross Weight: 1.5 Kg / 1.65 Kg |
| Download Specification Sheet |

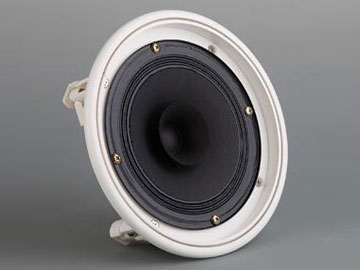

PCS-6FNT
6" Full Range Coaxial Ceiling Speaker with LMT
Specifications
| Type: 2-Way Coaxial |
| Power (RMS/Program): 20 / 30 Watts |
| Sensitivity (1W@1M): 87dB |
| Frequency Range: 80Hz-18kHz |
| LF Component: 6" (152mm) Cone |
| HF Component: 6" (152mm) PEI |
| Dimension (WXD): 8.39" x 3.16" |
| Baffle Cutout Dimension: Ø 7.6" (193mm) |
| Net / Gross Weight: 0.97 Kg / 2.6 Kg |
| Download Specification Sheet |
PCS-5CFT
5" 2-Way Coaxial Ceiling Speaker with LMT
Specifications
| Type: 2-Way Coaxial |
| Power (RMS/Program): 25 / 50 Watts |
| Sensitivity (1W@1M): 90dB |
| Frequency Range: 65Hz-20kHz |
| LF Component: 5" (127mm) Cone |
| HF Component: 1.5" (42mm) PEI |
| Dimension (WXD): 7.22" x 3.26" |
| Baffle Cutout Dimension: Ø 6.53" (166mm) |
| Net / Gross Weight: 1.4 Kg / 1.45 Kg |
| Download Specification Sheet |

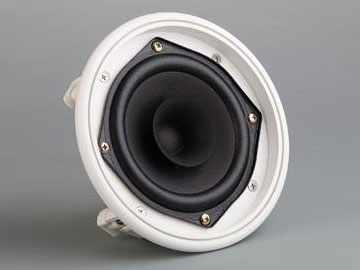

PCS-5FNT
5" Full Range Coaxial Ceiling Speaker with LMT
Specifications
| Type: Full Range |
| Power (RMS/Program): 20 / 30 Watts |
| Sensitivity (1W@1M): 86dB |
| Frequency Range: 80Hz-18kHz |
| LF Component: 5" (127mm) Cone |
| HF Component:5" (127mm) Cone |
| Dimension (WXD): 7.22" x 3" |
| Baffle Cutout Dimension: Ø 6.53" (166mm) |
| Net / Gross Weight: 0.9 Kg / 0.95 Kg |
| Download Specification Sheet |

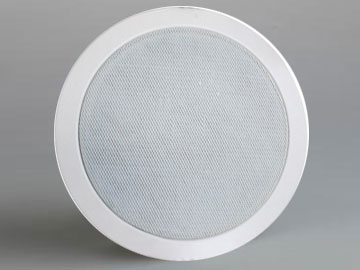

CS-6A
6" Full Range Coaxial Ceiling Speaker with LMT
Specifications
| Type: PA Ceiling Speaker |
| Power (RMS/Program): 10 / 20 Watts |
| Sensitivity (1W@1M): 86dB |
| Frequency Range: 100Hz-18kHz |
| LF Component: 6" / 152mm |
| HF Component: - |
| Dimension (WXD): 230mm x 160mm |
| Baffle Cutout Dimension: - |
| Net / Gross Weight: 2 Kg / 2.2 Kg |
| Download Specification Sheet |

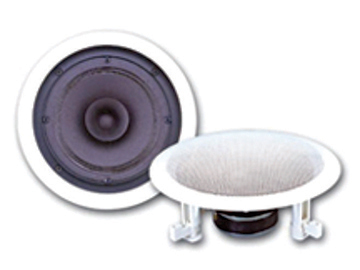

CS-6FT
6" Full Range Ceiling Speaker with Transformer
Specifications
| Type: Ceiling Speaker with Transformer |
| Power Capacity: 15 Watts |
| Sensitivity (1W@1M): 90dB |
| Frequency Response: 80Hz-20kHz |
| Speaker: 6" (153mm) Cone Speaker |
| Transformer Input Rated: 2.5 W , 5W , 10W |
| Dimension (WXD): Ø 227mm(8.94") x 83mm(3.27") |
| Baffle Cutout Dimension: Ø 7.72" (196mm) |
| Net Weight: 0.97 kgs (2.13 lbs) |
| Shipping Weight (2 pcs): 2.62 kgs (5.76 lbs) |
| Download Specification Sheet |
