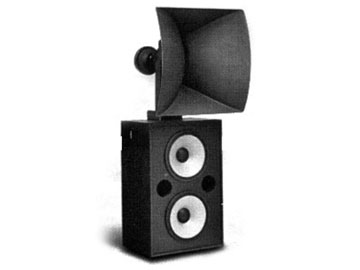

8675
Dual 15" Cinema main Speaker
Specifications
| Frequency Range: 35Hz - 20kHz |
| Power: 1200W (LF), 150W (HF) |
| Sensibility: 100dB (LF), 112dB (HF) |
| Coverage: 90° X 40° |
| Download Specification Sheet |
8670
Dual 15" Cinema main Speaker
Specifications
| Frequency Range: 40Hz - 18kHz |
| Power: 1200W (LF), 150W (HF) |
| Sensibility: 100dB (LF), 112dB (HF) |
| Coverage: 100° X 80° |
| Download Specification Sheet |

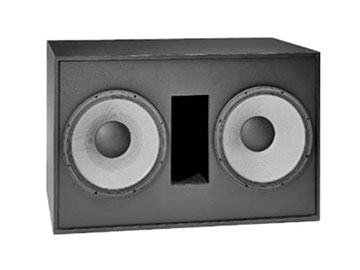

8642
High Power Dual 18" Cinema Sub Woofer
Specifications
| Frequency Range: Usable to 22Hz |
| Power: 2000W (RMS), 4000W (Program) |
| Impedance: 4 Ohm |
| Sensibility: 102dB (Nominal), 134dB (Peak) |
| Weight: 65 Kgs |
| Download Specification Sheet |

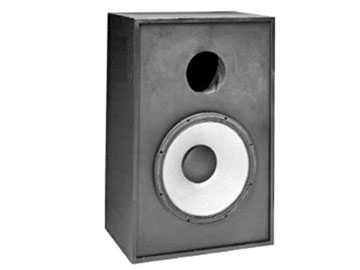

8641
High Power 18" Cinema Sub Woofer
Specifications
| Frequency Range: Usable to 22Hz |
| Power: 1000W (RMS), 2000W (Program) |
| Impedance: 8 Ohm |
| Sensibility: 97dB (Nominal), 131dB (Peak) |
| Weight: 34 Kgs |
| Download Specification Sheet |

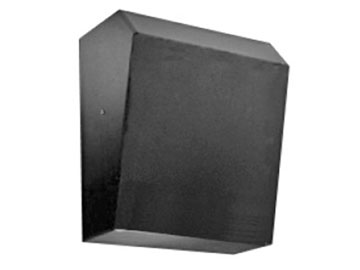

7312
12" +HF, Cinema Surround Speaker
Specifications
| Frequency Range: 60Hz - 16kHz |
| Power: 200W (LF), 25W (HF) |
| Sensibility: 96dB (LF), 122dB (HF) |
| Coverage: 90° X 60° |
| Download Specification Sheet |

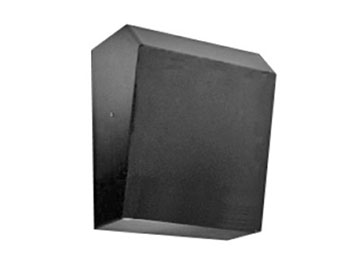

7310
10" +HF, Cinema Surround Speaker
Specifications
| Frequency Range: 60Hz - 16kHz |
| Power: 150W (LF), 25W (HF) |
| Sensibility: 96dB (LF), 120dB (HF) |
| Coverage:90° X 60° |
| Download Specification Sheet |

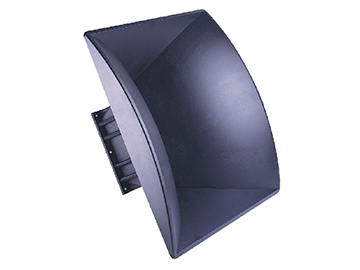

PH-760
Horn for professional drivers
Specifications
| Material: A.B.S. with Glass Filled Black Polycarbonate |
| Colour: Black |
| Nominal Coverage Angle: 100° X 100° (H x V) -6dB |
| Cut Off Frequency: 500 Hz |
| Throat Diameter: 50mm (2") |
| Download Specification Sheet |
