High Performance Full Range Passive Systems

Download Specification Sheet

CX-15

Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The CX-15 deliver extraordinary performance at unmatched value.

Download Specification Sheet

SPECIFICATIONS

  Rated Power   450W (RMS)
  Construction   15mm Multilayered Plywood
  LF Driver   1 X 15" Coaxial, 3" VC,
  Ferrite Magnet
  HF Driver   1 X Coaxial, 1.5" VC,
  Ferrite Magnet
  Crossover   2.1 kHz

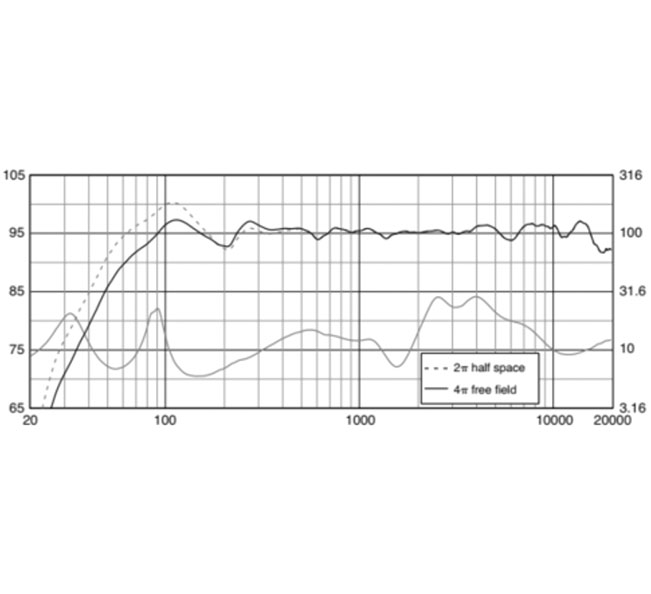

  Frequency Response (-3dB)   60Hz - 20kHz
  Maximum Peak Output   128 dB
  Rated Impedance   8Ω
  Dispersion (H X V)   70° X 70°
  Connector   2 X NL4R Speakon

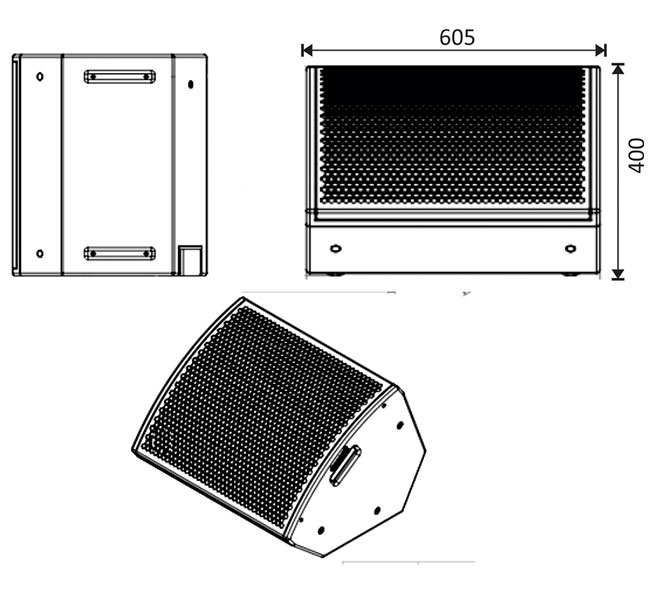

  Packaging Dimensions
  L X B X H (cms)		   50 X 46 X 84
  Net Weight   27 kgs
  Gross Weight   30 kgs

FEATURES

  • High Output SPL & Sensitivity
  • High Power Low Frequency Transducer
  • Multi Purpose Cabinet Design
  • Use as a Main System with or without Sub Speaker

APPLICATIONS

  • Houses of Worship
  • Rehearsal Halls
  • Events
  • Clubs
  • Ballrooms
