Power Amplifiers

Download Specification Sheet

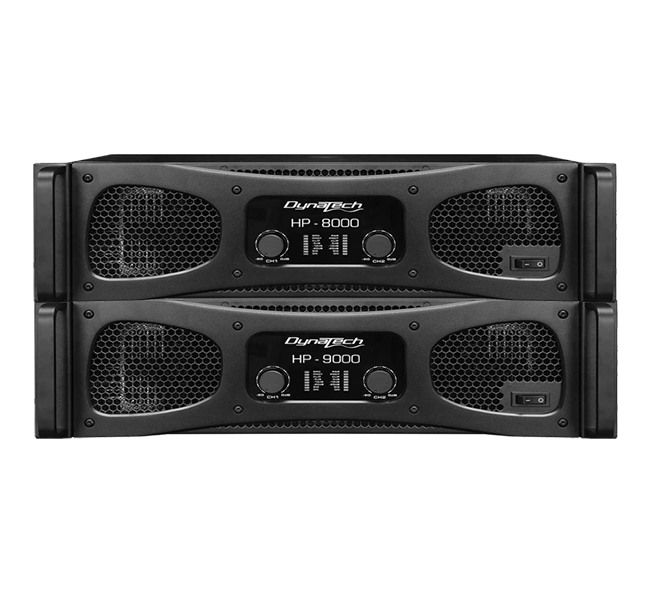

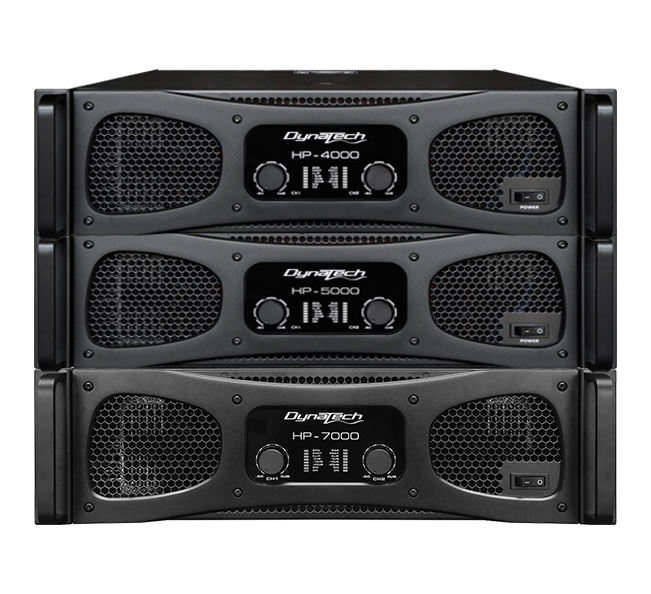

HP Series

Dynatech's HP Series power amplifiers are built around robust and advanced toroidal transformers, and deliver clean power on demand. The advanced protection circuitry guards against short circuit, over load, clip limit, peak current limit, over heat and open circuit, and also protects against ultrasonic and RF interference.

A high current power supply increases reliability and performance. Other features include center-detented gain controls, input peak limiter and fast recovery to ensure low distortion. The variable speed fans effectively cool the amp and protect against overheating. Input is through XLR or 1/4" connectors, while you can use Speakon-type or binding post connectors for output.

Dynatech HP Series Amplifiers are specially designed for professionals who value high power, audio clarity, reliability and lasting performance.

Download Specification Sheet

SPECIFICATIONS

MODEL
HP-4000
HP-5000
HP-7000
HP-8000
HP-9000
RMS Output Power (Per Channel, 8Ω)
2 x 800 W
2 x 1150 W
2 x 1500 W
2 x 1600 W
2 x 1900 W
RMS Output Power (Per Channel, 4Ω)
2 x 1300 W
2 x 1800 W
2 x 2300 W
2 x 2400 W
2 x 2800 W
RMS Output Power (Per Channel, 2Ω)
2 x 1750 W
2 x 2400 W
2 x 3600 W
2 x 3700 W
2 x 4000 W
Rated Power (Bridge 8Ω)
1 x 2550 W
1 x 3450 W
1 x 4500 W
1 x 4600 W
1 x 4800 W
Rated Power (Bridge 4Ω)
1 x 3400 W
1 x 4600 W
1 x 7200 W
1 x 8200 W
1 x 9200 W
Input Sensitivity
0.775V / 1.0V / 1.4V
S/N Ratio (A Weight)
>80dB
>80dB
>80dB
>105dB
>108dB
Frequency Response (+0/-0.5dB)
20 Hz - 20 kHz
Slew rate
>20V/µs
>20V/µs
>20V/µs
>30V/µs
>35V/µs
Damping Factor
>1300
>1300
>1300
>1400
>1500
THD (10% Rated Power)
<0.02%
<0.02%
<0.02%
<0.1%
<0.1%
Input Connector
Jack & female Neutrik XLR
Input Impedance (bal/unbal)
20kΩ/10kΩ
Output Connectors
Binding Post & Neutrik Speakon
Crosstalk
-
-
>60dB
>62dB
>65dB
Mode
Stereo / Parallel / Bridge
Dimension HxWxD (mm)
483 x 503 x 133
483 x 503 x 133
483 x 503 x 133
483 x 132 x 483
483 x 132 x 483
Net Weight
-
-
36.8 Kgs
41.0 Kgs
44.0 Kgs
Gross Weight
33.4 Kgs
39.1 Kgs
40 Kgs
44 Kgs
47 Kgs

HP Series

Dynatech's HP Series power amplifiers are built around robust and advanced toroidal transformers, and deliver clean power on demand. The advanced protection circuitry guards against short circuit, over load, clip limit, peak current limit, over heat and open circuit, and also protects against ultrasonic and RF interference.

A high current power supply increases reliability and performance. Other features include center-detented gain controls, input peak limiter and fast recovery to ensure low distortion. The variable speed fans effectively cool the amp and protect against overheating. Input is through XLR or 1/4" connectors, while you can use Speakon-type or binding post connectors for output.

Dynatech HP Series Amplifiers are specially designed for professionals who value high power, audio clarity, reliability and lasting performance.
