Wireless Microphone System

Download Manual

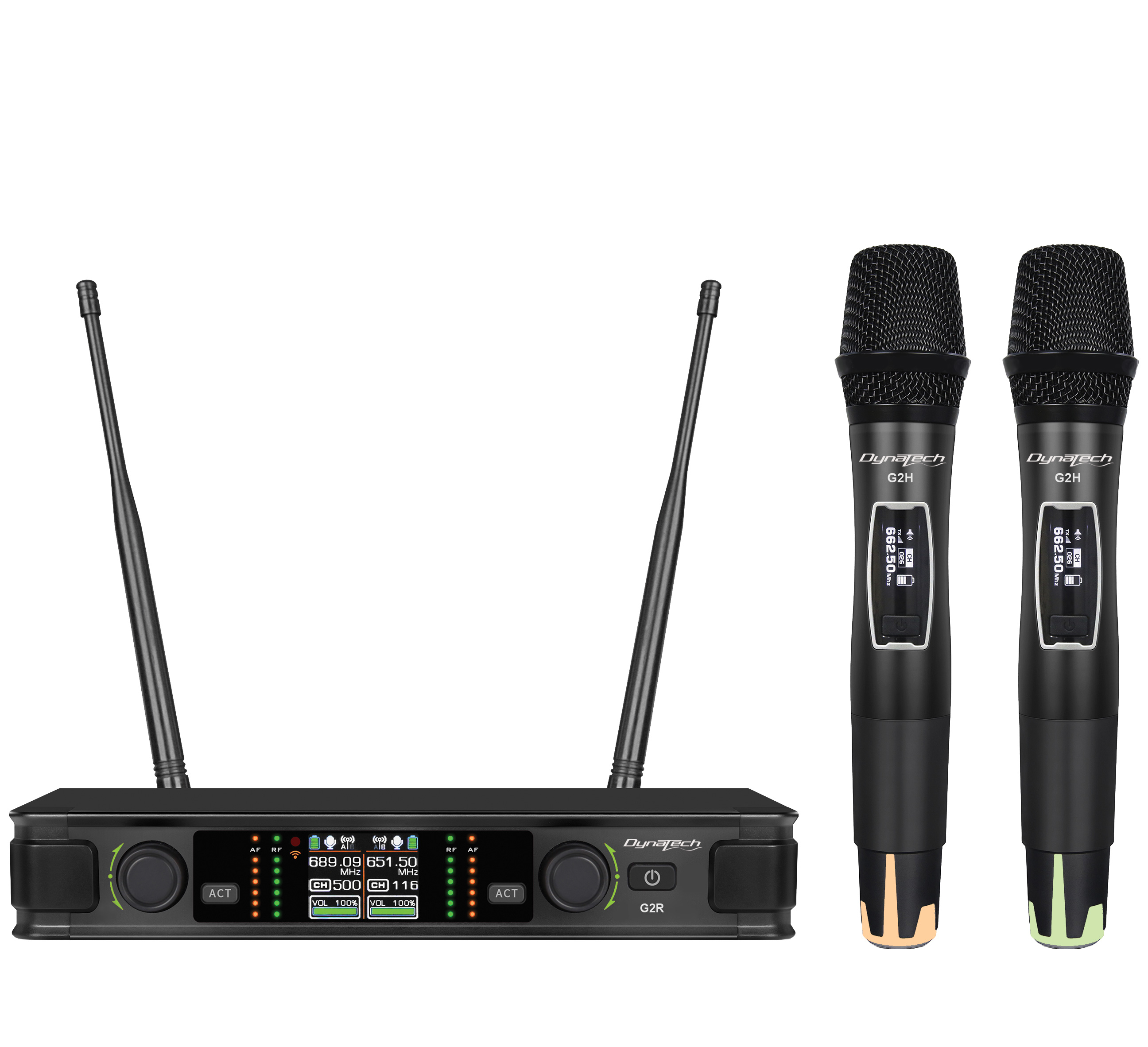

G2 UHF Wireless Microphone System

The Dynatech G2 Wireless microphone system is very easy to install and convenient to use. This model adopts intelligent cryptographic hardware, to achieve unique sound and RF performance. Frequencies group, colorful display and humanized menu make it easy for single or multi-sets installation.

Download Manual

SPECIFICATIONS

  Receiver
  Carrier Frequency
  UHF640-690MHz, optional
  Bandwidth
  50MHz
  Dynamic Range
  96dB
  Distortion
  <0.3%
  Frequency Response
  30Hz-20KHz/±2dB
  Signal/Noise Ratio
  96dB
  Sensitivity
  -95dBm
  Power Supply
  DC14V, 400mA
  Audio Output
  1×6.3mm, 2×XLR balance
  output
  Sensitivity Range
  +15dB~ -35dB

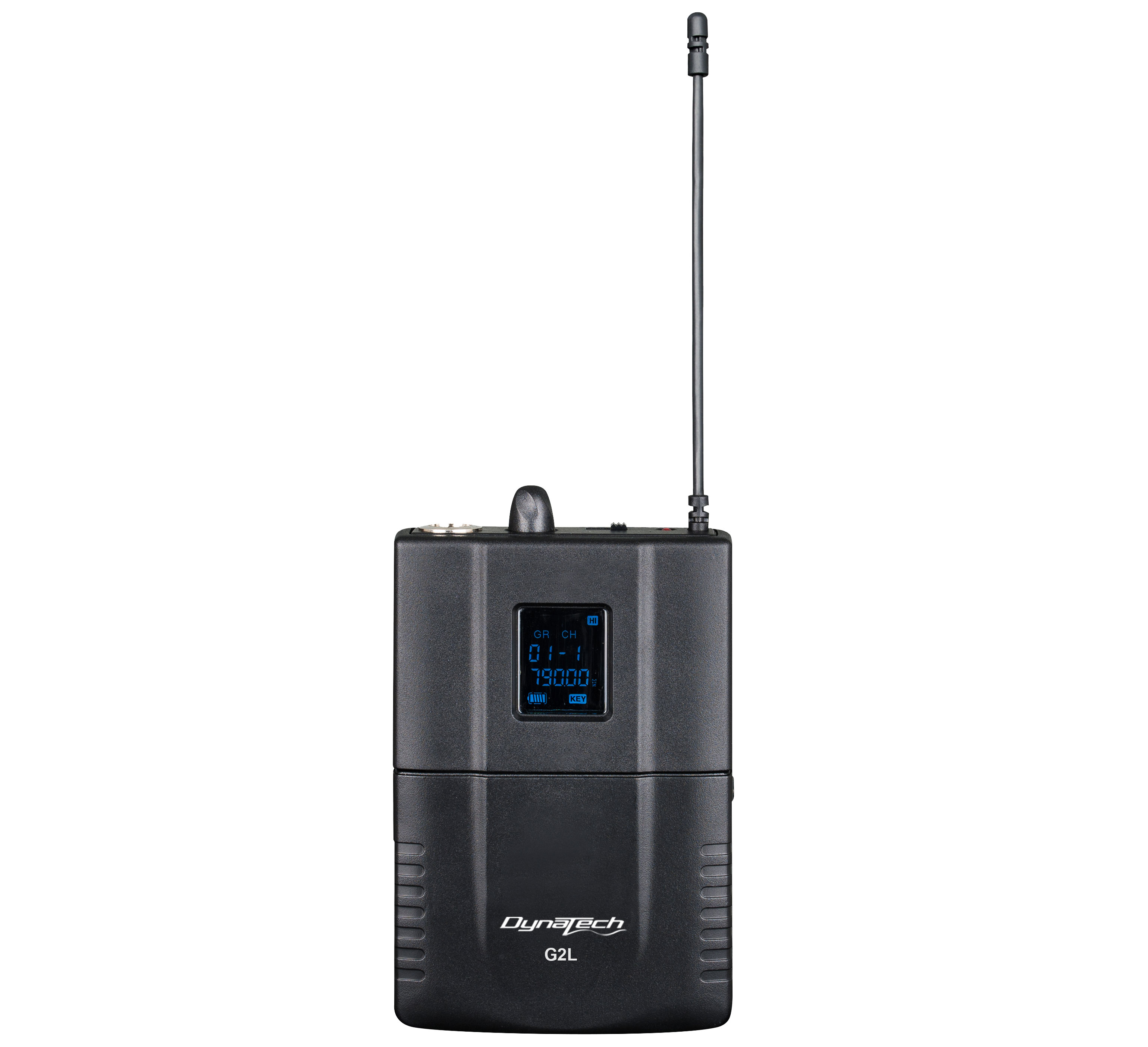

  Transmitter
  Carrier Frequency
  UHF640-690MHz, optional
  Bandwidth
  50MHz
  Frequency Switch
  IR SYNC
  Output Power
  30mW
  Harmonic Radiation
  <-50 dBc
  Battery
  2×1.5V AA battery
  Battery Life
  >5h

FEATURES

  • Optional UHF band 640-690MHz
  • Display on receiver and transmitter show frequency
          and battery condition.
  • Unique digital 16 bit ID pilot technology
  • No crosstalk disturbance even in the same frequency
  • Suitable for stages, ballrooms, conference rooms,
          speech and home entertainment
  • Single chip design with multi-frequency selecting
          function
  • Ideal distance: 80M in open space

G2 UHF Wireless Microphone System

The Dynatech G2 Wireless microphone system is very easy to install and convenient to use. This model adopts intelligent cryptographic hardware, to achieve unique sound and RF performance. Frequencies group, colorful display and humanized menu make it easy for single or multi-sets installation.
