High Power Sub Woofers

Download Specification Sheet

DEL-118

The DEL Series Subwoofer loudspeaker utilizes high power low frequency drivers with a structurally solid enclosure. The DEL series Subwoofer loudspeaker delivers extended low frequency bandwidth with excellent punch. Suitable for performing Arts, Auditoriums, Clubs, Houses of Worship, Entertainment Venues and indoor Sports Facilities. Excellent for live, rental and portable sound reinforcement applications.

Download Specification Sheet

SPECIFICATIONS

  Rated Power   1000W (RMS)
  Construction   18mm Multilayered Plywood

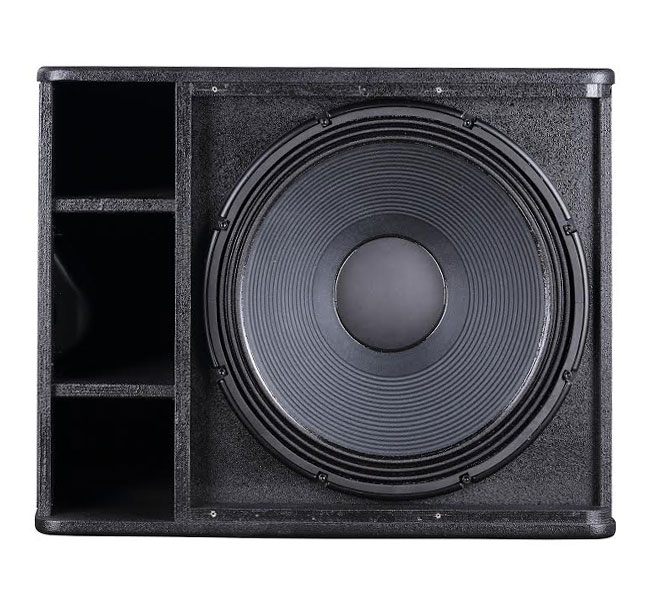

  LF Driver   1 X 18", 4" VC,
  Ferrite Magnet

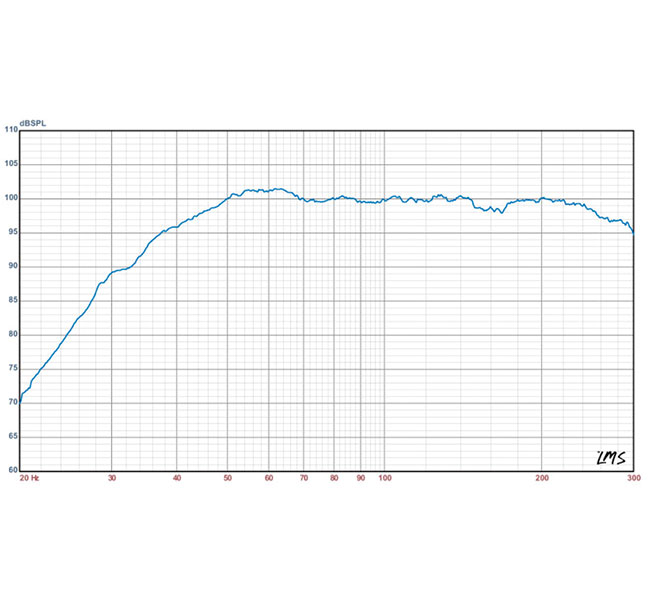

  Frequency Response (-3dB)   30 Hz - 300 Hz
  Maximum Peak Output   136 dB
  Rated Impedance   8Ω
  Dispersion (H X V)   Omni

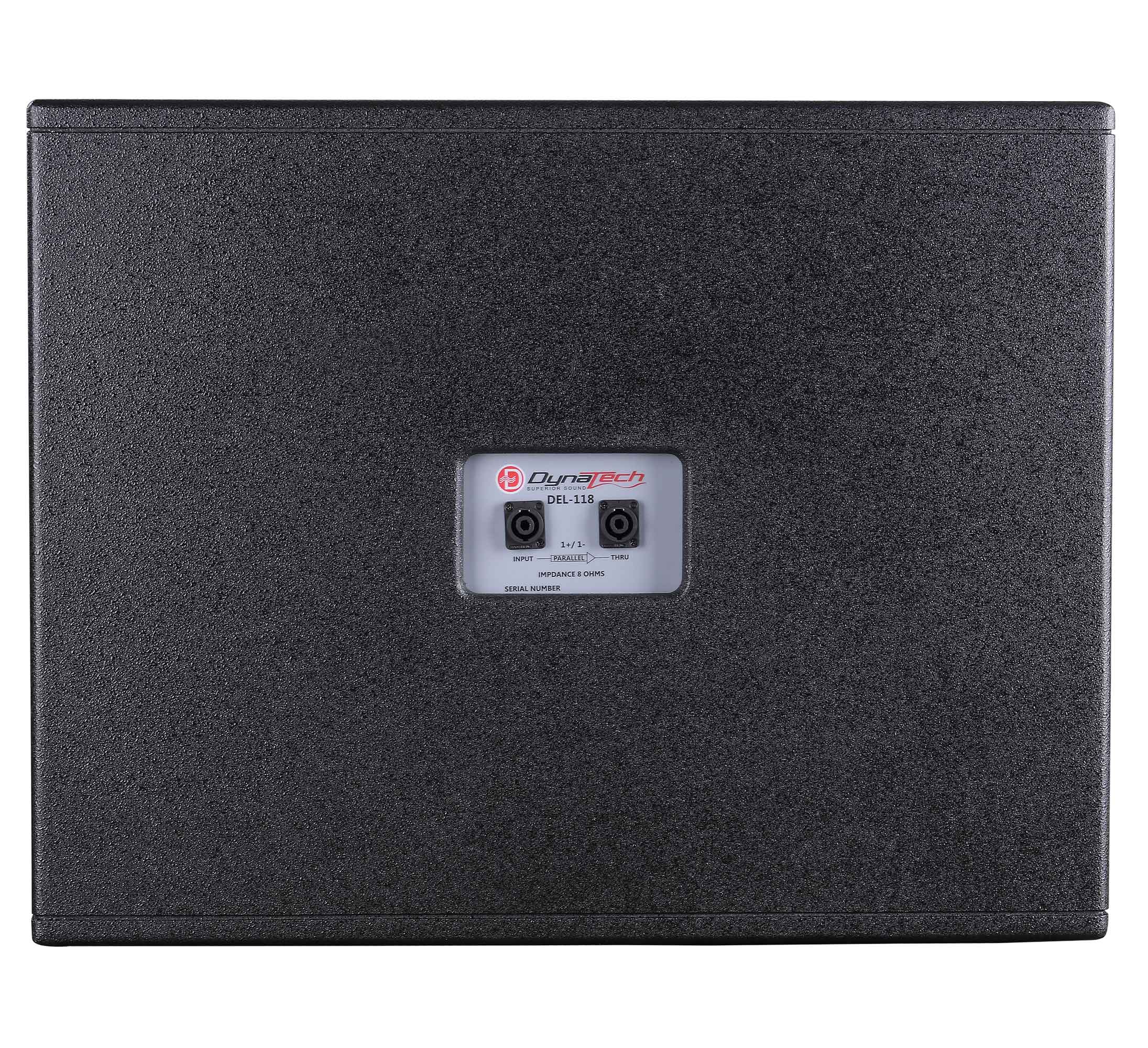

  Connector   2 X NL4R Speakon

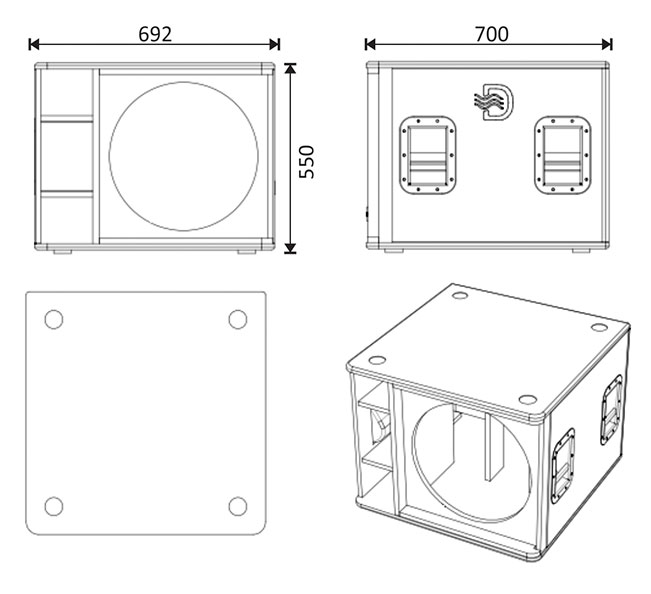

  Packaging Dimensions
  L X B X H (cms)		   77 X 76 X 64
  Net Weight   45 kgs
  Gross Weight   50 kgs

FEATURES

  • High SPL & Sensitivity
  • High Power Low Frequency Transducer
  • Powder Coated Grill
  • Passive Configuration
  • Cabinet Designed for FOH use

APPLICATIONS

  • Houses of Worship
  • Rehearsal Halls
  • Events
  • Clubs
  • Ballrooms
