Line Array Systems

Download Specification Sheet

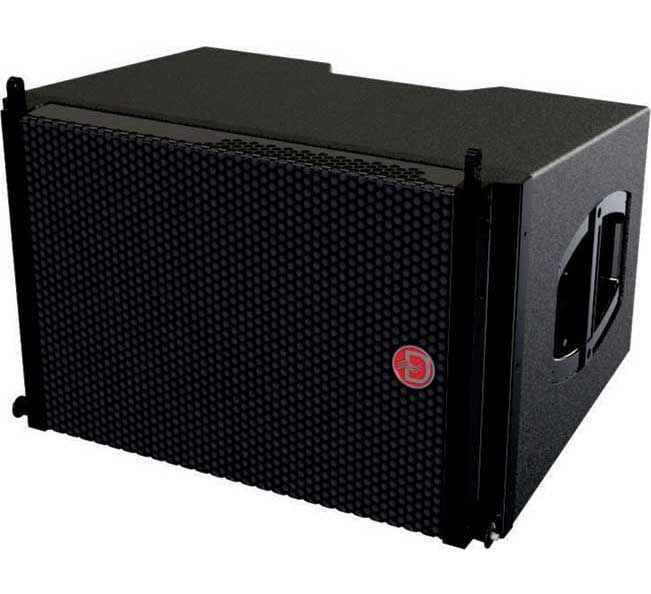

DLA-112

The medium to large sized line array loudspeakers are used in applications including sound reinforcement for houses of Worship, Events, Indoor Stadiums, Theme Parks, Multi-Functional Auditoriums, Schools and Transit Terminals etc. Excellent for live, rental and portable sound reinforcement applications. The DLA Series Line Array loudspeakers deliver extraordinary performance where high speech intelligibility and natural sounding music is required at unmatched value.

Download Specification Sheet

SPECIFICATIONS

  Rated Power   600W (RMS)
  Construction   18mm Multilayered
  Plywood
  LF Driver   1 X 12", 3" VC,
  Ferrite Magnet
  HF Driver   2 X 1.4" Exit, 1.75" VC,
  Ferrite Magnet
  Crossover   Bi-amped Switchable to
  1.8kHz Passive
  Frequency Response (-3dB)   55Hz - 18kHz
  Maximum Peak Output   134 dB
  Rated Impedance   8Ω
  Dispersion (H X V)   100° X 15°
  Connector   2 X NL4R Speakon
  Packaging Dimensions
  L X B X H (cms)		   80 X 76 X 80 (2 pcs.)
  Net Weight   29 kgs
  Gross Weight   94 kgs (2 pcs)

FEATURES

  • Biamped/ Passive System
  • Large Scale, 2-way Line Array System
  • Multiple Source Emulation
  • Very High Output SPL & Sensitivity
  • 2 X NL4R Connector

APPLICATIONS

  • Houses of Worship
  • Rehearsal Halls
  • Events
  • Clubs
  • Ballrooms
