BRT26 Dual 6” + Tweeter 8 ohm Premium Install Speaker

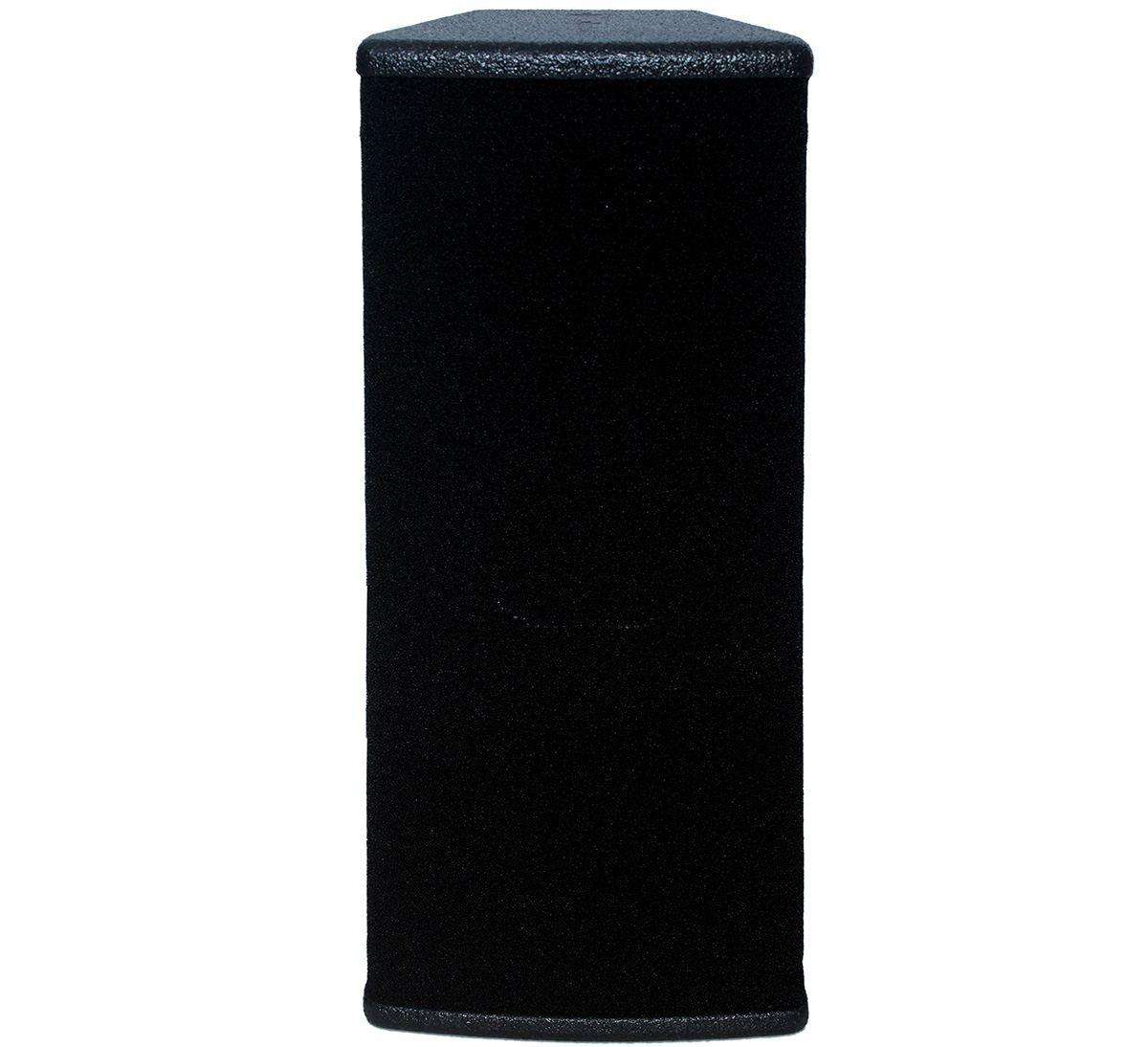

The BRT26 is a passive, compact trapezoidal, pointsource cabinet ideally suited to background music, infill for portable and fixed installation use. The discreet design with articulated foam front and acrylic textured paint finish and multiple integrated fixing points achieves a high class look suitable for any application. The long rectangular shape of the BRT26 makes it ideal for mounting on Columns.

With a 120° x 40° horn loaded tweeter, the internal passive crossover ensures a flat, usable frequency response of 77 Hz to 26 kHz (-10 dB) and a maximum SPL of 120 dB (peak).

Using two custom 6” drivers and a horn loaded dome tweeter, creating a level of clarity and detail which is rare in a cabinet of this size. Mounting options include integrated horizontal cradle fixing points and the rear pan and tilt bracket. Other fixings can be used with this cabinet such as the small wall bracket and pan and tilt pole mount adaptor.

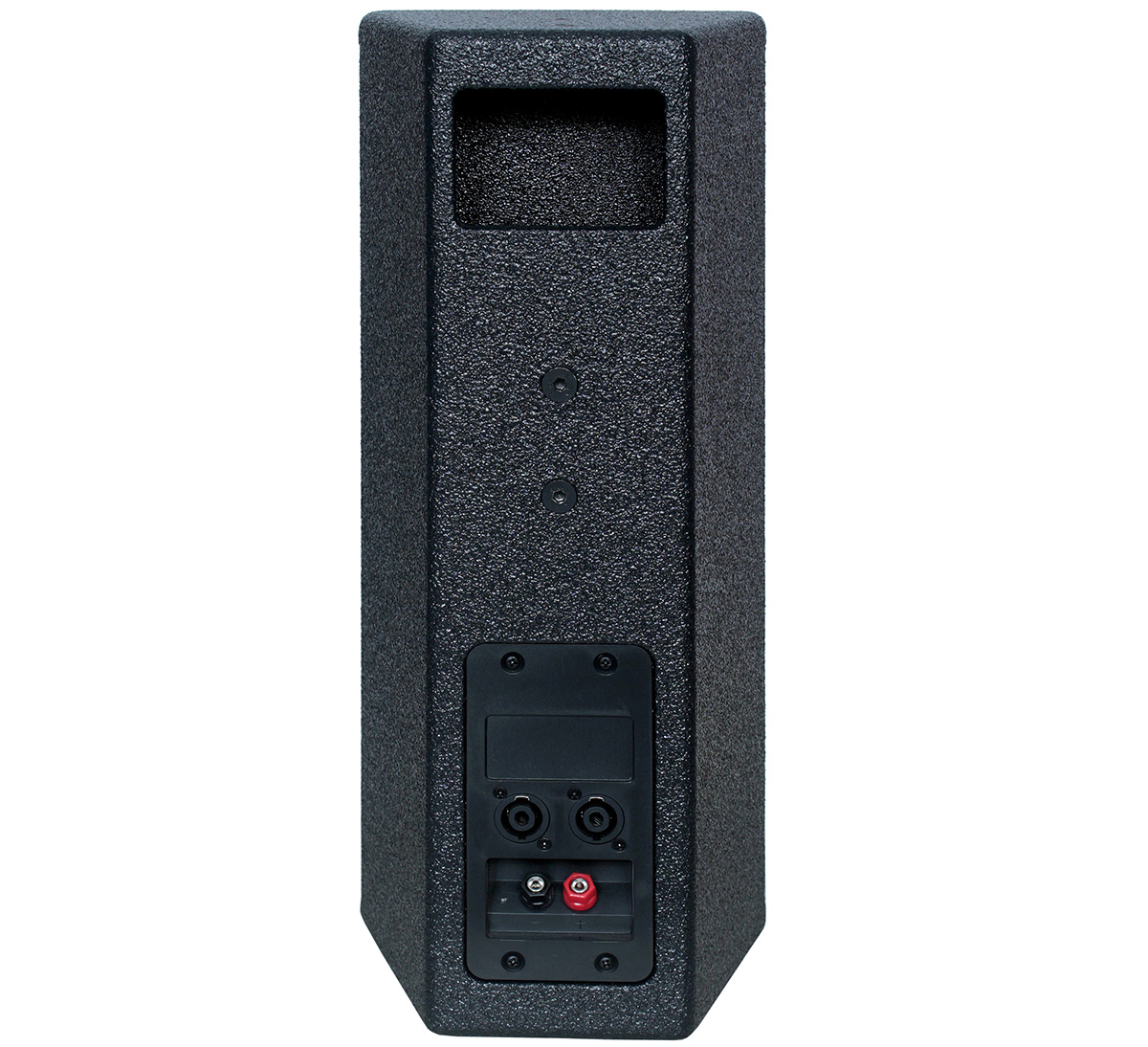

The rear connector plate has two binding post connections & two 4 pin speakON® connectors fitted as standard, one input and one link. The speakON® connectors are wired on pins +1-1, with pass through of pins +2-2.

SPECIFICATIONS

  Design   Mid-high cabinet, Reflex tuning
  Frequency Response
  (+/-3 dB)
  90 Hz - 24 kHz
  Dispersion   120° x 40°
  System Sensitivity
  (2.83V / 1m)
  93 dB
  Max SPL   114 dB cont / 120 dB peak
  Impedance   8 Ohm, minimum 6.7 @ 286 Hz
  Max. Power Handling
  (AES)
  500 Watts (program)
  1000 Watts (peak 10 ms)
  Power Handling (AES)   250 Watts (continuous)
  Components   2 x 6” Low Frequency Driver,
  1 x Horn loaded Tweeter
  Connectors   2 x 4 pole speakON® Connectors,
  2 x Binding Post Connectors
  Crossover   Passive - 3.5 kHz,
  Active - * LPF - / HPF - 110 Hz
  Colour   Black
  Dimensions (H x W x D)   460 x 190 x 188 mm
  Weight   6.6 kg
  Rigging   6 x M8 mounting points for installation
  brackets / cradle or truss adaptor

FEATURES

  • Column Design
  • High grade components
  • Defined and accurate 120° x 40° dispersion
  • Extended 77 Hz frequency response

APPLICATIONS

  • Performing Arts, Sports, Educational Facilities
  • Houses of Worship
  • Multi Media, Retail, Spaces
  • Presentation Suites
  • Portable Audio-Visual Systems
