High Performance Full Range Passive Systems

Download Specification Sheet

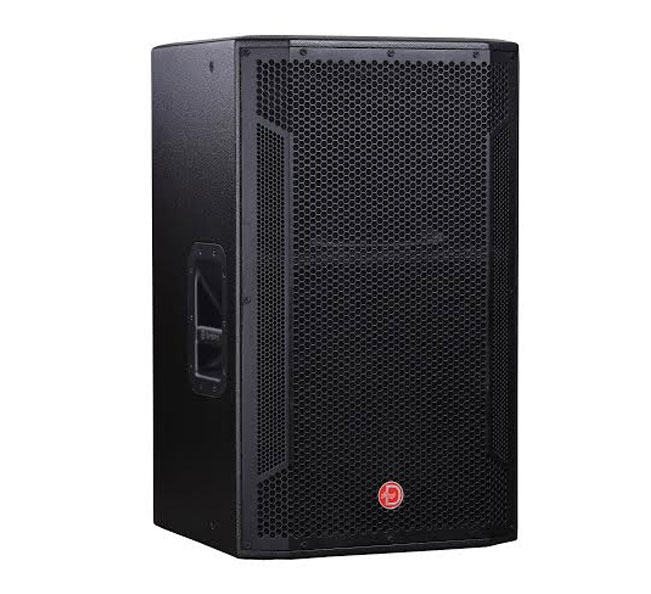

DVX-125

Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The DVX Series deliver extraordinary performance at unmatched value.

Download Specification Sheet

SPECIFICATIONS

  Rated Power   600W (RMS)
  Construction   18mm Multilayered Plywood
  LF Driver   1 X 15", 4" VC,
  Ferrite Magnet
  HF Driver   1 X 1.4" Exit, 3" VC,
  Ferrite Magnet
  Crossover   1.8 kHz

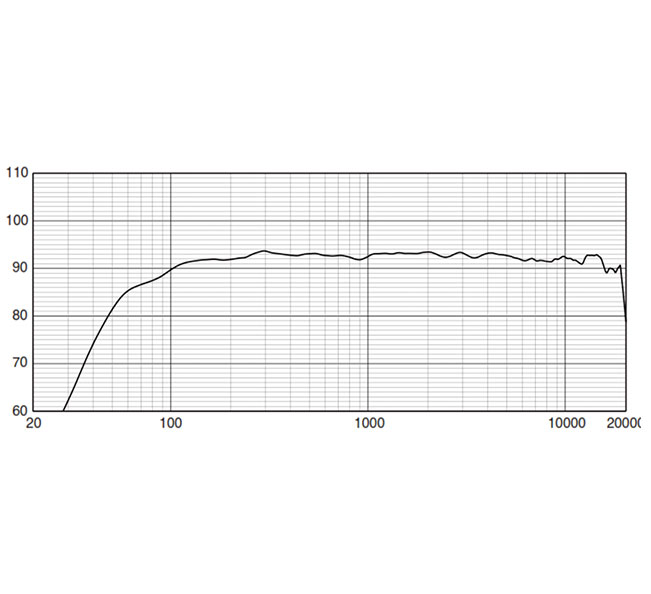

  Frequency Response (-3dB)   50Hz - 20kHz
  Maximum Peak Output   136 dB
  Rated Impedance   8Ω
  Dispersion (H X V)   60° X 40°

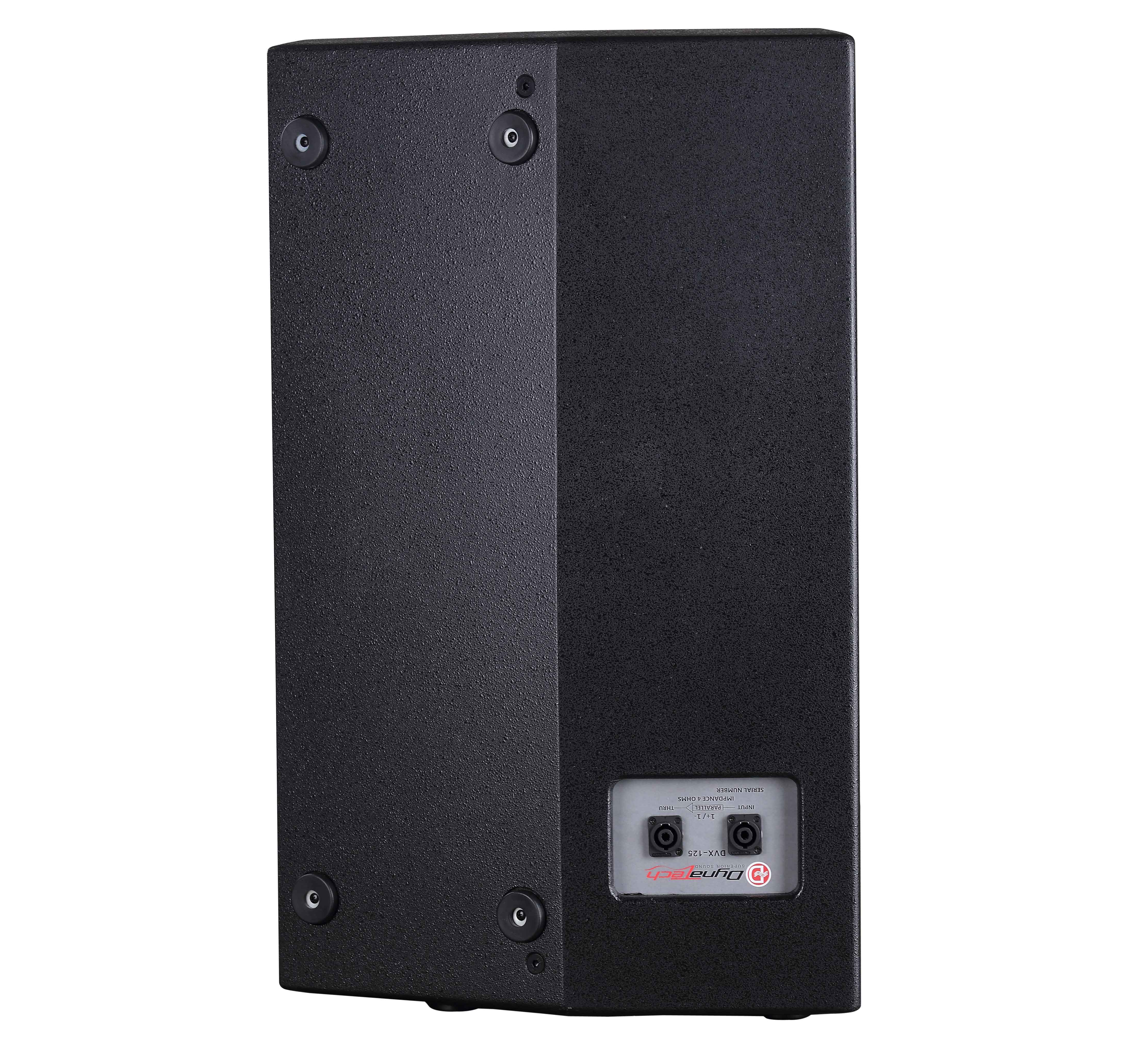

  Connector   2 X NL4R Speakon

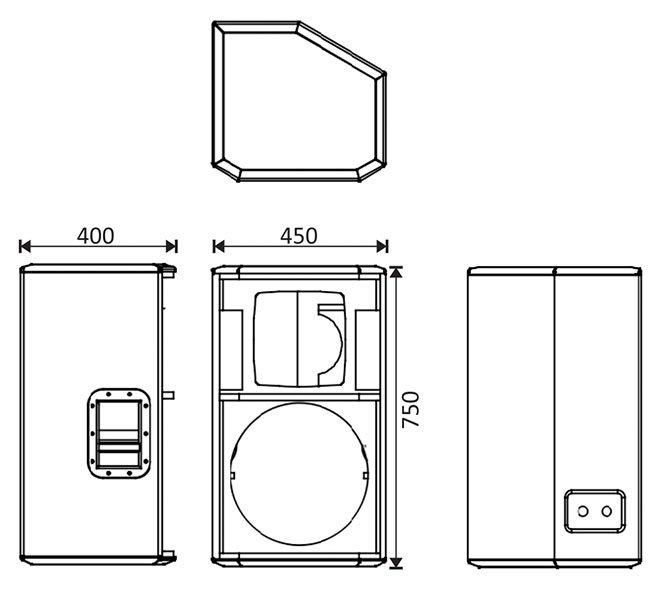

  Packaging Dimensions
  L X B X H (cms)		   52 X 47 X 85
  Net Weight   30 kgs
  Gross Weight   32 kgs

FEATURES

  • High Output SPL & Sensitivity
  • High Power Low Frequency Transducer
  • Multi Purpose Cabinet Design
  • Use as a Main System with or without Sub Speaker

APPLICATIONS

  • Houses of Worship
  • Rehearsal Halls
  • Events
  • Clubs
  • Ballrooms
