Dynatech Systems has always been dedicated in meeting the needs of sound reinforcement professionals with some of the best products available. Dynaytech’s SD-18EL are one of the Best Bass Speakers appropriate for applications as diverse as scoop bins, conventional reflex cabinets and horn loaded systems The SD Series Bass loudspeakers deliver extraordinary performance where high speech intelligibility and natural sounding music is required at unmatched value.

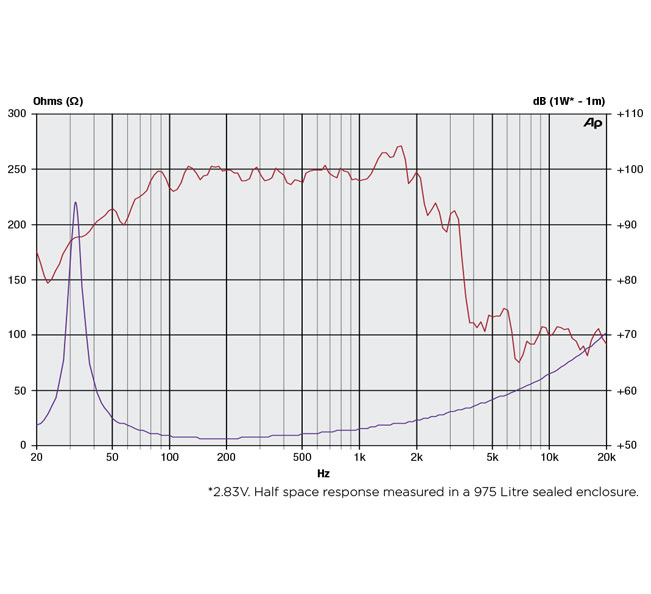

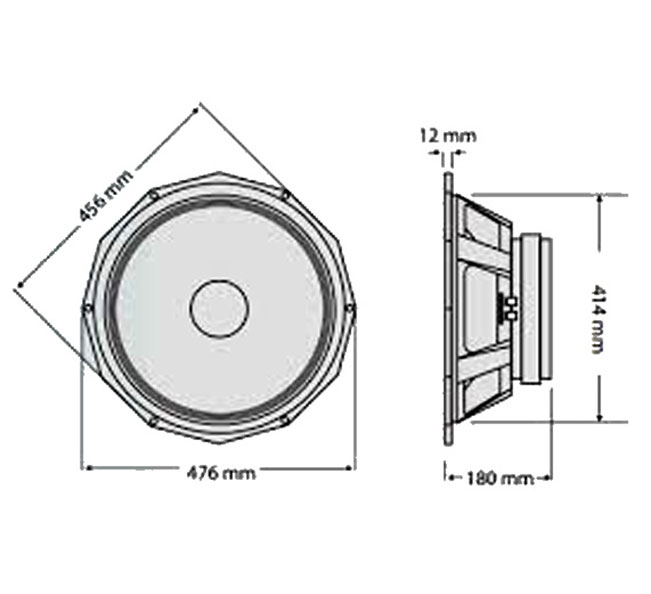

Dynatech SD-18EL (Best Bass Speaker) is a very high output low frequency transducer. The 18 inch (460mm) diameter piston will produce extremely high sound pressure levels at very low frequencies and is ideal for high level deep bass and sub-woofer response in both live sound and recorded music venues. The operating range is 30Hz to 200Hz. The transducer uses high energy neodymium magnetics to achieve a very high acoustic output to weight ratio.
The SD-18EL employs a large 5 inch (127mm) diameter voice coil that provides an AES rated 1800 watts of continuous power handling and a full 6800 watts of peak rated power handling when sufficient amplifier headroom is available. It is recommended that the transducer be loaded into a properly designed vented enclosure and suitable active high pass filtering be employed if extremely high power levels are expected at low frequencies. The SD-18EL utilizes Dynatech's Auto Balanced Cooling (ABC) technology to not only improve transducer power handling and reliability but to also increase power compression performance by carefully balancing and directing airflow to critical areas.
The voice coil design is an inside/outside geometry with Dynatech's square wire technology to improve conversion efficiency and provide a very large cross-sectional area for superior cooling.
System linearity is achieved by employing magnetic flux demodulation devices in the structure to increase fidelity and sonic accuracy. The system suspension has been designed specifically for high linear displacement and extended low frequency response. The double spider design insures very high displacement and linear response while maintaining excellent control. The cone has been treated with a conformal coating designed to provide additional mechanical damping and moisture resistance.
The transducer chassis is a die cast aluminum design that insures a very high degree of structural integrity. All the above integrated features makes SD-18EL one of the best bass loudspeakers available in Dynatech’s loudspeaker range.
