PX-6000 II


Dynatech PX-6000 II delivers 1400 Watts to 6000 Watts of power in two to three rack spaces. High current transistors combined with low noise input amplifiers enable the PX-6000 II to deliver exceptional power. Built around robust and advanced toroidal transformers, they deliver clean power on demand. The advanced protection circuitry guards against short circuit and open circuit, and also protects against ultrasonic and RF interference. A high current power supply increase reliability and performance. Other features include center-dented gain controls, input peak limiter, and fast recovery to ensure low distortion. The variable speed Fans effectively cool the amp and protect against overheating. Input is through XLR connectors, While you can use Speakon-type or binding post connectors for output. The PX-6000 II has sub woofer outputs with a selectable low pass filter at variable frequency upto 200Hz. Dynatech PX-6000 II is specially designed for professionals who value high power, audio clarity, reliability and lasting performance.

SPECIFICATIONS

  MODELSPECIFICATIONS
  PX-6000 II
  RMS Output Power (Per Channel, 8Ω)
1400 W
  RMS Output Power (Per Channel, 4Ω)
2000 W
  RMS Output Power (Per Channel, 2Ω)
3000 W
  Rated Power (Bridge 8Ω)
4000 W
  Rated Power (Bridge 4Ω)
6000 W
  Input Sensitivity
0.775V, 1 V, 1.4V Selectable
  S/N Ratio (A Weight)
>105 dB
  Frequenct Response (+0/-0.25dB)
20 Hz to 20 kHz
  Class
H
  Damping Factor
>1000 : 1
  THD (10% Rated Power)
0.05%
  Input Connector
2 XLR
  Input Impedance
20 KΩ Balanced, 10 KΩ Unbalanced
  Output Connectors
Speakon + Binding Post
  Cooling
2 X Fan Airflow front to back
  Power Supply
230 V AC / 50 Hz
  Dimension HxWxD (mm)
133 X 483 X 498
  Net Weight (1 piece/pack)
34 Kgs
  Gross Weight
38 Kgs

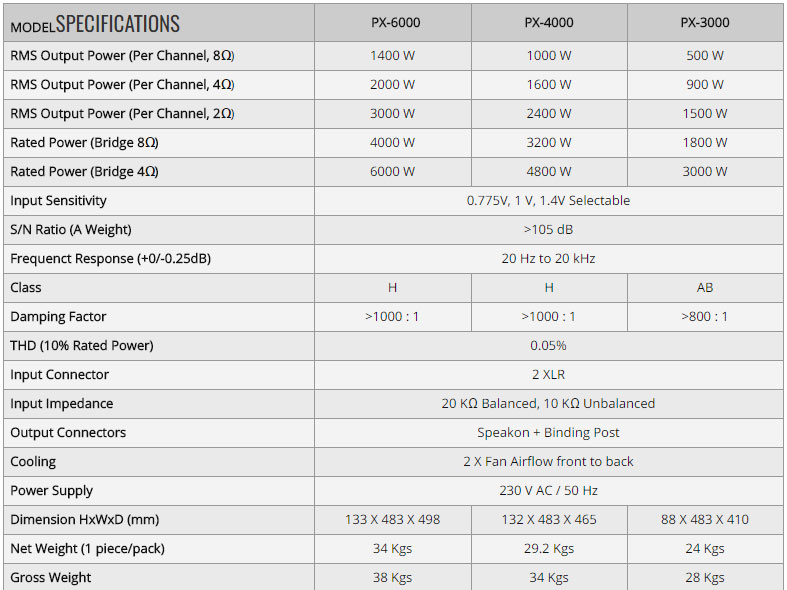

SPECIFICATIONS

PX Series


Dynatech PX Series Power Amplifiers deliver 500Watts to 5600Watts of power in two to three rack spaces. High current transistors combined with low noise input amplifiers enable the PX series to deliver exceptional power. Built around robust and advanced toroidal transformers, they deliver clean power on demand. The advanced protection circuitry guards against short circuit and open circuit, and also protects against ultrasonic and RF interference. A high current power supply increase reliability and performance. Other features include center-dented gain controls, input peak limiter, and fast recovery to ensure low distortion. The variable speed Fans effectively cool the amp and protect against overheating. Input is through XLR connectors, While you can use Speakon-type or binding post connectors for output. The PX Series Power Amplifiers have sub woofer outputs with a selectable low pass filter at variable frequency upto 200Hz. Dynatech V power Amplifiers are specially designed for professionals who value high power, audio clarity, reliability and lasting performance.
