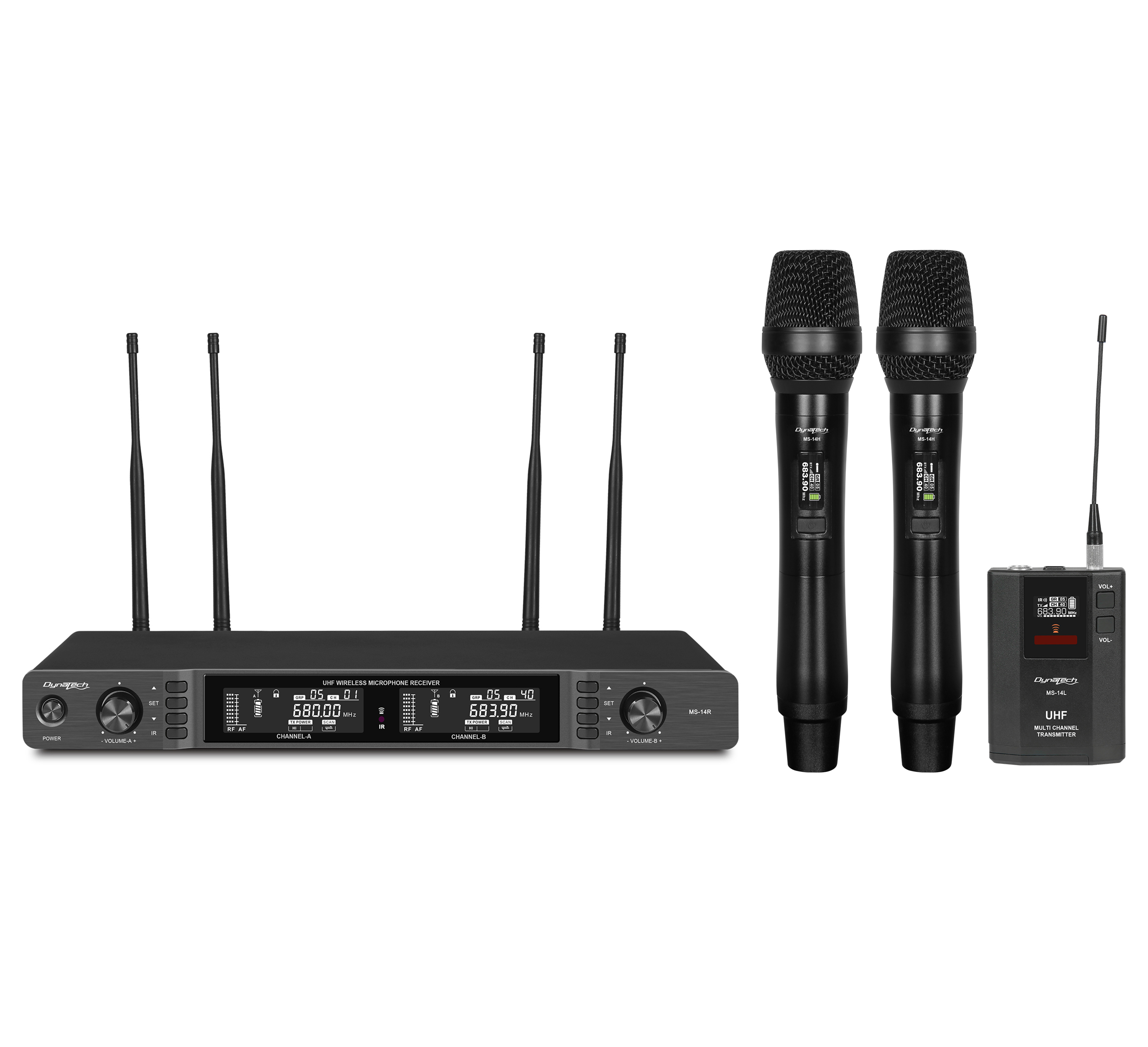

MS-14 Wireless Microphone System

The Dynatech MS-14 Wireless microphone system is very easy to install and convenient to use, the first choice for singers. This model adopts intelligent cryptographic hardware, to achieve unique sound and RF performance. Frequencies group, colorful LED display and humanized menu make it easy for single or multi-sets installation.

SPECIFICATIONS

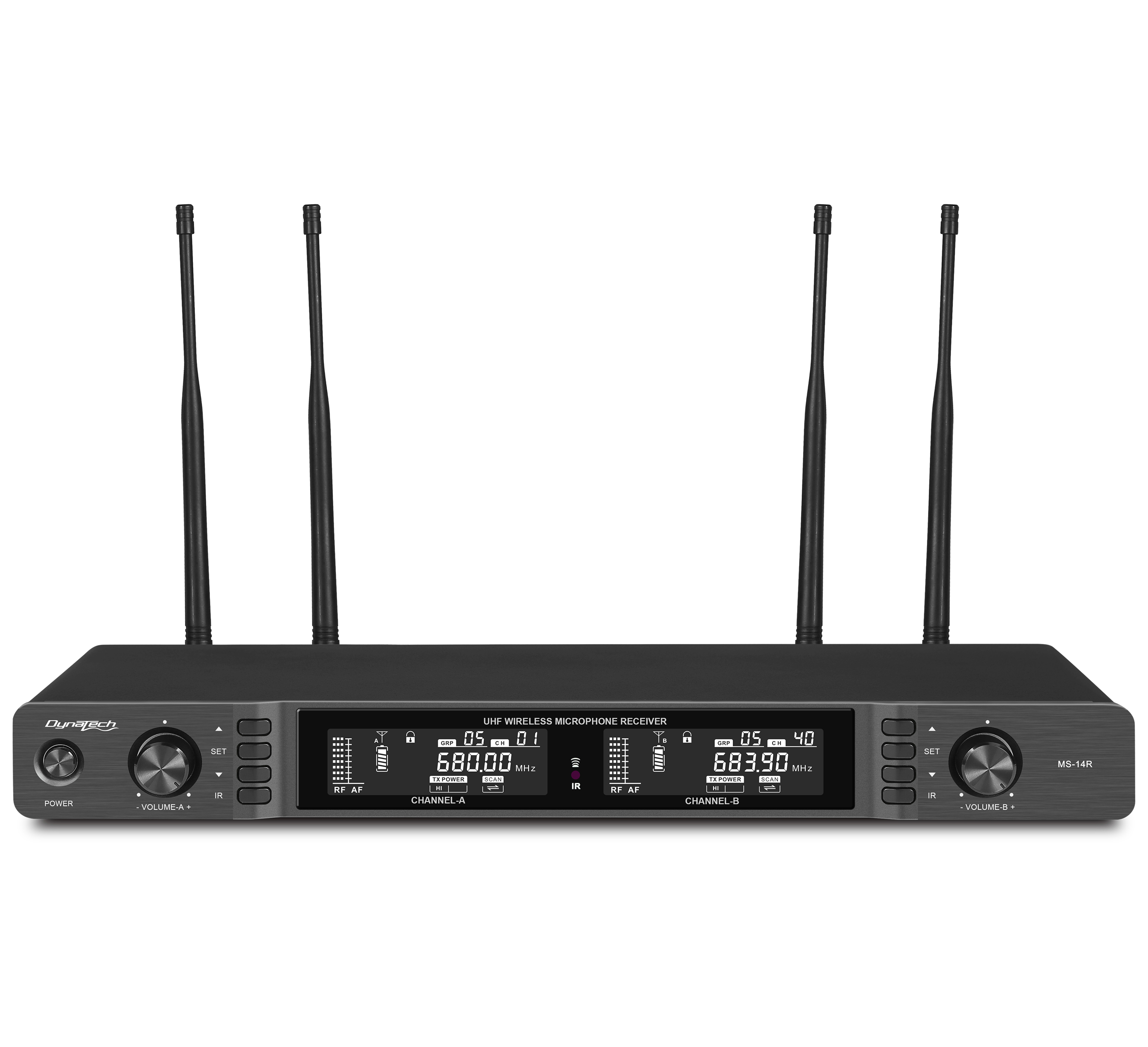

Receiver

Carrier Frequency

UHF640-690MHz

Bandwidth

50MHz

Dynamic Range

96dB

Distortion

<0.1%

Frequency Response

30-20KHz/±2dB

Signal/Noise Ratio

96dB

Sensitivity

-95dBm

Power Supply

DC12V 1A

Audio Output

1×6.3mm, 2×XLR balance
output

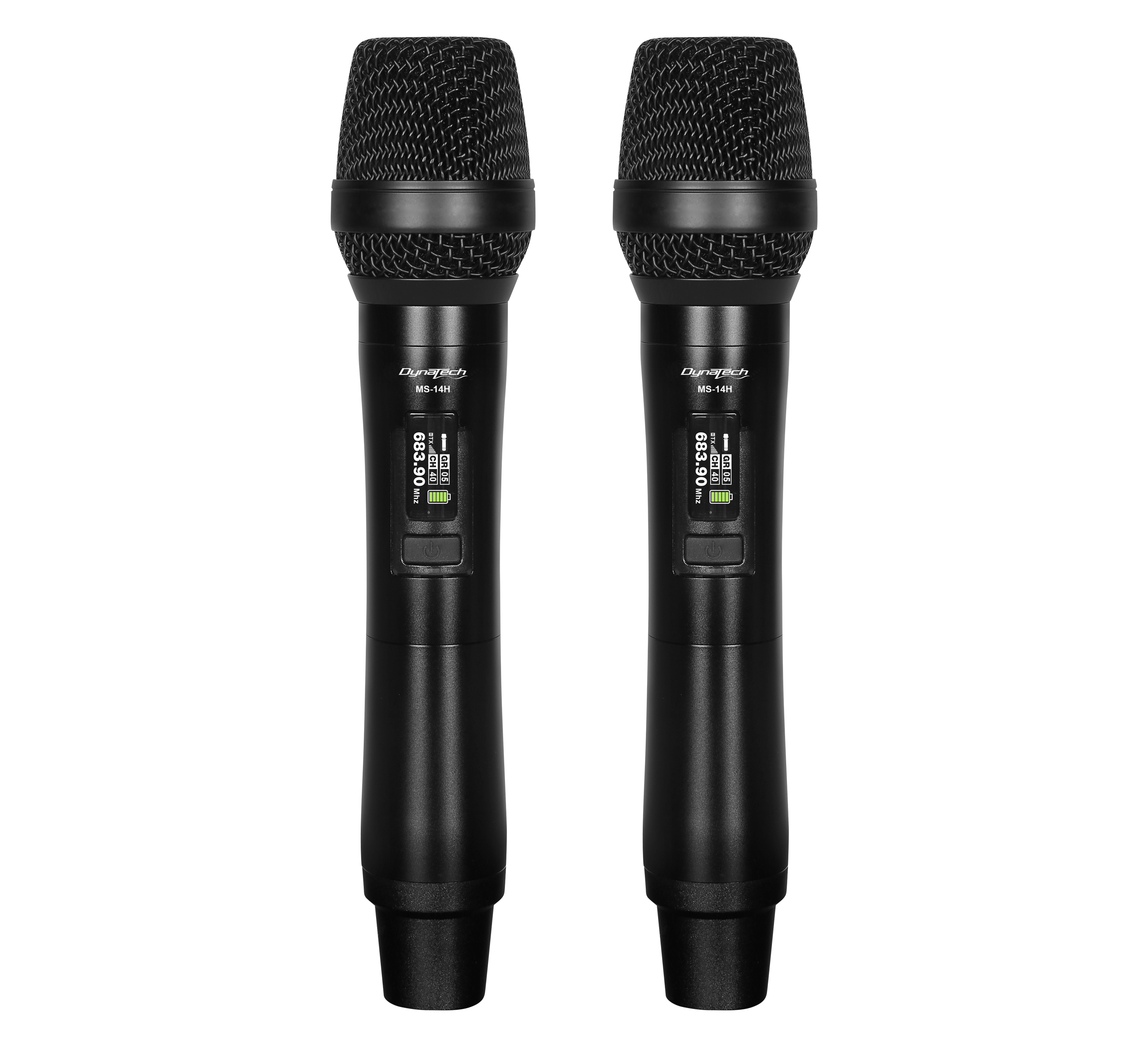

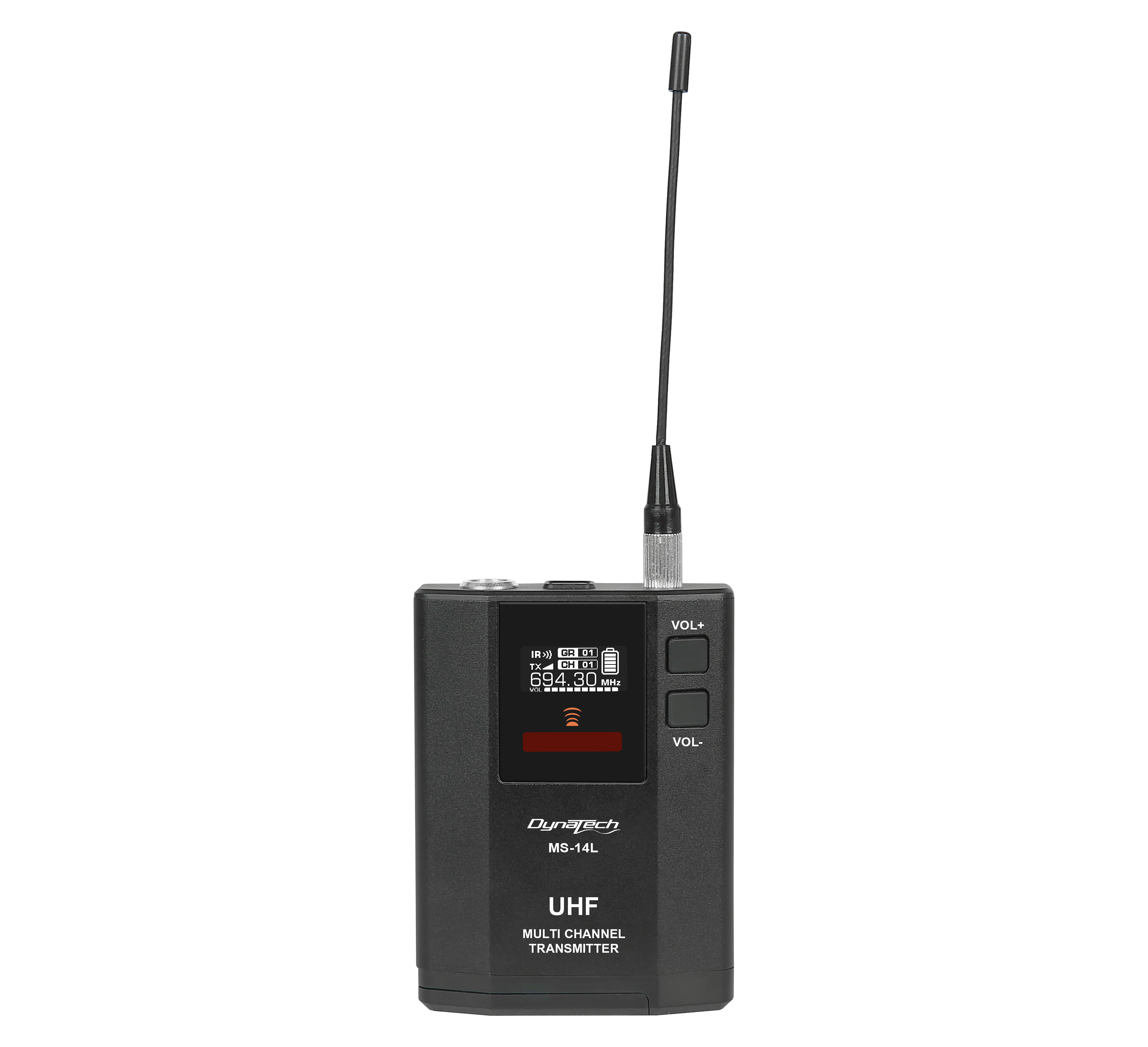

Handheld & Bodypack Microphone

Carrier Frequency

UHF640-690MHz

Bandwidth

50MHz

Frequency Switch

IR SYNC

Output Power

10mW-30mW (depends on
frequency band)

Harmonic Radiation

<-50 dBc

Battery

2×1.5V AA battery

Battery Life

>5h

FEATURES

Optional UHF band 640-690MHz.

Unique digital 16 bit ID pilot technology, no crosstalk
disturbance even in the same frequency.

LCD display on receiver show frequency and battery
condition.

Adopt Single chip design, with true diversity function
to avoid dead point.

Auto frequency scanning and user set frequency
function.

Suitable for stages, ballrooms, conference rooms,
speech and home entertainment.

Ideal distance: longer than 80M in open space.
