UFX Series Analogue Mixers

Download Manual

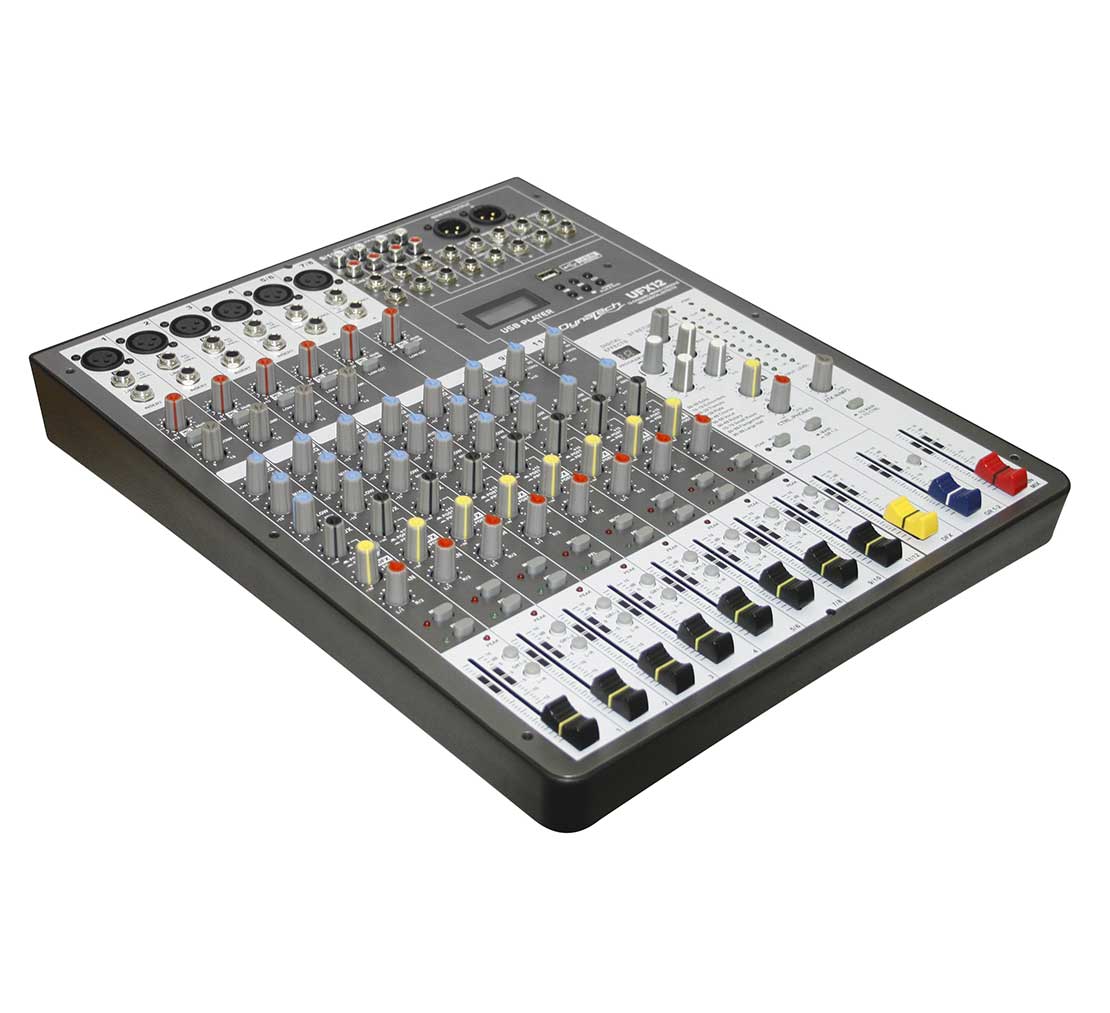

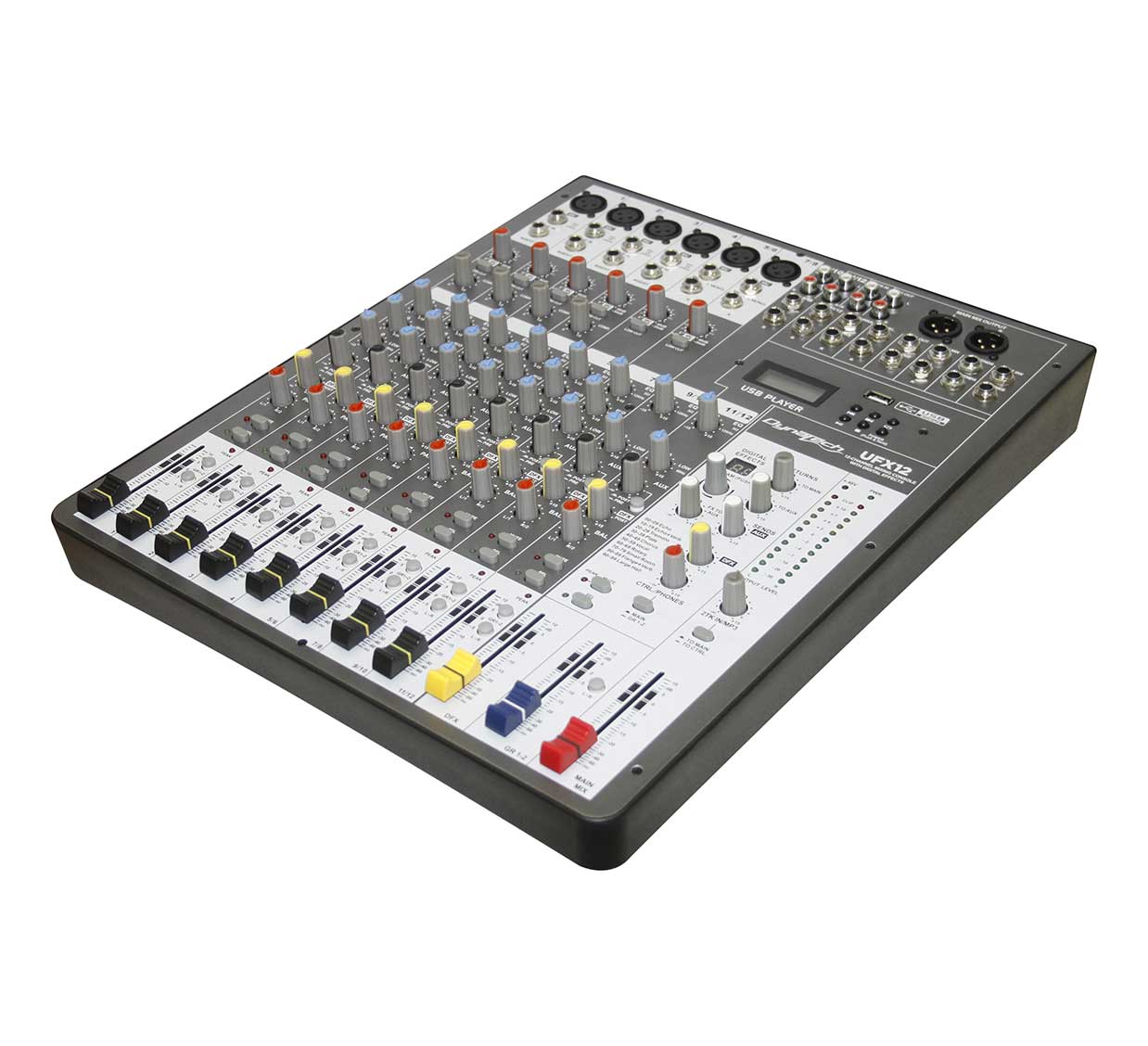

UFX12 Analogue Mixer

UFX12 is a professional compact mixer to give you great quality and better reliability than ever before. You will get smooth, accurate more natural and open sound from this apparatus. It is ideal for gigs, recording and fixed PA installations. The UFX12 Mixing Console is packed with features that cannot be found in other consoles of its size: 4 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels and each of them is provided with a 3-band equalizer for HI, MID and LOW controls, as well as 2 auxiliary control; highly accurate 12- segment bar graph meters and 2-track inputs assignable to main mix, control room/phones Outputs.

Download Manual

SPECIFICATIONS

  Mono Channels
  Microphone Input
  XLR with balanced
  Frequency Response
  10Hz to 55KHz,+/-3dB
  Distortion(THD+N)
  <0.03% at +0dB, 22Hz~22KHz A-weighted
  Gain Range
  0dB to 50dB
  Max Input
  +15dB
  LOW CUT
  75Hz
  SNR
  <-100dBr A-weighted
  Phantom Power
  +48V with switch control
  Line Input
  1/4' TRS with balanced
  Sensitivity Range
  +15dB~ -35dB
  COMPRESSOR
  GAIN: 0~9dB
  THRESHOLD: 20dB---> ↓5dB
  Stereo Input Channels
  Mic Input
  XLR with balanced
  LOW CUT
  75Hz
  Line Input
  1/4' TRS or TRS/RCA with un-balanced
  Frequency Response
  10Hz to 55KHz, +/-3dB
  Distortion(THD+N)
  <0.03% at +0dB, 22Hz~22KHz A-weighted
  Sensitivity Range
  -20dBu~ +20dBu
  SNR
  <-100dBr A-weighted
  Channels EQ
  High
  +/-15dB@12KHz
  Mid   +/-15dB@2.5KHz
  Low   +/-15dB@80Hz
  2-TACK IN
  TAPE IN   RCA jack
  Frequency Response   10Hz to 55KHz, +/-3dB
  Distortion(THD+N)   <0.03% at +0dB, 22Hz~22KHz A-weighted
  Gain Range   OFF to 15dB

FEATURES

  • Ultra-low noise discrete MIC Preamps
          with +48V Phantom Power
  • 4 MIC Input Channels with XLRs and
          balanced Line Inputs
  • 4 Compressors control and 4 Insert I/O
  • Low Cut for each MIC Input
  • 3-band EQ & Peak LEDs on each MIC channel
  • 2-band EQ and Peak LEDs on Stereo channels
  • Mute and PFL function for each channel
  • Smooth 60mm Faders for level control
  • 2-Track Input assignable to Main Mix or
          Control Room / Headphone Outputs
  • Balanced XLR & TRS outputs for Main Mix
  • Built in 24-bit DSP effect with 100 presets
  • Assembled MP3 player
  • Internal switch-mode power supply for
          maximum flexibility 100-240V

UFX12 Analogue Mixer

UFX12 is a professional compact mixer to give you great quality and better reliability than ever before. You will get smooth, accurate more natural and open sound from this apparatus It is ideal for gigs, recording and fixed PA installations. The UFX12 Mixing Console is packed with features that cannot be found in other consoles of its size: 4 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels and each of them is provided with a 3-band equalizer for HI, MID and LOW controls, as well as 2 auxiliary control; highly accurate 12- segment bar graph meters and 2-track inputs assignable to main mix, control room/phones Outputs.
