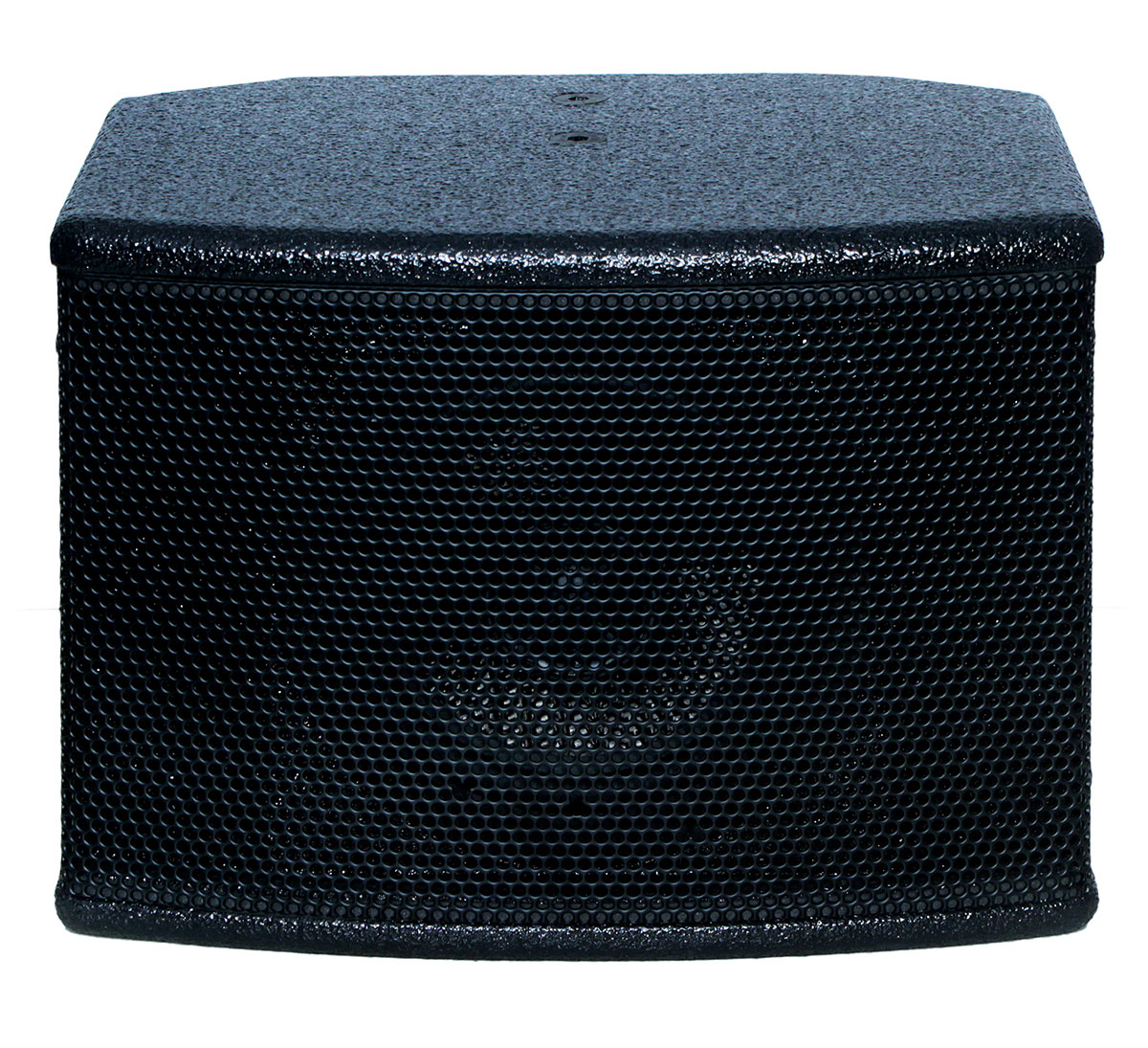

KS1 Single 5.75”, 8 Ohm Coaxial Mid-High Cabinet


The KS1 is designed with a small footprint, best suited for commercial installation projects that require audio quality with minimal visual impact. The extended bass response adds extra functionality without the need of separate subwoofers.

The KS1 has a coaxial driver design which achieves a 100° x 100° conical dispersion, the internal passive crossover ensures a flat, usable frequency response of 90 Hz to 20 kHz and a maximum SPL of 108 dB (peak).

The discreet look makes them fit any style of décor. The 1 x 5.75” coaxial mid-high driver + dome tweeter creates a level of clarity and detail which is rare in a cabinet of this size.

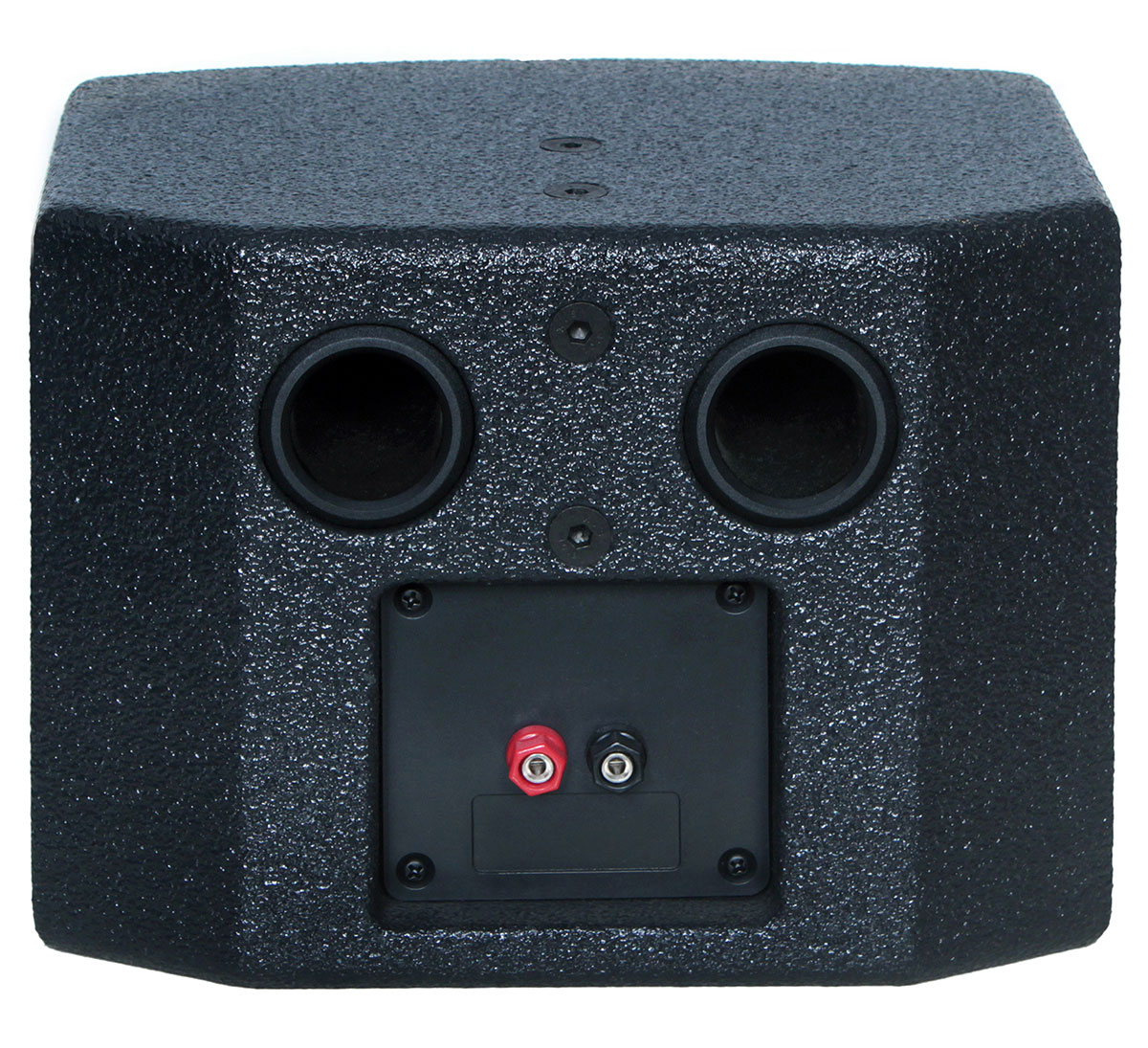

Mounting options include integrated horizontal cradle fixing points and the rear pan and tilt bracket. Other fixings can be used with this cabinet such as the small wall bracket and pan and tilt pole mount adaptor. The rear connector plate has binding post connections fitted as standard.

SPECIFICATIONS

  Design   Mid-high cabinet, Reflex tuning
  Frequency Response
  (+/-3 dB)
  90 Hz - 20 kHz
  Dispersion   100° x 100°
  System Sensitivity
  (2.83V / 1m)
  85 dB
  Max SPL   102 dB cont / 108 dB peak
  Impedance   8 Ohm
  Max. Power Handling
  (AES)
  120 Watts (program)
  240 Watts (peak 10 ms)
  Power Handling (AES)   60 Watts (continuous)
  Components   1 x 5.75” coaxial mid-high driver
   + dome tweeter
  Connectors   2 x Binding Post Connectors
  Crossover   Passive - 3.5 kHz,
  Active - * LPF - / HPF - 110 Hz
  Colour   Black
  Dimensions (H x W x D)   190 x 260 x 200 mm
  Weight   4.1 kg
  Rigging   8 x mounting points for installation
  brackets, cradle

FEATURES

  • Compact coaxial
  • High grade components
  • Defined and accurate 100° x 100° dispersion
  • Extended 90 Hz frequency response

APPLICATIONS

  • Performing Arts, Sports, Educational Facilities
  • Houses of Worship
  • Multi Media, Retail, Spaces
  • Presentation Suites
  • Portable Audio-Visual Systems
