Active Sub Woofers

Download Specification Sheet

SUB-15D

Portable and installed PA loudspeaker used in application including sound reinforcement in Houses of Ballrooms etc. The Sub series delivers extraordinary performance at unmatched value.

Download Specification Sheet

SPECIFICATIONS

  Rated Power   600W (RMS)
  Construction   18mm Multilayered Plywood

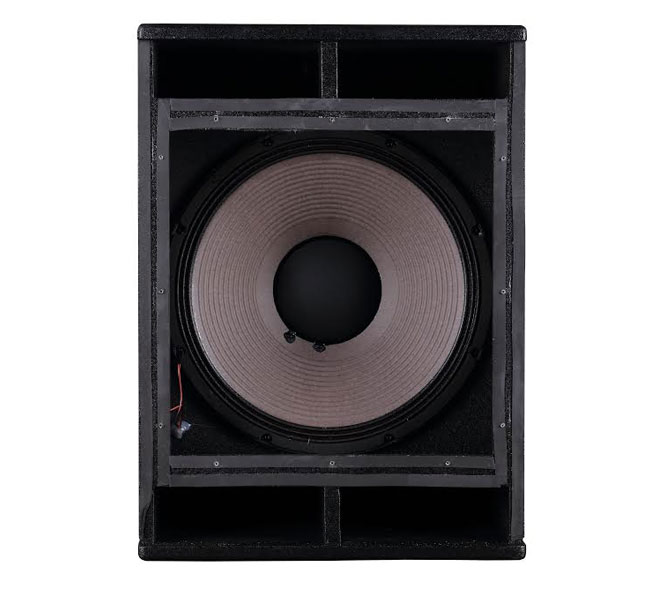

  Transducers   1 X 15", 4" VC,
  Ferrite Magnet

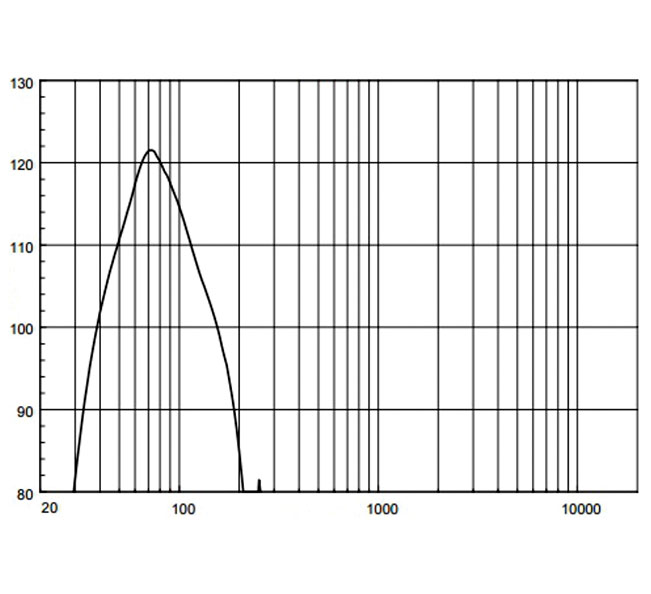

  Frequency Response (-3dB)   40Hz - 400 Hz
  Maximum Peak Output   130 dB
  Crossover Frequency   80Hz - 200Hz Adjustable
  Connector   2 X XLR; RCA

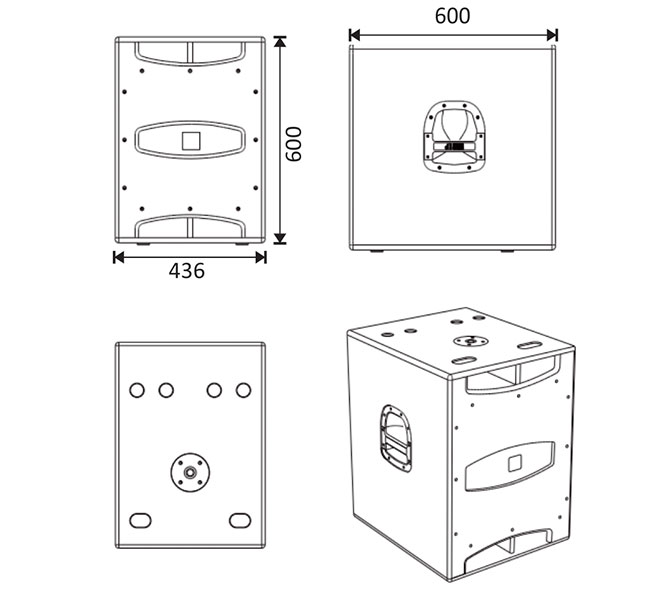

  Packaging Dimensions
  L X B X H (cms)		   64 X 49 X 64
  Net Weight   49 kgs
  Gross Weight   52 kgs

FEATURES

  • High Output SPL & Sensitivity
  • High Power Low Frequency Transducer

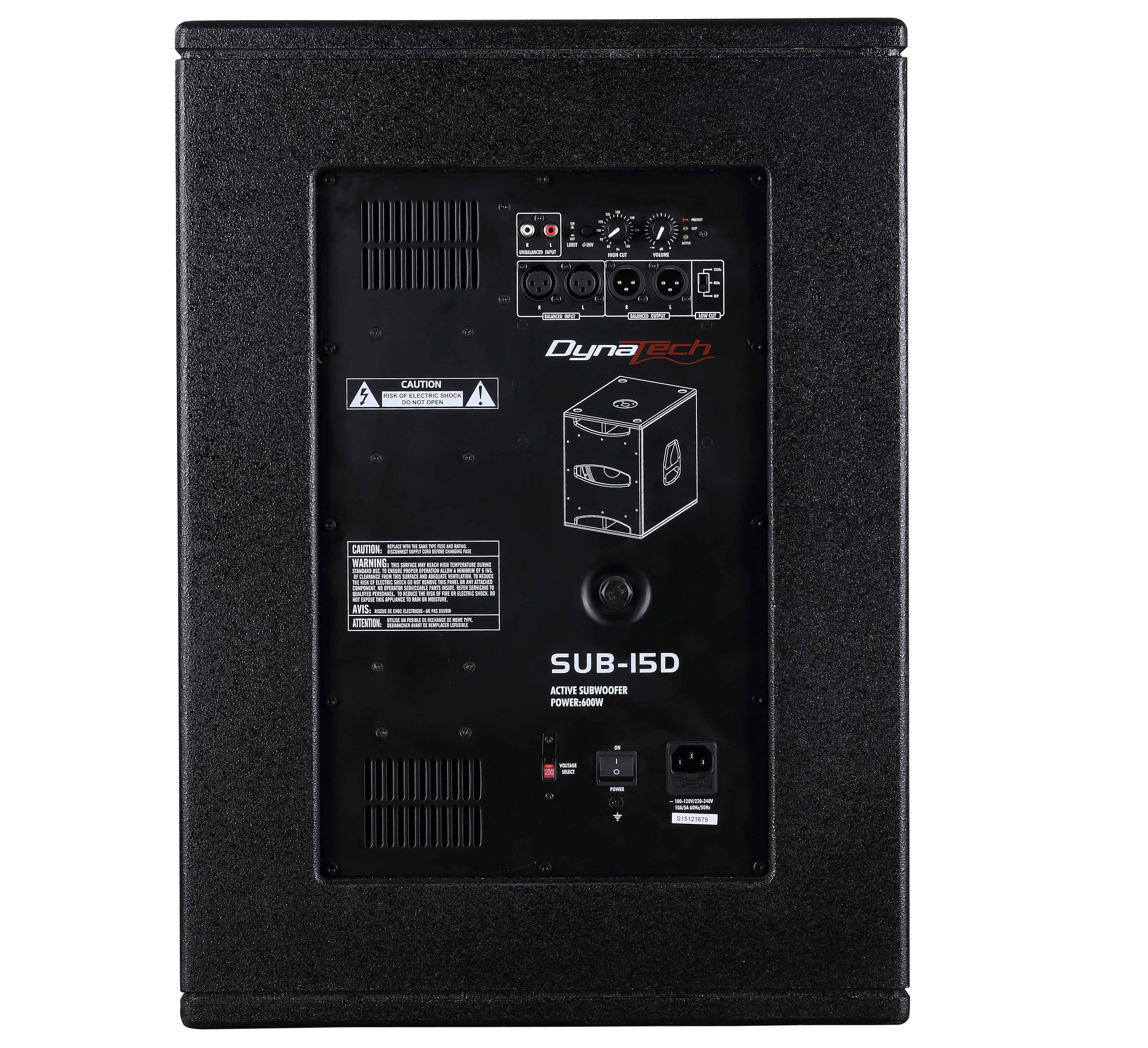

  • Built in Power Amplifier Module
  • Master Volume Control
  • Phase Switch

APPLICATIONS

  • Houses of Worship
  • Rehearsal Halls
  • Events
  • Clubs
  • Ballrooms
