UFX Series Analogue Mixers

Download Manual

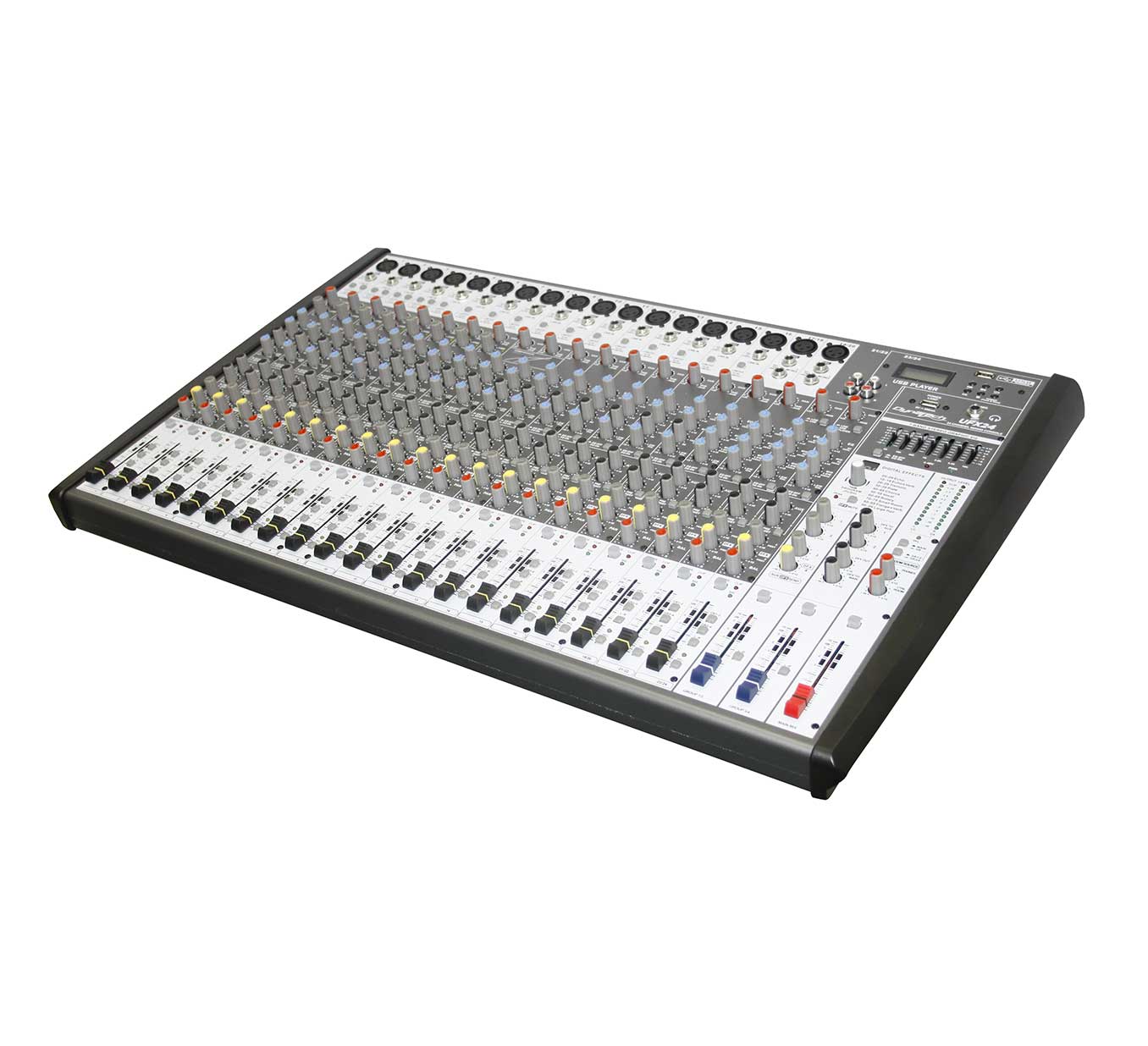

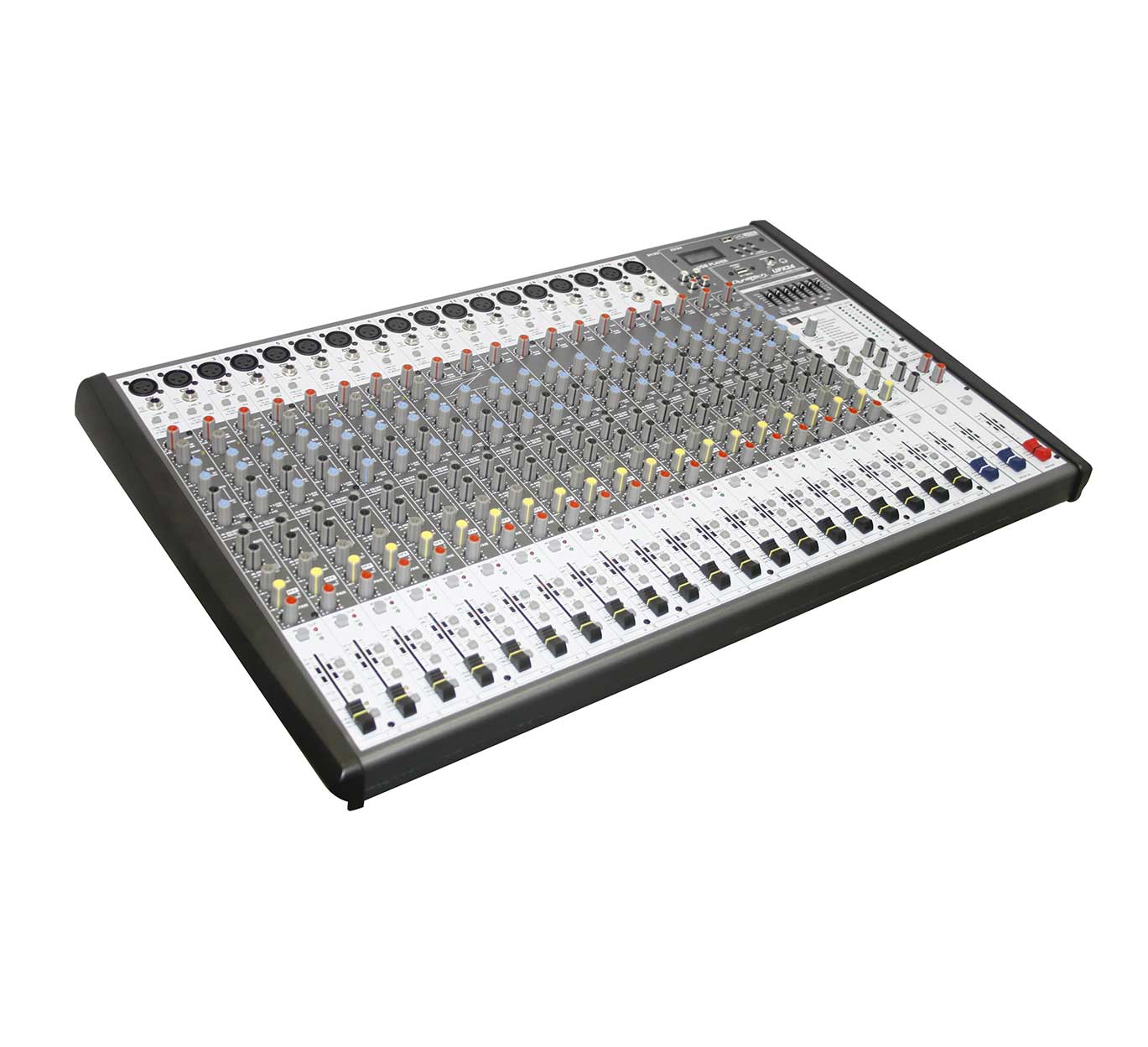

UFX24 Analogue Mixer

UFX24 is a professional compact mixer to give you great quality and better reliability than ever before. You will get smooth, accurate more natural and open sound from this apparatus. It is ideal for gigs, recording and fixed PA installations. The UFX12 Mixing Console is packed with features that cannot be found in other consoles of its size: 8/16 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels, 3-band EQ with sweepable MID on mono inputs;4-band EQ on stereo inputs, 4 auxiliary control, highly accurate 12-segment bar graph meters and 2-track inputs assignable to main mix, control room/phone output.

Download Manual

SPECIFICATIONS

  Mono Channels
  Microphone Input
  XLR with balanced
  Frequency Response
  10Hz to 55KHz,+/-3dB
  Distortion(THD+N)
  <0.03% at +0dB, 22Hz~22KHz A-weighted
  Gain Range
  0dB to 50dB
  Max Input
  +21dB
  LOW CUT
  75Hz
  SNR
  <-100dBr A-weighted
  Phantom Power
  +48V with switch control
  Sensitivity Range
  +20dB~ -30dB
  COMPRESSOR
  GAIN: 0~9dB
  THRESHOLD: 20dB---> ↓5dB
  Stereo Input Channels
  Mic Input
  XLR with balanced
  Line Input
  1/4' TRS balanced
  Frequency Response
  10Hz to 55KHz, +/-3dB
  Distortion(THD+N)
  <0.03% at +0dB, 22Hz~22KHz A-weighted
  Line Input
  1/4' TRS with balanced
  Sensitivity Range
  +20dBu~ -30dBu
  SNR
  <-100dBr A-weighted
  RCA Input Channels
  RCA Input   RCA with un-balanced
  Frequency Response   10Hz to 55KHz,+/-3dB
  Distortion(THD+N)   <0.03% at +0dB ,22Hz~22KHz A-weighted
  Sensitivity Range   +20dBu~ -30dBu
  SNR   <-100dBr A-weighted
  Channels EQ
  Mono Channel   Stereo Channel
  High
  +/-15dB@12KHz
  +/-15dB@12KHz
  Mid   +/-15dB@100KHz
  -8KHz
  +/-15dB@3KHz or
  +/-15dB@500Hz
  Low   +/-15dB@80Hz   +/-15dB@80Hz

FEATURES

  • Ultra-low noise discrete MIC Preamps
          with +48V Phantom Power
  • 8/6 MIC Input Channels with XLRs and
          balanced Line Inputs
  • 8 Compressors control and 8 Insert I/O
  • Low Cut for each MIC Input
  • 3-band EQ with sweepable MID & Peak LEDs
          on each Mono channel
  • 4-band EQ and Peak LEDs on Stereo channels
  • Mute and PFL function for each channel
  • Smooth 60mm Faders for level control
  • 2-Track Input assignable to Main Mix or
          Control Room / Headphone Outputs
  • Balanced XLR & TRS outputs for Main Mix
  • Built in 24-bit DSP effect with 100 presets
  • Assembled MP3 player
  • Internal switch-mode power supply for
          maximum flexibility 100-240V
  • With USB port, record from MAIN OUT
          and play to CH23/24

UFX24 Analogue Mixer

UFX24 is a professional compact mixer to give you great quality and better reliability than ever before. You will get smooth, accurate more natural and open sound from this apparatus. It is ideal for gigs, recording and fixed PA installations. The UFX12 Mixing Console is packed with features that cannot be found in other consoles of its size: 8/16 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels, 3-band EQ with sweepable MID on mono inputs;4-band EQ on stereo inputs, 4 auxiliary control, highly accurate 12-segment bar graph meters and 2-track inputs assignable to main mix, control room/phone output
