CM602 USB |

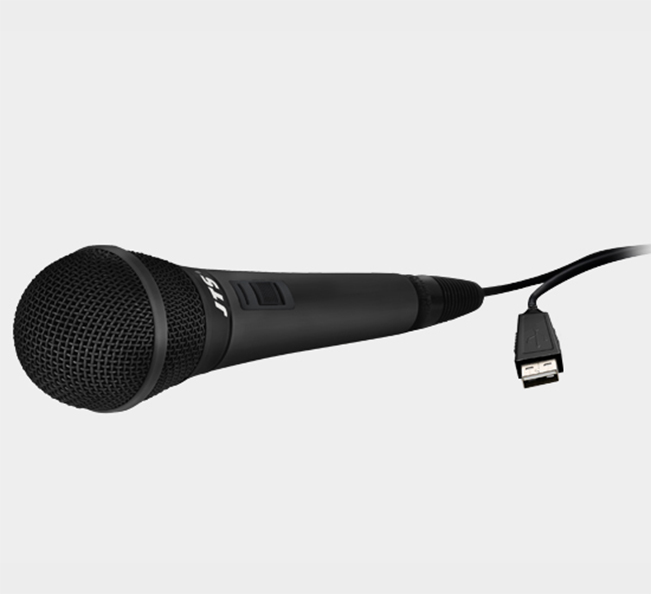

AG-35 USB |
| Type |
Electret Condenser |
Dynamic |
| USB Connector |
B type, Digital audio interface |
A type, Digital audio interface |
| Indicator |
USB (Mic OFF)....Green
Mic ON…………...Red |
|
| Switch |
Push control: ON/OFF |
MIC ON/OFF |
| Frequency Response |
30~12,000 Hz |
100~10,000 Hz |
| Sensitivity (at 1,000Hz) |
-53±3dB*(2.23mV)
0dB=1V/μbar |
-55±3dB |
| Directional Pattern |
Half-Cardioid |
|
| Max. SPL for 1% THD |
125 dB |
|
| Power consumption |
0.4W |
0.2W |
| Cable |
|
3M |
| Dimension (mm) |
73(W)* 24(H)*110(L) |
ψ52*203mm |
| Weight |
75g |
235g |
| DAC |
32 , 44.1 , 48KHz |
|
| ADC |
8 , 11.025 , 16 , 22.05 , 32 , 44.1 , 48KHz |
| Bit Depth |
16-Bit |
| USB Standard |
USB 1.1 / USB 2.0 / USB3.0 |
USB 1.1 / USB 2.0 |
