Shotgun Microphones

SGM-14


This 14” shotgun microphone is designed for ENG, outdoor recording and other specialized uses. It provides narrow acceptance angle and is desirable for long distance sound pick up. Low cut and pad are available for best miking effect.

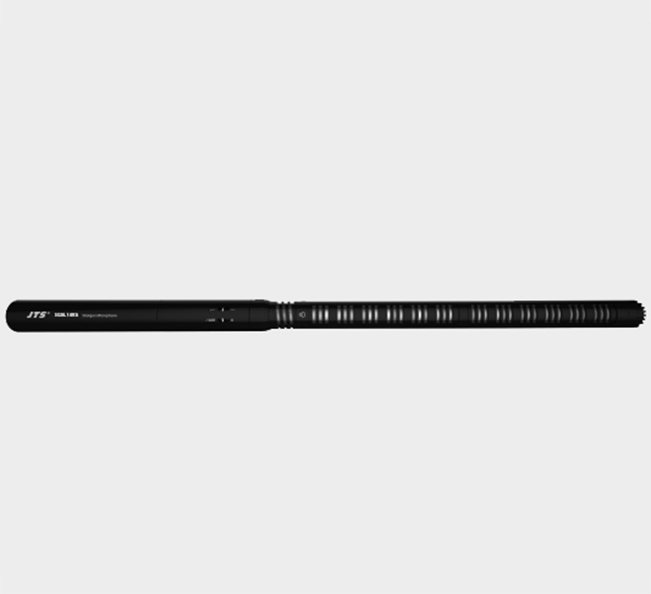

SGM-14KA


Shotgun Microphone Kit

GENERAL SPECIFICATIONS

  SGM-14 SGM-14KA
  Type Electret Condenser
  Frequency Response 20~20,000 Hz 40~20,000 Hz
  Sensitivity -52±3dB*(2.5mV)
*0dB=1V/μbar		 -34±3 dB*(20mV)
*0dB=1V/Pa
-35±3 dB*(17.8mV)
*0dB=1V/Pa
  Polar Pattern Hypercardioid
  Attenuation Switch -10 dB
  Low Frequency Roll-off 80 Hz 120 Hz
  Rated Impedance 200Ω 500Ω / 600Ω
  Max. SPL for 1% T.H.D. 125dB
135dB with -10dB Attenuation		 125 dB / 110 dB
  Signal To Noise Ratio 78dB 70dB
  Power Supply 9~48VDC phantom power 9~48VDC / 1.5V AA UM3 R6
  Current consumption ≦2mA / 0.4mA
(1200 hours typical)
  Output Connector 3P XLR(M)
  Length 355.7mm 405.6mm
