Wireless Systems   US-8010D, PT-900BD & CM-501

US-8010D

  Available for 1 transmitter.
  Diversity technology permits minimum dropouts in the RF link.
  Noise mute and pilot tone squelch circuit eliminate unwanted signal and noise interference.
  Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
  Tuned antennas extend the effective range of the wireless link.
  Half rack housing benefits space saving.

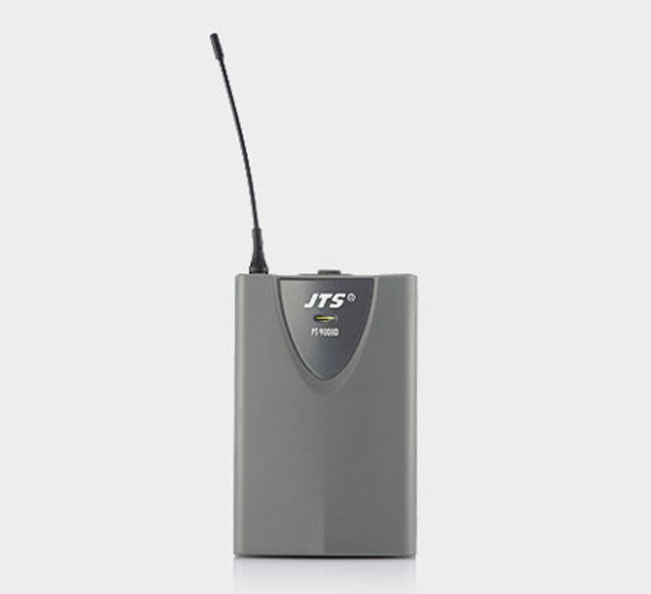

PT-900BD

  Fixed UHF channel.
  Compatible with lavaliere or headset microphones.
  Powered by AA batteries.
  Equipped with 4P Mini XLR connector.
  Compact, durable plastic housing.
  Carry case benefits tight attaching to belt.
  LED display.

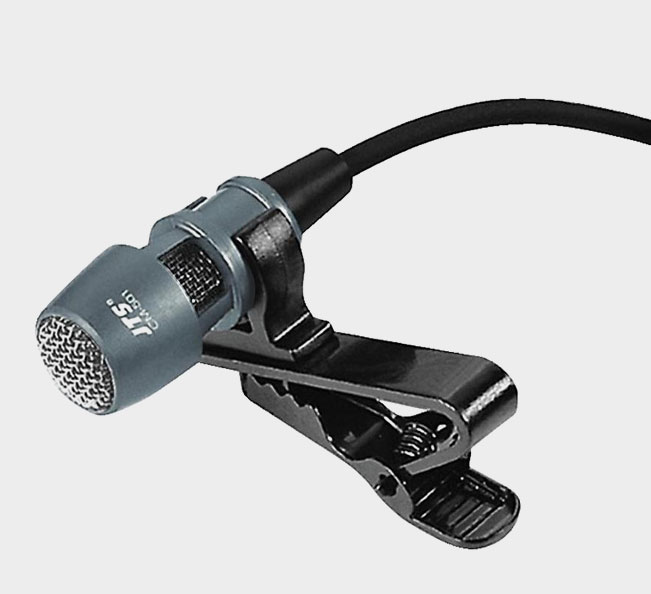

CM-501

  Uni-direction for high-quality voice pick-up.
  Wide dynamic range and frequency response for excellent sound reinforcement.
  Small size for minimum visibility.
  Together with clip for easy attaching to a tie, lapel, dress etc.

GENERAL SPECIFICATIONS

US-8010D
  Frequency Preparation   Crystal
  Carrier Frequency Range   600~960 MHz
  Frequency Stability   ±10KHz
  S/N Ratio   > 105dB
  T.H.D   <0.6%@1KHz
  Display   LED
  Display Contents   Antenna, RF/AF Status
  Controls   Power On/Off, Audio Level
  Audio Output Level   -12dB
  AF Output Impedance   600Ω
  Squelch   Pilot Tone, Noise and Mute
  Operation Voltage   12-18 VDC, 150mA
  Output Connector   1 XLR Balanced Socket
  1 Unbalanced Ø6.3mm Phone Jack
  Dimension(m/m)   210mm (W)* 40mm (H)* 171mm (D)

PT-900BD
  Frequency Preparation   Crystal
  Carrier Frequency Range   600~960 MHz
  RF Outputs   10mW
  Stability   ±10KHz
  Frequency Deviation   ±48KHz
  LCD Display   Power On/Off, Low Battery
  Controls   Power On/Off, AF Level
  Spurious Emissions   <-50 dBC
  Audio Frequency Response   40~18,000 Hz
  Battery   Um3, AA 1.5V*2

CM-501
  Connector   4P Mini XLR
  Frequency Response   100~15,000 Hz
  Polar Pattern   Cardioid
  Sensitivity (at 1KHz)   -60±3 dB* (1mV)*0dB=1V/μbar
  Impedance   2.2kΩ
  Max. SPL for 1% THD   130dB
  Dimension (mm)   Ø10.1mm(W)*  26.4mm(H)
  Net Weight   21.5g
