Wireless Systems   US-8010D & Mh-700

US-8010D


  Available for 1 transmitter.
  Diversity technology permits minimum dropouts in the RF link.
  Noise mute and pilot tone squelch circuit eliminate unwanted signal and noise interference.
  Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
  Tuned antennas extend the effective range of the wireless link.
  Half rack housing benefits space saving.

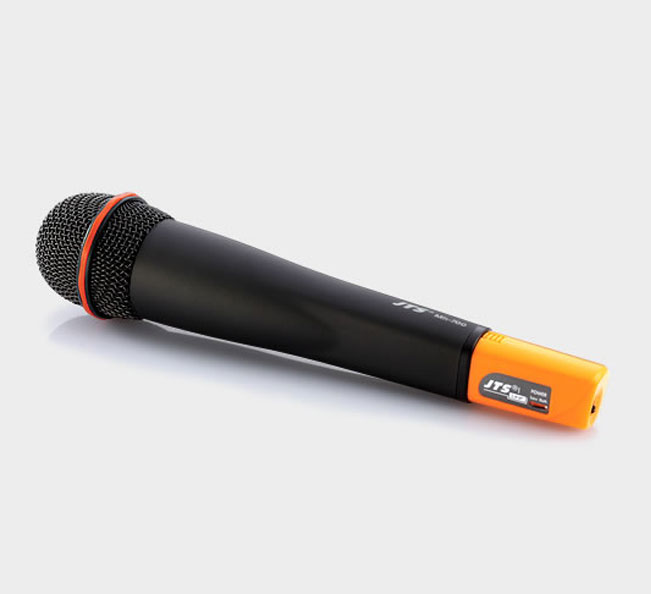

Mh-700

  Fixed UHF channel.
  Advanced circuit ensures stable signal transmission.
  Tone-key squelch prevents the reception of unwanted signal.
  Extended dynamic range and smooth frequency response.
  The durable plastic housing offers light weight.
  Internal antenna design.
  LED display for power and low battery.

GENERAL SPECIFICATIONS

US-8010D

  Frequency Preparation   Crystal
  Carrier Frequency Range   600~960 MHz
  Frequency Stability   ±10KHz
  S/N Ratio   > 105dB
  T.H.D   <0.6%@1KHz
  Display   LED
  Display Contents   Antenna, RF/AF Status
  Controls   Power On/Off, Audio Level
  Audio Output Level   -12dB
  AF Output Impedance   600Ω
  Squelch   Pilot Tone, Noise and Mute
  Operation Voltage   12-18 VDC, 150mA
  Output Connector   1 XLR Balanced Socket
  1 Unbalanced Ø6.3mm Phone Jack
  Dimension(m/m)   210mm (W)* 40mm (H)* 171mm (D)

Mh-700

  Frequency Preparation   Crystal
  Carrier Frequency Range   600~960 MHz
  RF Outputs   10mW
  Stability   ±10KHz
  Frequency Deviation   ±48KHz
  LCD Display   Low Battery, Power On/Off
  Controls   Power On/Off
  Spurious Emissions   <-50 dBC
  Audio Frequency Response   50~16,000 Hz
  Battery   Um3, AA 1.5V*2
