Tour Guide System  TG-10R & WM-10TG

TG-10R

 Handy and fashion outward
 Preset 16 selectable UHF channels
 Using Lithium cell to provide long operation time
 Transmitter with built-in condenser capsule
 LED display on both transmitters and receivers
 Belt-pack and neck-set wearing
 Earphone WM-10TG for TG-10R
 60m operation distance
 Compatible with stationary transmitter TG-10STX and receiver TG-10SRX

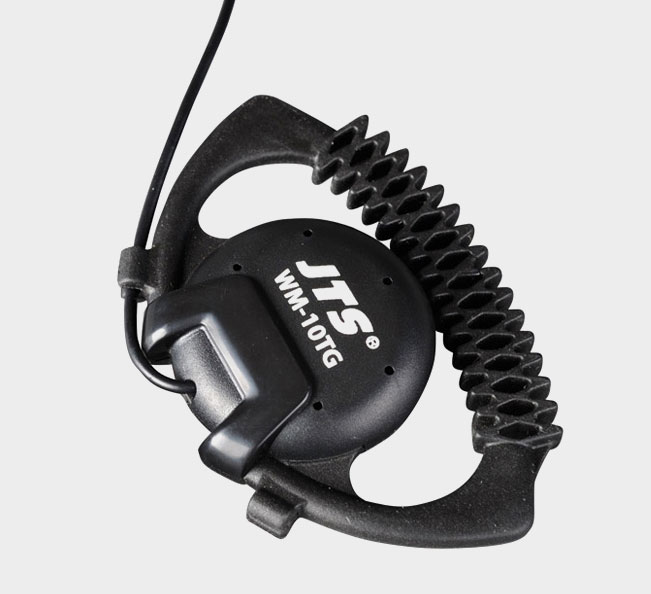

WM-10TG

 Handy feature, broad angle ear set with ergonomic design ensures comfortable wearing
 Audiophile quality semi closed, dynamic headphone
 Powerful neodymium-ferrous rare earth magnet system
 Lightweight copper-clad aluminum voice coils
 The cord is terminated with a gold-plated Ø3.5 dummy stereo phone plug
 Super thin 21mm dynamic driver with neodymium magnet structure provides crystal clear sound

GENERAL SPECIFICATIONS

 TG-10R

  Frequency Preparation   PLL Synthesized Control
  Carrier Frequency Range   502~960 MHz
  LED Display   Channel
  Controls   Power On/Off, Channel selection, Voiume control
  Audio Frequency Response   40~18,000 Hz
  Output connector   1/8” Dummy stereo Phone Jack
  Battery life   14 hours typical
  Battery   Lithium cell (3.7V, 1300mAh)
  Dimension (mm)   54mm(W)* 17mm(D)* 99mm(H)

 WM-10TG

  Drive Unit   Super thin dynamic driver with neodymium magnet
  Frequency Response   0~15,000 Hz
  Impedance   32Ω
  Sensitivity(at 1000Hz)   126 dB/mW
  Max. Input power   0.2W
  Input Connector   Gold-plated Ø3.5 dummy stereo phone plug
  Weight   15.2 grams

TG-10R


 Handy and fashion outward
 Preset 16 selectable UHF channels
 Using Lithium cell to provide long operation time
 Transmitter with built-in condenser capsule
 LED display on both transmitters and receivers
 Belt-pack and neck-set wearing
 Earphone WM-10TG for TG-10R
 60m operation distance
 Compatible with stationary transmitter TG-10STX and receiver TG-10SRX

WM-10TG

 Handy feature, broad angle ear set with ergonomic design ensures comfortable wearing
 Audiophile quality semi closed, dynamic headphone
 Powerful neodymium-ferrous rare earth magnet system
 Lightweight copper-clad aluminum voice coils
 The cord is terminated with a gold-plated Ø3.5 dummy stereo phone plug
 Super thin 21mm dynamic driver with neodymium magnet structure provides crystal clear sound
