Wireless Systems   UF-20R & JSS-20

UF-20R

  UHF True diversity technology renders 200-480 meters of operation distance
  Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
  Preset 15 groups each of up to 63 compatible channels
  User programmable 6 groups each of 64 channels
  Free space scan function
  JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
  JTS LCX circuit design technology minimizes Companding noise

NEWEST FEATURE:
  The is now not only sends the frequency data but also transmitter’s RF power, sensitivity, low cut, key lock and user's name.
  RF “NO SIGNAL” alert function.
  AF “MUTE” alert function.
  Transmitter “LOW BATTERY” alert function.
  Built in equalizer
  Power / Antenna cascading output provided.

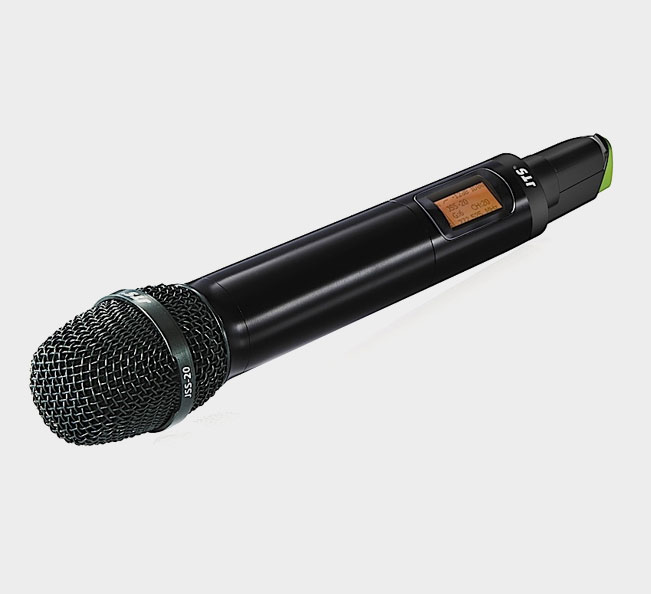

JSS-20

  2400 to 3000 selectable frequencies
  Preset 15 groups each of up to 63 compatible channels
  Phase-Locked Loop (PLL) synthesized tune
  Adjustable transmission power between Low and High

NEWEST FEATURE:
  Low cut function.
  JTS newest development SAM-8WLN capsule assures outstanding acoustic performance while minimizes touching noise.
  Interchangeable capsule design for various choices including some classic capsule modules.
  It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

GENERAL SPECIFICATIONS

UF-20R
  Frequency Preparation   PLL Synthesized Control
  Frequency Setting    JTS patented obstacles-free RF REMOSET
  Carrier Frequency Range   UHF 470~960 MHz
  Channel   Dual
  Bandwidth   60~75MHz Wideband
  S / N Ratio   > 108dB (A)
  T.H.D.   <0.5% @ 1KHz
  Chassis   1U standard metal chassis
  Preset Channels / Group   * From group 1 ~ 15 up to 63 interference-free compatible channels.
  * 690 preset channels / group and 3000 selectable frequencies
    across 60 to 75 Hz Bandwidth.
  * User programmable from U1 ~ U6 each of 64 channels reserved.
  Display   LCD
  Display Contents   Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter,
  Mute Display, Transmitter Battery Status, REMOSET ID Number,
  User Name, Squelch
  Sensitivity   6dBÎŒV, at S / N> 80dB
  Receiving Mode   True diversity
  Audio Output Level   Maximum 6dBu
  Receiving Mode   True diversity
  Audio Output Level   Maximum 6dBu
  AF Output Impedance   600Ω
  Frequency Response   50Hz ~ 18kHz, with high-pass filter
  Squelch   Pilot Tone & Noise Mute
  Power Supply   100 ~ 240V or 12V DC
  Output Connector   2 XLR Balanced Socket
  2 Ø6.3mm Unbalanced phone jack
  Dimension (m / m)   480mm (W) 45Mmm (H) 260mm (D)
  Notes   Actual product specifications may vary depending on model and region.

JSS-20
  Frequency Preparation   0dB / -10dB
  Carrier Frequency Range   UHF 470~960 MHz
  Bandwidth   60~75MHz Wideband
  RF Outputs   Low / High
  Stability   < ±10KHz
  Frequency Deviation   Â±48KHz (Peak)
  LCD Display   Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
  Controls   Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode,
  REMOSET ID Pairing, RF Output Adjust
  Spurious Emissions   <-50 dBC
  Audio Frequency Response   50Hz ~ 18k Hz
  Capsule Module   Interchangeable
  Battery   AA NiMH x2
  Dimensions   50mm (W) x253mm (H) x35.5mm (D)
  Weight   350g
  Notes   Actual product specifications may vary depending on model and region.
