Conference System  Expansion Kit

CS-1EXM (Expansion Kit Master)

CS-1 expansion kit, combined with D7PDM-1 extension cables, can expand the number of using units of i-conference discussion system from 50 to 150 by adding maximum two additional CS-1CU functioning as power supply units only. The system is controlled by the master CS-1CU unit. Using D7P-10 or D7P-20 extension cables to extend the operation distance.

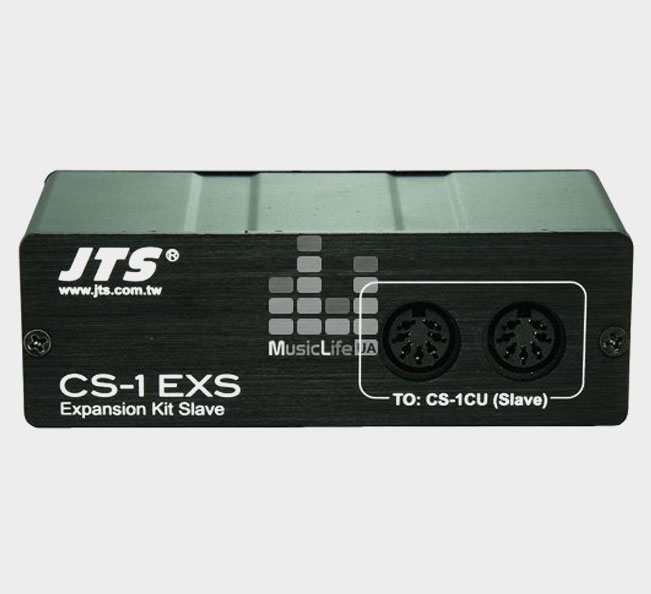

CS-1EXS (Expansion Kit Slave)

CS-1 expansion kit, combined with D7PDM-1 extension cables, can expand the number of using units of i-conference discussion system from 50 to 150 by adding maximum two additional CS-1CU functioning as power supply units only. The system is controlled by the master CS-1CU unit. Using D7P-10 or D7P-20 extension cables to extend the operation distance.

GENERAL SPECIFICATIONS

    CS-1EXM   CM-1EXS
  Input   7-pin DIN Connector   7-pin DIN Connector
  Output   7-pin DIN Connector   7-pin DIN Connector
  Dimension (mm)   115mm(W)* 65mm(D)* 38mm(H)   115mm(W)* 65mm(D)* 38mm(H)

CS-1EXM (Expansion Kit Master)

CS-1 expansion kit, combined with D7PDM-1 extension cables, can expand the number of using units of i-conference discussion system from 50 to 150 by adding maximum two additional CS-1CU functioning as power supply units only. The system is controlled by the master CS-1CU unit. Using D7P-10 or D7P-20 extension cables to extend the operation distance.

CS-1EXS (Expansion Kit Slave)

CS-1 expansion kit, combined with D7PDM-1 extension cables, can expand the number of using units of i-conference discussion system from 50 to 150 by adding maximum two additional CS-1CU functioning as power supply units only. The system is controlled by the master CS-1CU unit. Using D7P-10 or D7P-20 extension cables to extend the operation distance.
