TG-10CH2 |

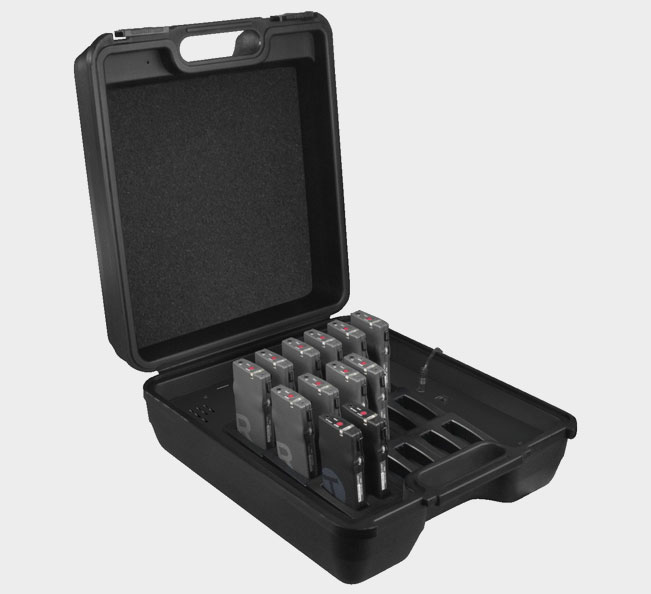

TG-10CH18 |

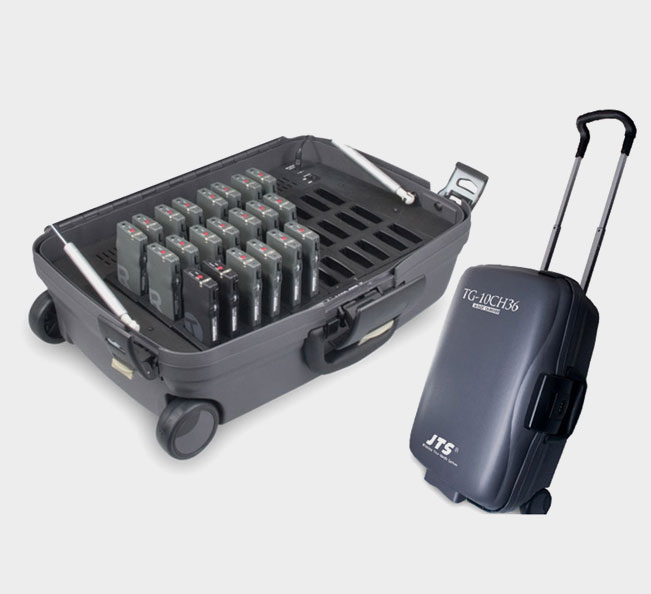

TG-10CH36 |
| Number of charging slot |
2 (receiver or transmitter) |
18 (receiver or transmitter) |
36 (receiver or transmitter) |
| Power requirement |
12~18VDC, 500mA |
Input : AC 100~240 V, 1.2A max
Output : DC 15V, 3A |
Input : AC 100~240 V, 1.2A max
Output : DC 15V, 6A |
| LED Indicator |
Power Connected: Flash Green
Charging: Green
Full Charged: Turn off |
Power Connected: Flash Green
Charging: Green
Full Charged: Turn off |
Power Connected: Flash Green
Charging: Green
Full Charged: Turn off |
| Dimension WxDxH |
85mm x 75mm x 41mm |
361.4mm x 422mm x 189mm |
561mm x 399.77mm x 230mm |
