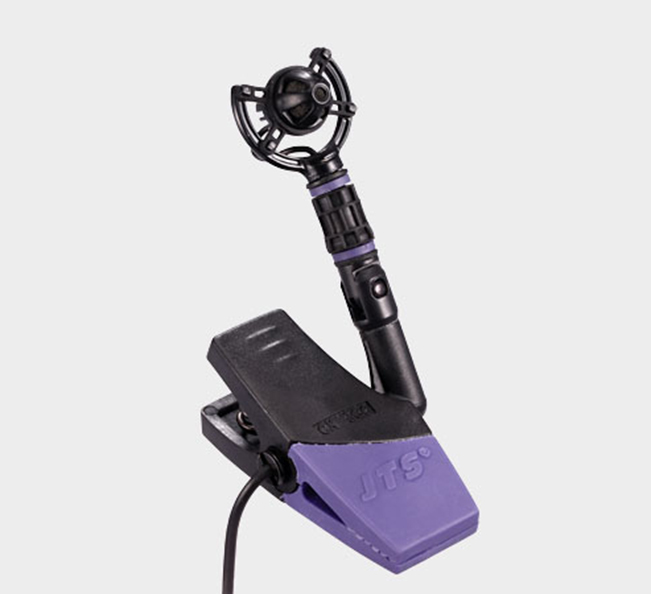

CX-505 / CX-506 Drum & Percussion Mic


With a smooth uniform frequency response, the JTS CX-505 & CX-506 are optimized for use with drums and percussion instruments.

* The unique design and miniature profile provides for minimal physical size interference for the musician.
* Low noise electronic circuitry together with balanced output provides isolation from ambient noise.
* The shock mount clamp greatly reduces extraneous mechanical noise and ensures secure mounting on drum rims, percussion instruments, and cymbal stands in either a horizontal or vertical position.
* Excellent natural reproduction of drums and percussion, accurately and purely without coloration.
* Newly added spider suspension isolates unwanted mechanical vibration effectively.
* Adjustable arm on the CX-505 shock mount clamp allows for optimal placement positioning and eliminates the use of mic stands, thereby reducing stage clutter and set up time.

GENERAL SPECIFICATIONS

CX-505 / CX-506 Drum & Percussion Mic

  Type   Electret Condenser
  Frequency Response   50~18,000 Hz
  Polar Pattern   Cardioid
  Sensitivity (at 1,000Hz)   -64dB*(0.63mV)
  Output Impedance   220Ω ± 30%
  Max.SPL for 1% T.H.D.   130 dB
  Output Connector   3P. XLR (M) type
  Power Supply   9-52V phantom power
  Net Weight   230 grams (8.1 oz)
  Touch Noise   Super low
