Installation Products  Boundary Microphone

CM-601


 The CM-601 is designed for conference, house of worship, and theater applications.
 The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule.
 The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF,PUSH TO TALK and PUSH TO MUTE three modes.
 The precisely calculated circuit plus tailored capsule response ensure transparent sound quality.
 Internal shock mount minimizes mechanical noise.

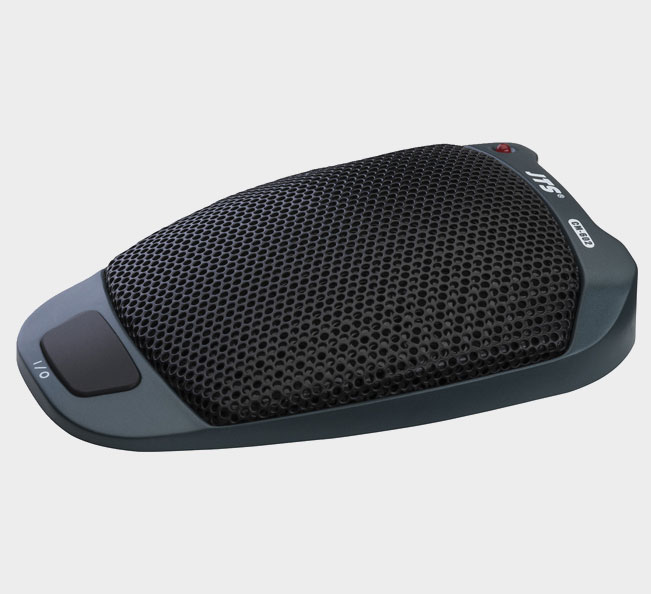

CM-602


The CM-602 is a simplified version of CM-601 with ON/OFF switch only.
 The CM-601 is designed for conference, house of worship, and theater applications.
 The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule.
 The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF,PUSH TO TALK and PUSH TO MUTE three modes.
 The precisely calculated circuit plus tailored capsule response ensure transparent sound quality.
 Internal shock mount minimizes mechanical noise.
 The CM-602 is a simplified version of CM-601 with ON/OFF switch only.

GENERAL SPECIFICATIONS

CM-601 / CM-602

  Type   Electret Condenser
  Frequency Response   30~12,000 Hz
  Sensitivity (at 1,000Hz)   -53±3 dB* (2.23mV)  0dB=1V /μbar
  Directional Pattern   Half-Cardioid
  Impedance   100Ω
  Max. SPL for 1% THD   125 dB
  Signal-To-Noise Ratio   67dB
  Power Supply   12-52 VDC phantom power
  Current Consumption   ≤6mA
  Output Connector   3P Mini XLR-M type (power module)
  Net Weight   88 grams
  CM-601 Only   0
  Low Frequency Roll-off   80Hz , 120Hz
  Switches   Push control: on/off
  Function selection:push on/off, momentaryon/off
  Low cut : low frequency roll-off

CM-502


 The CM-601 is designed for conference, house of worship, and theater applications.
 The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule.
 The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF,PUSH TO TALK and PUSH TO MUTE three modes.
 The precisely calculated circuit plus tailored capsule response ensure transparent sound quality.
 Internal shock mount minimizes mechanical noise.

CM-602


The CM-602 is a simplified version of CM-601 with ON/OFF switch only.
 The CM-601 is designed for conference, house of worship, and theater applications.
 The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule.
 The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF,PUSH TO TALK and PUSH TO MUTE three modes.
 The precisely calculated circuit plus tailored capsule response ensure transparent sound quality.
 Internal shock mount minimizes mechanical noise.
 The CM-602 is a simplified version of CM-601 with ON/OFF switch only.
