Studio Recording Microphones

JTS offers a wide range of wired microphones that can handle all your recording, studio and sound-reinforcement needs.

JS-1T

GENERAL SPECIFICATIONS

  Type   Large Diaphragm Condenser Mic
  Frequency Response   20~20,000 Hz
  Sensitivity (at 1,000Hz)    -38dB*(12.6mV) 0dB=1V/Pa
  Directional Pattern    Cardioid,Omnidirectional,figure-8
  Low Frequency Roll-off   80Hz
  Impedance   200Ω
  Max. SPL For 1% T.H.D.   132 dB
  Signal To Noise Ratio   78 dB
  Power Supply   36-52 VDC phantom power required
  Current Consumption   1mA
  Output   3 Pin XLR(M) (power module)
  Net Weight   480 grams(16.9oz)
  Dimensions(mm)   Ø56mm(W)* 184mm(H)

The JTS JS-1T is a multi-pattern studio microphone with three selectable polar patterns: Cardioid, Omnidirectional and Figure-8 providing superb performance for vocals, acoustic Instruments, drum kits, percussion etc. for either Live or Studio Recording.

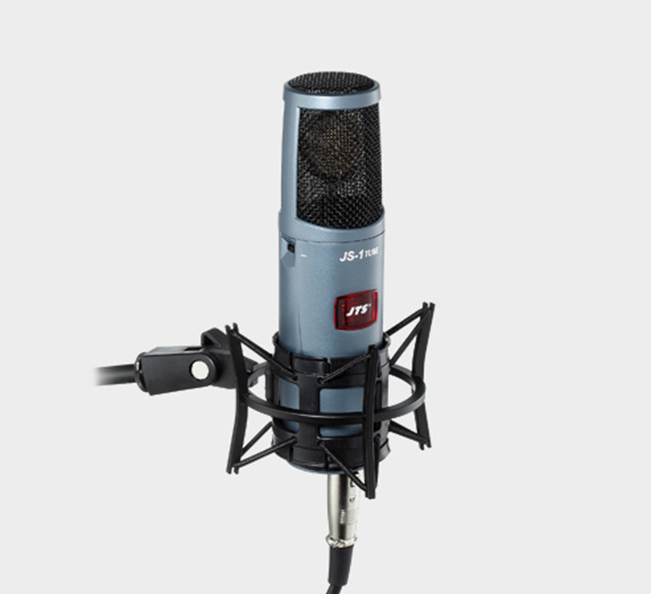

JS-1Tube

GENERAL SPECIFICATIONS

  Type   Large Diaphragm Condenser Mic
  Frequency Response   20~20,000 Hz
  Sensitivity (at 1,000Hz)    -35dB*(17.8mV) 0dB=1V/Pa,1kHz
  Directional Pattern    9 switchable polar patterns
  Attenuation Switch   -10 dB
  Low Frequency Roll-off   80Hz
  Impedance   200Ω
  Max. SPL For 1% T.H.D.   135 dB
  Signal To Noise Ratio   78 dB
  Powering   PS-9 Power Supply
  Output   7Pin XLR (M) (power module)
  Net Weight   700 grams(24.7oz)
  Dimensions(mm)   Ø56mm(W)* 207mm(H)

The JTS JS-1Tube is a large-diaphragm vacuum tube studio microphone designed for use in the most demanding applications such as : Broadcasting, Studio Vocal, Live Recording, Acoustic Guitar/Bass, Cymbals, Woodwinds and Saxophone.

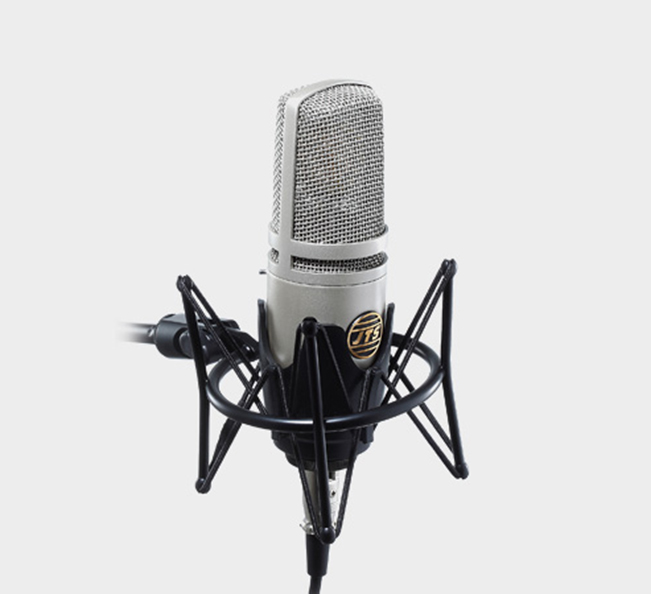

JS-1

GENERAL SPECIFICATIONS

  Type   Large Diaphragm Condenser Mic
  Frequency Response   20~20,000 Hz
  Sensitivity (at 1,000Hz)    -38dB*(12.6mV) 0dB=1V/Pa
  Directional Pattern    Cardioid
  Attenuation Switch   10 dB
  Low Frequency Roll-off   80Hz
  Impedance   200Ω
  Max. SPL For 1% T.H.D.   132 dB
  Signal To Noise Ratio   78 dB
  Power Supply   36-52 VDC phantom power
  Current Consumption   ≤1mA
  Output   3Pin XLR (M) (power module)
  Net Weight   480 grams(16.9oz)
  Dimensions(mm)   Ø56mm(W)* 184mm(H)

The JTS JS-1 is a studio microphone designed for use in the most demanding applications. A specially contoured 1” super thin 24K gold plated diaphragm provides superb reproduction of high sound pressure level signals at all frequencies. A switchable 10dB pad is built-in to increase the SPL capabilities. It’s precise resolution and ability to handle high sound-pressure levels makes it an excellent all-purpose microphone. Included with the JS-1 a versatile shock-mount with standard 5/8”-27 threads.

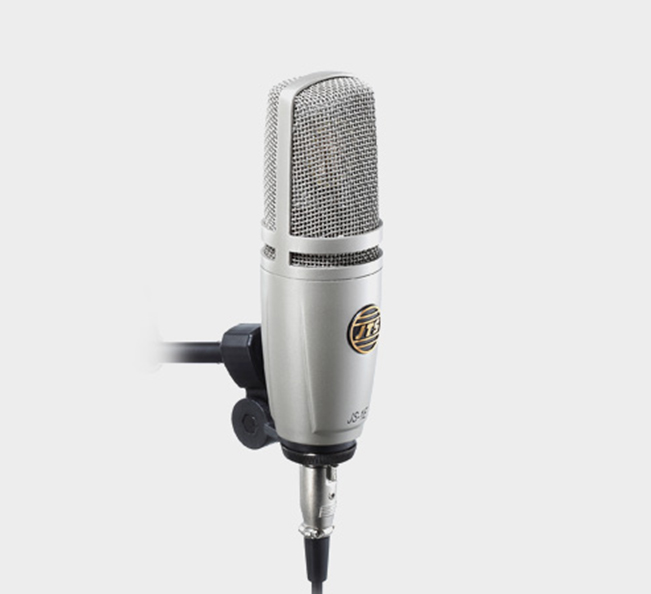

JS-1E

GENERAL SPECIFICATIONS

  Type   Large Diaphragm Condenser Mic
  Frequency Response   20~20,000 Hz
  Sensitivity (at 1,000Hz)    -38dB*(12.6mV) 0dB=1V/Pa
  Directional Pattern    Cardioid
  Impedance   200Ω
  Max. SPL For 1% T.H.D.   132 dB
  Signal To Noise Ratio   78 dB
  Power Supply   36-52 VDC phantom power
  Current Consumption   ≤1mA
  Output   3Pin XLR (M) (power module)
  Net Weight   480 grams(16.9oz)
  Dimensions(mm)   Ø56mm(W)* 184mm(H)

The JTS JS-1E is an economic version of JS-1, but does not provide the PAD and LOW CUT function switches and circuitry of the JS-1 and does not include the spider type shock mount that is included with the JS-1.

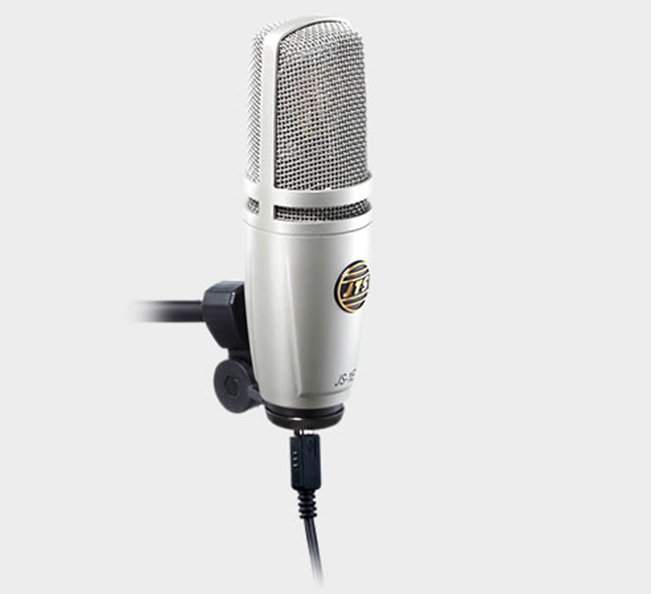

JS-1USB

GENERAL SPECIFICATIONS

  Type   Large Diaphragm Condenser Mic
  USB Connector   B type, Digital audio interface
  Indicator   USB ................. Green
  Sensitivity (at 1,000Hz)    -38dB*(12.6mV) 0dB=1V/Pa
  Max. SPL For 1% T.H.D.   132 dB
  Frequency Response   20~20,000 Hz
  Directional Pattern    Cardioid
  Power Consumption   0.5W
  Dimensions(mm)   Ø56mm(W)* 184mm(H)
  Net Weight   480 grams(16.9oz)
  DAC   32, 44.1, 48KHz
  ADC   8, 11.025, 16, 22.05, 32, 44.1, 48KHz
  Bit Depth   16-Bit
  USB Type   USB 1.1 / USB 2.0 / USB 3.0

The JTS JS-1USB is an USB version of JS-1E.

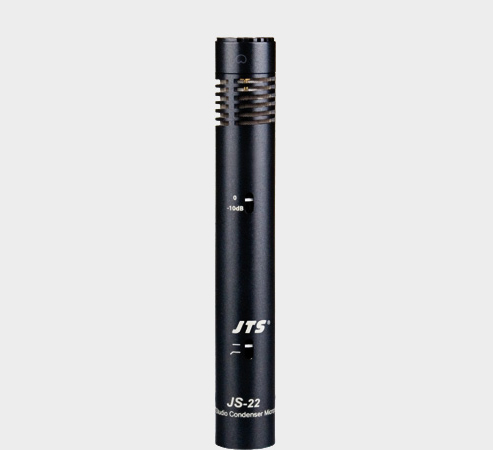

JS-22

GENERAL SPECIFICATIONS

  Type   Condenser Mic
  Frequency Response   20~20,000 Hz
  Sensitivity (at 1,000Hz)     -36±3 dB* (15.8mV) 0dB=1V /Pa,1kHz
  Directional Pattern    Cardioid
  Attenuation Switch   -10 dB
  Low Frequency Roll-off   80Hz
  Impedance
  Max. SPL For 1% T.H.D.   140 dB
  Signal To Noise Ratio   78 dB
  Power Supply   36-52 VDC phantom power
  Current Consumption   ≤3mA
  Output   XLR-M type(power module)
  Dimensions(mm)   Ø22.5mm(W) * 150.5mm(H)

Based on the successful experience of JS-1 series JS-22 is designed for instrument miking from strings to percussions. The JS-22 is built on a solid brass with accurate processing. The 1/2” golden plated diaphragm is manually assembled by JTS craftsman. The precise designed circuit with low cut and pad feature provides flat response. This microphone royally reproduces any kinds of instruments and vocals. Application : Acoustic guitar, acoustic bass, strings, piano, woodwinds, orchestra, stereo pick-up, ensemble vocals and cymbals.
