Conference Microphone System  CS-1 System

The Conference Microphone System has never been in so much demand like today’s business world. JTS offers Cs-1 Conference Microphone System with has the easiest installation procedure and along with flexible systems CS microphone automatic mixers. All these systems are based on JTS famous audio and linear/digital control design technology.
The JTS CS-1 Conference Microphone System is ideal for use in conference rooms, boardrooms and council chambers.

CS-1CU (Analog Control Unit)


The control unit is the center of the discussion system which controls the microphones of the chairman and delegate units as well as connects to other audio input and output. It also supplies the power for the CU itself, and up to 50 chairman and delegate units.

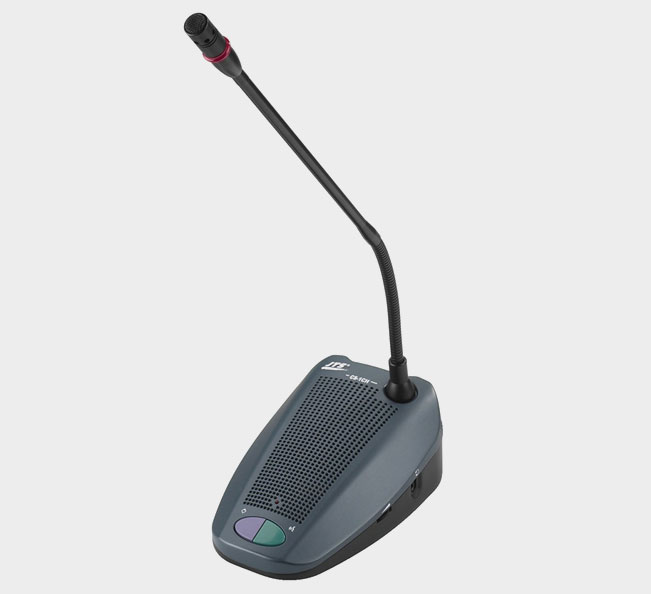

CS-1CH (Analog Chairman Unit)


The chairman unit not only provides the same function as the delegate unit, but also supports the addition of a “Priority button”, that enables the chairman to control the discussion by temporary or permanently overriding and deactivating all active microphones of the delegate units.

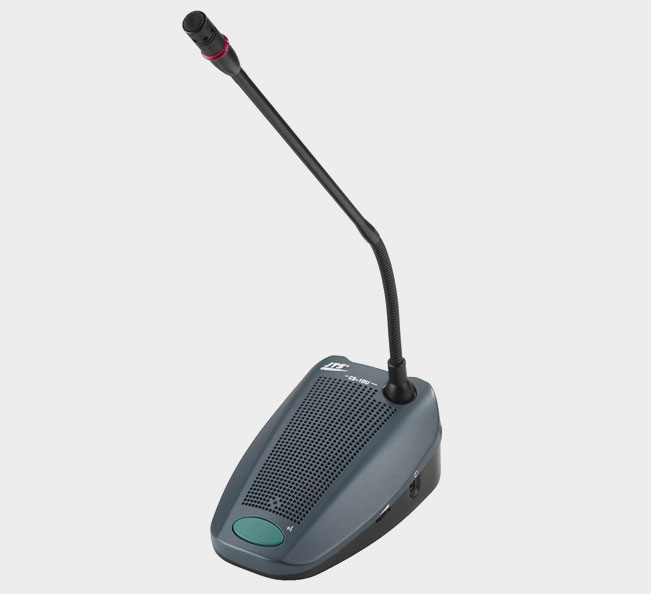

CS-120DU (Digital Delegate Unit)


The delegate unit enables the attendants to participate in a discussion by speaking through a microphone, controlled by a microphone ON/OFF push-button, and listening to discussion by the internal loudspeaker and external headphone.

GENERAL SPECIFICATIONS

 CS-1CU

  Voltage   VAC100-240~, 50/60Hz
  Current consumption   MAX 0.9A(100VAC) / 0.3A(240VAC)
  DC supply to contribution units   Â±15V
  Line, telephone coupler and insertion in/outputs (unbalanced)
  Input sensitivity   -14dBV/+11dBV (nominal/maximum)
  Input impedance   33KΩ
  Output level   -14dBV/+11dBV (nominal/maximum)
  Output Impedance   500Ω
  Recorder in/output (unbalanced)
  Input sensitivity   -20dBV/+5dBV (nominal/maximum)
  Input impedance   47KΩ (for L & R channel)
  Adjustment   -20dBV/+5dBV(nominal/maximum)
  Output level   +0/-30dBV
  Output Impedance   500Ω
  External microphone input (XLR(F) balanced)
  Input sensitivity   -56dBV
  Adjustment.   +6dBV/-6dBV(nominal/maximum)
  Phantom supply   12V+/-1V, 2*680Ω (±2%)

 CS-1CH / CS-1DU

  Headphone output
  Output level   -8dBV / +2 dBV (nominal / maximum)
  Output Impedance   22Ω
  System limits Number of delegate/chairman units connected to one control unit
  Maximum in total   50
  Maximum per trunk output   25
  Maximum trunk length using CS-1   standard cabling: 100m
  Dimensions (HxWxD)   360*150*90 mm
  Weight   1745 grams
  Gooseneck Microphone
  Type   Back Electret Condenser
  Frequency Response   50 ~ 18,000Hz
  Polar Pattern   Cardioid
  Max. SPL for 1% THD   125dB
  Gooseneck Length   15” (400mm)
  Dimensions (HxWxD) without mic   170*115*65 mm
  Length of mic   400 mm
  Weight   1100 grams
