Lavalier Microphones

CM-501


 Uni-direction for high-quality voice pick-up.
 Wide dynamic range and frequency response for excellent sound reinforcement.
 Small size for minimum visibility.
 Together with clip for easy attaching to a tie, lapel, dress etc.

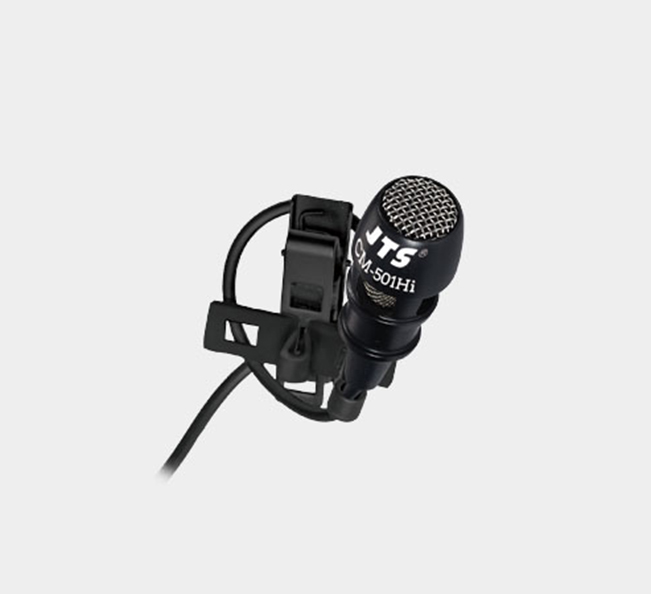

CM-501Hi

The CM-501Hi deploys a high sensitivity capsule with unidirectional pick up pattern. It provides maximum gain before feedback. Wide frequency response and dynamic range assure excellent sound reproduction. The latest clip set, CLP-258, provides versatile application. Single and dual microphone pick up are at your choice. CLP-258 assures optimal picking up for different dressings.

GENERAL SPECIFICATIONS

  CM-501 CM-501Hi
  Type Uni-directional Condenser
  Connector 4P Mini XLR TA4F
  Frequency Response 100~15,000 Hz
  Polar Pattern Cardioid
  Sensitivity (at 1KHz)
-60±3 dB* (1mV)*0dB
=1V/μbar
-54±3 dB* (2mV) *0dB
=1V /μbar
  Impedance 2.2kΩ 3.7kΩ
  Max. SPL for 1% THD 130dB 115dB
  Standard Operating
  Voltage		 5Vdc
  Operation Voltage
  Range		 3~10 Vdc
  Current consumption Max. 0.5mA
  Dimension (mm) Ø10.1mm(W)*  26.4mm(H)
  Net Weight 21.5g

CM-501

 Uni-direction for high-quality voice pick-up.
 Wide dynamic range and frequency response for excellent sound reinforcement.
 Small size for minimum visibility.
 Together with clip for easy attaching to a tie, lapel, dress etc.

CM-501Hi

The CM-501Hi deploys a high sensitivity capsule with unidirectional pick up pattern. It provides maximum gain before feedback. Wide frequency response and dynamic range assure excellent sound reproduction. The latest clip set, CLP-258, provides versatile application. Single and dual microphone pick up are at your choice. CLP-258 assures optimal picking up for different dressings.
