Installation Products  Automatic Mixer

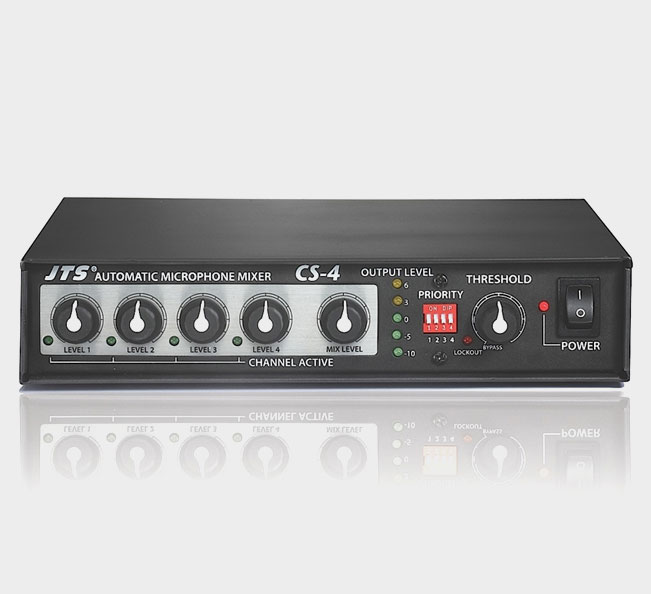

CS-8 / CS-4


The CS series microphone automatic mixers provide great convenience to sound reinforcement installation with any size and any combination.

Full feature design includes:
 Daisy-chain with unlimited number of the mixer
 Three operation modes: one-channel-at-a time, all active or override
 Switchable inputs accept microphones or line level devices
 Switchable output levels between mic. and line level
 Individual gain control and phantom power for each channel
 Last In stays on for continuous ambience sound
 Control voltage provided to trigger external device such as speaker switching and camera switching

The outstanding performance enables effective managing of multi-microphone installations including corporate boardrooms, conference rooms, government builds, houses of worship, classrooms.

GENERAL SPECIFICATIONS

CS-8

  Input
  Type   XLR
  Mic   4.7KΩ
  Line   20KΩ
  Output
  Type   XLR
  Mic   300Ω
  Line   200Ω
  MAX Output Level   >17dB
  MAX Gain   >70dB
  Frequency Respond   35~20,000 Hz
  THD%   <0.06%
  Signal-to-noise radio   >70 dB
  Input Attenuation   -50dB
  Phantom Power   +48V
  Mic In Attenuation   -10dB / -20dB
  Mic Attenuation   -10dB / -15dB / -20dB
  Output Attenuation   -50dB
  Voltage Output   +4VDC ±0.3V
  Power Supply   18VDC, 1A
  Power Consumption   13.5W
  Fuse   T0.5AE 250V  (Slow-Blow)
  Weight   2.25 kg
  Dimensions   420mm(W)*44mm(H)*198.5mm(D)
