Wireless Microphone Systems   US-1000D & Mh-8990i

With the advancing wireless technology, JTS wireless microphone systems outperform most of the other wireless systems available in and above their price range. PLL technology provides great freedom from RF interference, and amazing signal reliability allows a maximum numbers of systems to work together simultaneously. Hence they are the best wireless microphone systems available in the market today.

US-1000D


It is one of the best wireless microphone system offered from the wide range of wireless systems by JTS. Some of its important features are:
  Single Transmitter operation.
  PLL synthesized technology with 961 selectable UHF channels.
  Preset 4 groups each of 16 UHF channels.
  True diversity technology prevents RF dropouts.
   Equipped with S.A.W. filter for interference free operation.
  Built-in ,noise mute and tone-key squelch.
  Lock-on" mode avoids accidental changes of frequency, sensitivity and power-off.
  Balanced XLR output and unbalanced 6.3mm (1/4”) output.
  Tuned antennas for the most stable RF reception.
  Compact half rack space design with metal receiver housing.

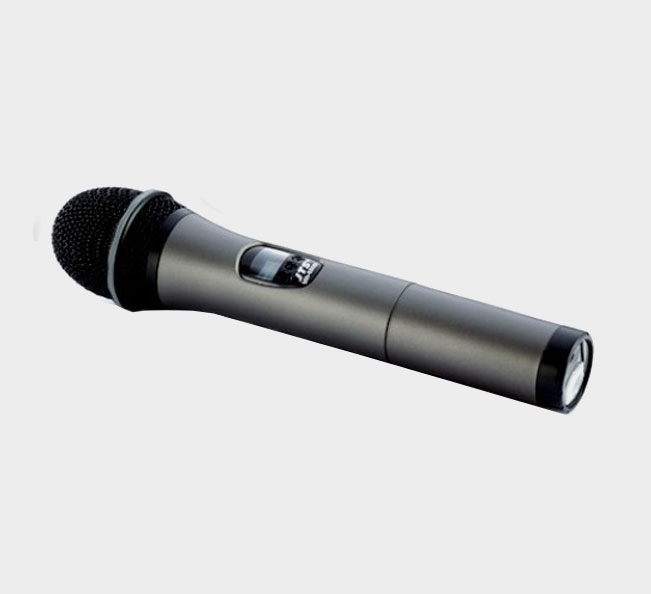

Mh-8990i

With its advanced circuit design, extended Dynamic range and smooth frequency response, JTS Mh-8990i is one of the best wireless microphone system available in the market today. Some of its important features are:

UHF PLL handheld transmitter with 961 selectable channel and Phase-locked Loop (PLL) synthesized tuner. Interchangeable capsule module for either condenser or dynamic capsule.

  961 selectable channels
  Phase-locked Loop (PLL) synthesized tuner
  Advanced circuit design ensures stable signal transmission
  Extended dynamic range and smooth frequency response
  Noise mute and tone-key squelch
  Interchangeable capsule module for either condenser or dynamic capsule
  Internal antenna design
  “Lock-on” function prevents tampering and RF interruption

GENERAL SPECIFICATIONS

US-1000D

  Frequency Preparation   PLL Synthesized Control
  Carrier Frequency Range   502~960 MHz
  S/N Ratio   >105dB
  T.H.D.   <0.6%@1KHz
  Display   LCD
  Display Contents     Frequency, Antenna A/B, Mute Display, RF/AF Level Meter, Battery Fuel Gauge
  Controls   Power On/Off, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on
  AF Output Impedance   600Ω
  Squelch   Pilot Tone & Noise Mute
  Operation Voltage   12-18 VDC, 250mA
  Output Connector   1 XLR Balanced Socket
  1 Ø6.3mm unbalanced phone jack
  Dimension(m/m)   212mm(W) * 40mm(H) * 137mm(D)

Mh-8990i

  Frequency Preparation   PLL Synthesized Control
  Carrier Frequency Range   502~960 MHz
  RF Outputs   10mW
  Stability   ±10KHz
  Frequency Deviation   ±48KHz
  LCD Display   Frequency, Battery Fuel Gauge, Sensitivity
  Controls   Power On/Off, Mode Setting, AF Level, Frequency Up/Down, Lock-on Mode
  Spurious Emissions   <-60 dBC
  Audio Frequency Response   50~16,000 Hz
  Battery   Um3, AA 1.5V*2

US-1000D


  Single Transmitter operation.
  PLL synthesized technology with 961 selectable UHF channels.
  Preset 4 groups each of 16 UHF channels.
  True diversity technology prevents RF dropouts.
   Equipped with S.A.W. filter for interference free operation.
  Built-in ,noise mute and tone-key squelch.
  Lock-on" mode avoids accidental changes of frequency, sensitivity and power-off.
  Balanced XLR output and unbalanced 6.3mm (1/4”) output.
  Tuned antennas for the most stable RF reception.
  Compact half rack space design with metal receiver housing.

Mh-8990i


UHF PLL handheld transmitter with 961 selectable channel and Phase-locked Loop (PLL) synthesized tuner. Interchangeable capsule module for either condenser or dynamic capsule.

  961 selectable channels
  Phase-locked Loop (PLL) synthesized tuner
  Advanced circuit design ensures stable signal transmission
  Extended dynamic range and smooth frequency response
  Noise mute and tone-key squelch
  Interchangeable capsule module for either condenser or dynamic capsule
  Internal antenna design
  “Lock-on” function prevents tampering and RF interruption
