Tour Guide System  TG-10T & CM-801

TG-10T


 Handy and fashion outward
 Preset 16 selectable UHF channels
 Using Lithium cell to provide long operation time
 Transmitter with built-in condenser capsule
 LED display on both transmitters and receivers
 Belt-pack and neck-set wearing
 Earhook microphone CM-801S for TG-10T
 60m operation distance
 Compatible with stationary transmitter TG-10STX and receiver TG-10SRX

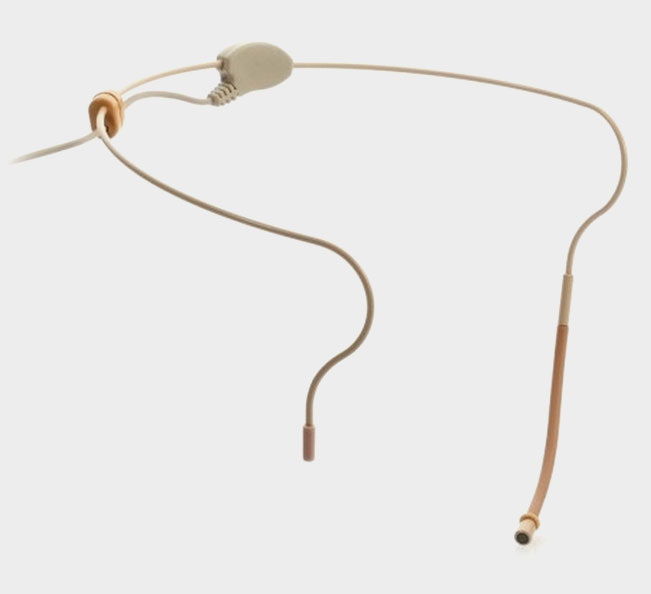

CM-801

Single Earhook Omni-directional Microphone

GENERAL SPECIFICATIONS

 TG-10T

  Internal Microphone   Omni-directional Condenser Microphone
  Frequency Preparation   PLL Synthesized Control
  Carrier Frequency Range   502~960 MHz
  RF Outputs   10mW
  Stability   ±10kHz
  Frequency Deviation   ±48kHz
  LED Display   Channel
  Controls   Power On/Off, Channel selection, Voiume control
  Spurious Emissions   < -50 dBC
  Audio Frequency Response   40~18,000 Hz
  Microphone input connector   1/8” Mono Phone Jack
  Battery life   14 hours typical
  Battery   Lithium cell (3.7V, 1300mAh)
  Dimension (mm)   54mm(W)* 17mm(D)* 99mm(H)

 CM-801

  Connector   801C4 (4 pin mini XLR)
  801C3 (3 pin mini XLR)
  801CS (3.5 stereo plug)
  Frequency Response   60 ~ 15,000Hz
  Polar Pattern   Omni-directional
  Sensitivity (at 1KHz)   -64±3 dB* (0.63mV)*0dB=1V/μbar
  Impedance   1.8kΩ
  Max. SPL for 1% THD   130dB
