Conference System   CS-W4C(T) / CS-W4T(T)

CS-W4C(T) / CS-W4T(T)

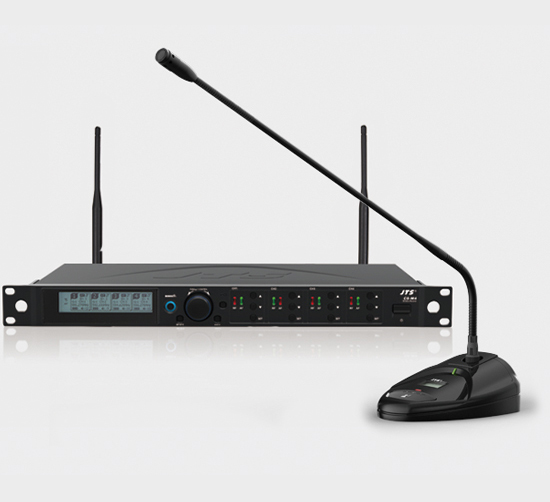

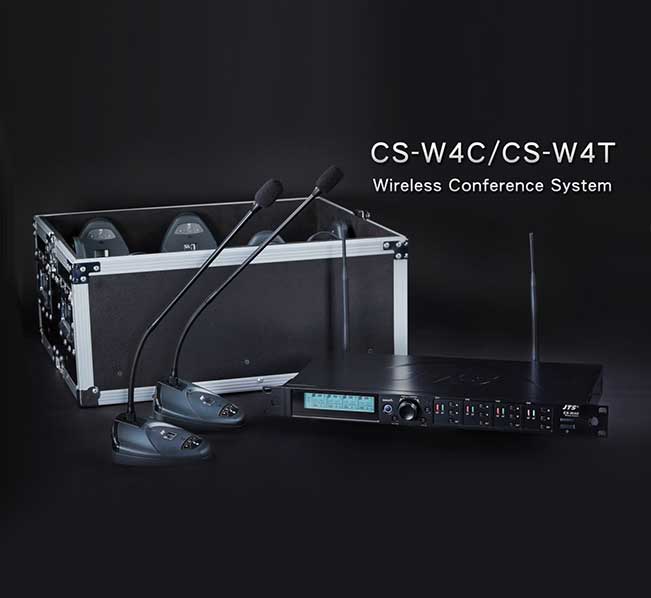

CS-W4C is designed with JTS newest wireless and conferencing technology. It provides maximized compatible channels with a given bandwidth. Built in logic circuit provides conferencing feature. A microphone assigned with priority will work as a chairman unit. It overrides other microphones. Logic setting of one CS-W4C receivers can be cascaded. A microphone with priority in one receiver will also have priority in a cascaded system. JTS patented REMOSET synchronizes all four microphones simultaneously by push one button. The microphone is of 108 MHz bandwidth. This feature allows more attendants to join the conference.

GENERAL SPECIFICATIONS

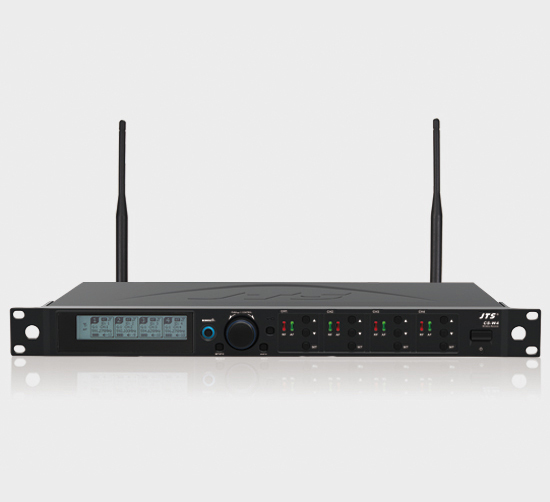

 CS-W4C(T)

  Frequency Preparation   PLL Synthesized Control
  Carrier Frequency Range   470~960 MHz / 502.000 - 694.000 MHz (T band)
  Frequency Setting   2.4G RF REMOSET
  Channel   4
  Bandwidth   36MHz
  S/N Ratio   >105dB(A)
  T.H.D   <0.6%@1KHz
  Sensitivity   -95dBm, S/N>80dB
  CMRR   >80 dB
  Audio Frequency Response   80Hz~16KHz±2dB
  Antenna Connector   BNC (Female)
  Antenna Booster Power   DC12V/100mA
  Display   LCD+LED
  Controls   Power ON/OFF, Group, Channel, Frequency, Sensitivity,
  Key Lock, Volume, Output Attenuation(XLR),
  Frequency Scan(ON/OFF), Antenna Power,
  Display Setting,Language,Remoset ID Number,
  Reoset Setting, Priority Setting
  Audio Output Level   Ref: ±22.5KHz Dev@1KHz Tone
  ψ6.3 Phone Jack: -10dBV
   XLR Jack: -4dBV(Line), -24dBV(MIC)
  Audio Output Level   600Ω
  Squelch   Pilot Tone & Noise Mute

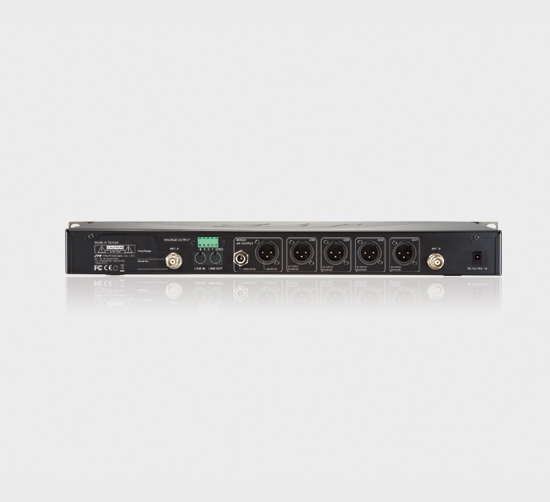

  Output Socket   XLR Balanced Socket x5, φ6.3mm Unbalanced x1
  Automixer Control   8PIN MINI DIN Input, 8 PIN MINI DIN Output
  Power Supply   DC12~15V/1A
  Dimension(mm)   485(W) x 45(H) x 260(D)

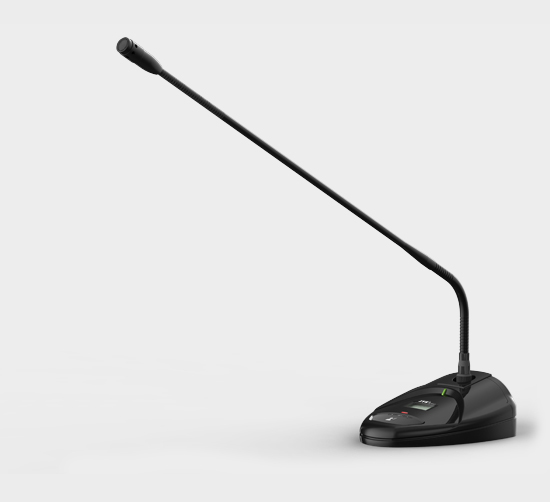

 CS-W4T(T)

  Frequency Preparation   PLL Synthesized Control
  Carrier Frequency Range   470~960 MHz / 502.000 - 694.000 MHz (T band)
  Frequency Setting   2.4G RF REMOSET
  RF Outputs   Low / High
  Stability   <±10KHz@Fc
  Frequency Deviation   ±48KHz
  Spurious Emissions   <-50dBc
  Display   LCD
  Controls   Power ON/OFF, Talk, Group, Channel,
   Fuequency, Sensitibity, RF Output, Key Lock
   REMOSET ID Pairing, REMOSET Setting
  Battery   UM3, AA x2
  Rechargeable   Yes
  Base Dimension   116mm (W)*29 mm(H)*138mm(D)
