Wireless Systems   US-8002D, PT-850B & CM-501

US-8002D

 Preset 16 selectable UHF channels.
 Single transmitter operation.
 Diversity technology prevents dropouts in the RF link.
 PLL synthesized technology.
 Noise mute and pilot tone squelch.
 Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
 Tuned antennas maximize the effective range of the wireless link.
 Compact half rack space design.

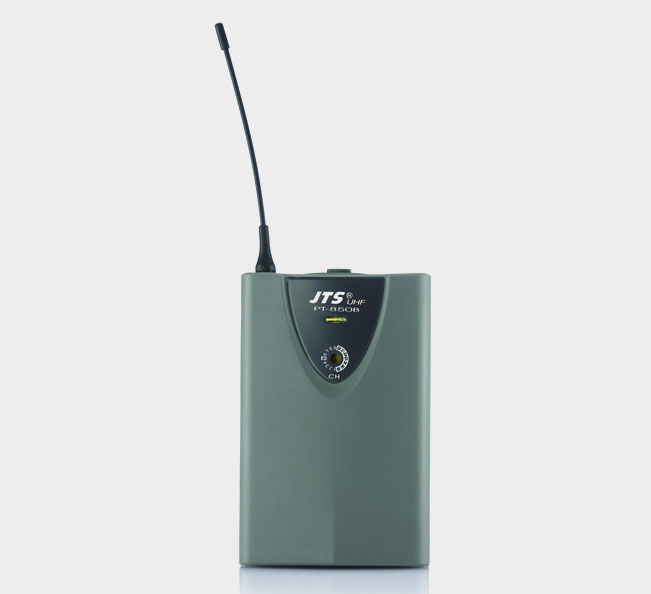

PT-850B

 16 Selectable channels.
 PLL synthesized oscillator type.
 Powered by 2 AA batteries.
 Equipped with 4P Mini XLR connector.
 Compact, heavy duty plastic housing.
 LED display.
 PT-850Bmi offers a wireless solution for most musical instruments.

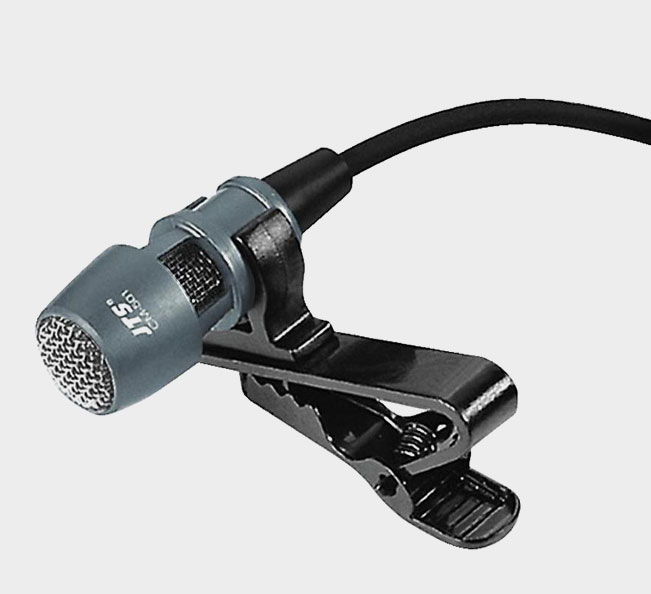

CM-501

 Uni-direction for high-quality voice pick-up.
 Wide dynamic range and frequency response for excellent sound reinforcement.
 Small size for minimum visibility.
 Together with clip for easy attaching to a tie, lapel, dress etc.

GENERAL SPECIFICATIONS

 US-8002D

  Frequency Preparation   PLL Synthesized Control
  Carrier Frequency Range   502~960 MHz
  S/N Ratio   > 105dB
  T.H.D.   <0.6%@1KHz
  Display   LED
  Display Contents   Antenna A/B, RF/AF Status
  Controls   Power On/Off, Channel Selecting, Audio Level
  Audio Output Level   -12dB
  AF Output Impedance   600Ω
  Squelch   Pilot Tone, Noise and Mute
  Operation Voltage   12-18 VDC, 200mA
  Output Connector   2 Balanced XLR socket
  1 Unbalanced Ø6.3mm phone jack
  Dimension (mm)   210mm (W)* 40mm (H)* 171mm (D)

 PT-850B

  Frequency Preparation   PLL Synthesized Control
  Carrier Frequency Range   502~960 MHz
  RF Outputs   10mW
  Stability   ±10KHz
  Frequency Deviation   ±48KHz
  LCD Display   Power On/Off, Low Battery
  Controls   Power On / Off,Channel Up / Down
  Output connector   4P mini XLR
  Spurious Emissions   <-60 dBC
  Audio Frequency Response   50~16,000 Hz
  Battery   Um3, AA 1.5V*2

 CM-501

  Connector   4P Mini XLR
  Frequency Response   100~15,000 Hz
  Polar Pattern   Cardioid
  Sensitivity (at 1KHz)   -60±3 dB* (1mV)*0dB=1V/μbar
  Impedance   2.2kΩ
  Max. SPL for 1% THD   130dB
  Dimension (mm)   Ø10.1mm(W)*  26.4mm(H)
  Net Weight   21.5g
