The P Audio GST18-1500 is an 18 inch (457mm) diameter high performance very low frequency sub woofer transducer. The design utilizes a very large format 5 inch (127mm) nominal voice coil diameter with a very high power copper based coil configured in an inside/outside wind geometry. The large radiating area and deep bass performance insure that the GST18-1500 is capable of very high impact low frequency response. The transducer also offers a double silicone spider design that improves long term mechanical reliability and mechanical linearity. The large format ferrite based magnet structure produces very high conversion efficiency. The ferrite design includes a double stack permanent magnet geometry that increases maximum physical excursion capability. Inside/outside winding geometry assists in coil cooling and improves both transducer power handling and system reliability. The GST18-1500 also features a very long air gap height that improves transducer linearity.
The design features very large diameter silicone impregnated spiders to insure long term linearity. The GST18-1500 also incorporates a proven double spider design that effectively controls off axis displacement of the coil assembly. The silicone impregnated spiders and very high system power handling will insure excellent long term performance. The cone is waterproof to improve reliability in high humidity environments.

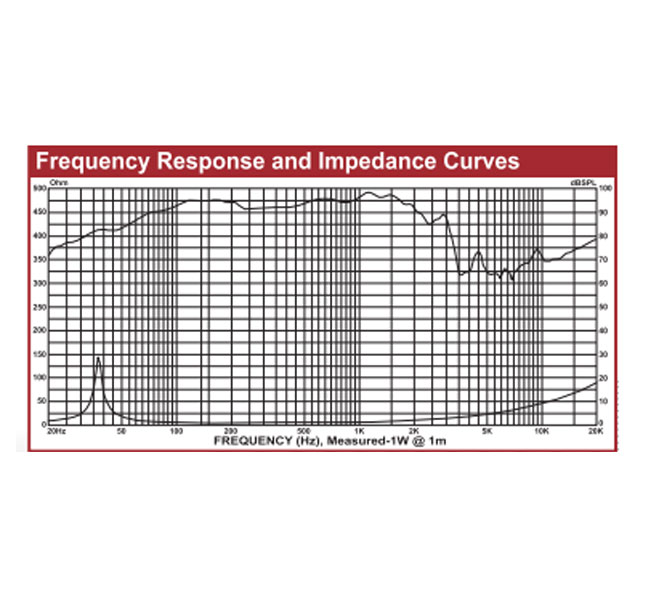

The GST18-1500 offers very smooth and controlled amplitude response and has a recommended high frequency limit of 150Hz. The rated low frequency limit of 35Hz will insure excellent low frequency extension and very deep bass response.
The GST18-1500 is an excellent choice for high output sub woofer system designs where extended deep bass energy is ecified. The design also features a very high strength to weight ratio cone . The GST18-1500 is ideally suited to vented enclosure designs and led with a wide range of top box enclosures.
The GST18-1500 features an aluminum die cast chassis that includes d Cooling" design that minimizes coil and magnet roves system performance. The rated s (AES) and offers a peak power headroom is available.
