XT-15

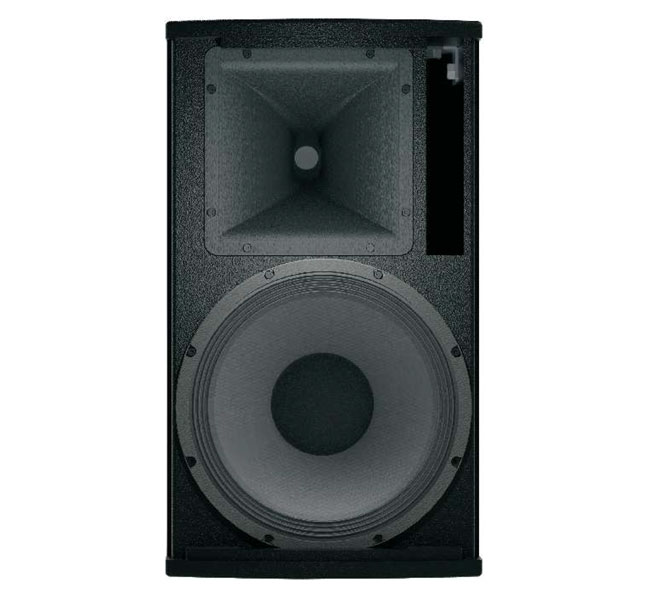

The P.Audio XT-15 is a compact professional sound reinforcement system designed for both foreground and background applications. The 15 inch (381mm) low frequency woofer offers extended low frequency response in a narrow profile design. The large 44mm compression driver with titanium diaphragm, coupled to the aluminium 90x40 horn offers superb transient response and controlled dispersion. The XT-15 is ideal for fixed installation applications such as restaurants, bars and general purpose public address and full range music systems.

The XT-15 is a full range design that employs high order passive networks for excellent summing and balance for the individual components and offering a higher degree of reliability. The power handling is rated at 400w continuous with a peak input power capability of 1600 watts. System impedance is rated at 8 ohms.

The enclosure is a very high quality plywood and finished in a very durable polyurea coating. The system includes a top hat system and an optional U bracket to allow fixed installation. The XT-15 may also be suspended using the P.Audio M10 Eye Bolt Kit. The XT-15 is a very high performance design that features simple mounting options for use in a variety of indoor applications.

GENERAL SPECIFICATIONS

  Frequency Response (-10dB)   50Hz-20kHz
  Sensitivity (1w/1m)   95dB
  Maximum Peak SPL   127dB
  Dispersion (H X V)   90° X 40°
  LF Components   15" Woofer
  HF Components   1.7" Compression Driver
  Input Impedance   8 Ohm
  Connections   2 X Speakon Connectors
  Power Handling   400w Continuous
  800w Program
  1600w Peak
  Net Weight   26 kg / 57.3 lbs

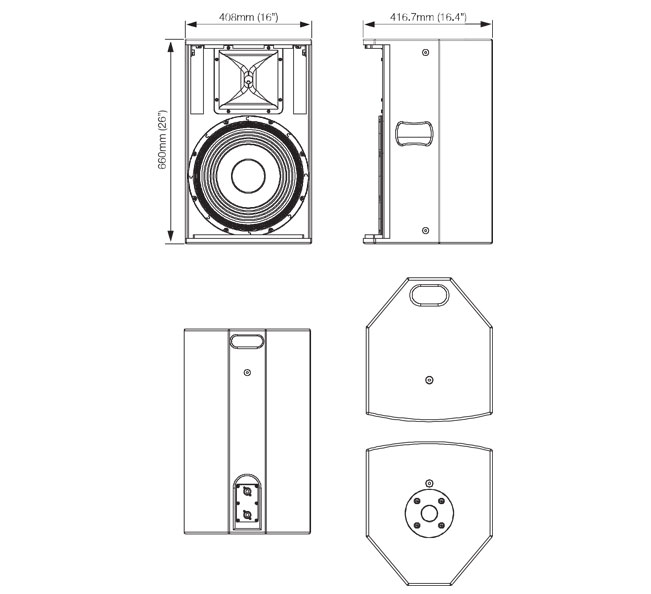

  Dimension WxDxH   408 x 416.7 x 660 (mm)
  16 x 16.4 x 26 (in)

FEATURES

  • 1600 Watts Peak Power Handling
  • High Sensitivity
  • Multiple Rigging Points
  • 90 X 40 Dispersion Pattern
  • Superior Time Domain Performance

APPLICATIONS

  • Compact Portable Sound Reinforcement
  • Medium Format Fixed Installation
