XT-8

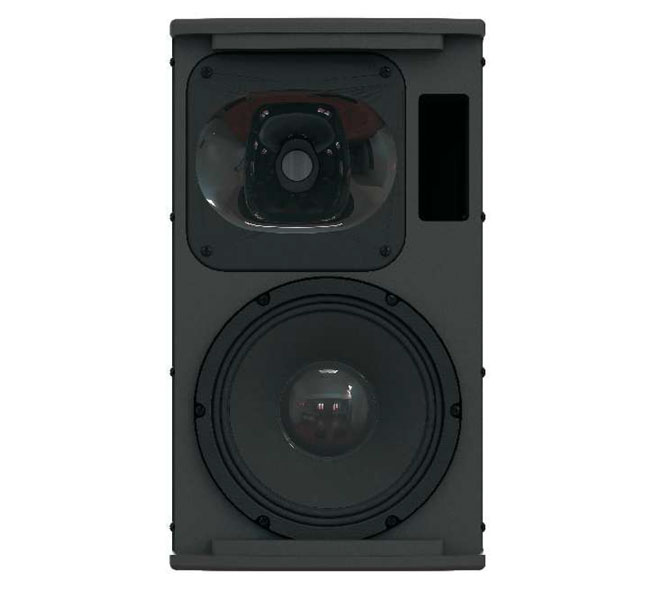

The P.Audio XT-8 is a compact professional sound reinforcement system designed for foreground/background applications. The XT-8 is ideal for fixed installation applications such as restaurants, bars, retail outlets and general purpose indoor public address and full range music systems. The design of the XT-8 features a wide bandwidth 8 inch (203mm) low frequency device and a true compression driver coupled to an elliptical wave guide for controlled high frequency dispersion. The rated included angles are 90 degrees by 65 degrees.

The XT-8 is a full range design that employs a high order passive crossover that provides excellent summing and balance for the individual transducer components. The XT-8 features linear amplitude response, very defined intelligibility and superior reliability. The power handling is rated at 200 watts continuous with a peak input power capability of 800 watts. Maximum peak SPL is 122dB. System impedance is rated at 8 ohms.

The enclosure is constructed with high quality plywood and finished in a very durable polyurea coating. The system includes a top hat style stand adaptor and an optional U bracket to allow flexible mounting. The XT-8 is a very high performance design that features simple mounting for use in a variety of indoor applications.

GENERAL SPECIFICATIONS

  Frequency Response (-10dB)   65Hz-20kHz
  Sensitivity (1w/1m)   92dB
  Maximum Peak SPL   122dB
  Dispersion (H X V)   90° X 65°
  LF Components   8" Woofer
  HF Components   1" Compression Driver
  Connections   2 X Speakon Connectors
  Power Handling   200w Continuous
  400w Program
  800w Peak
  Net Weight   10 kg / 22 lbs

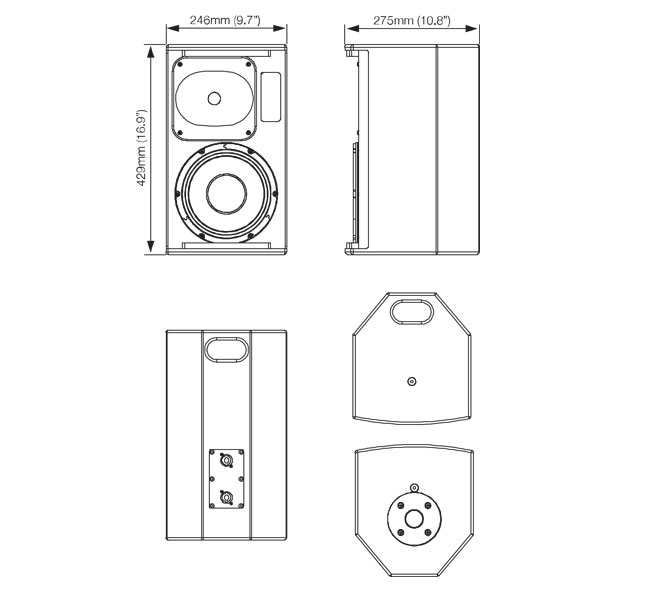

  Dimension WxDxH   429 x 246 x 275 (mm)
  16.9 x 9.7 x 10.8 (in)

FEATURES

  • 800 Watts Peak Power Handling
  • High Sesitivity
  • 90 X 65 Acoustic Dispersion / Elliptic Wave Guide
  • Very High Intelligibility

OPTIONAL ACCESSORIES

  • External "U" Bracket
  • Standard 35mm Pole mount to combine with subwoofer

APPLICATIONS

  • Very Compact Sound Reinforcement
  • Fixed Install
  • Portable Public Address
