15" Loudspeakers

Download Specification Sheet

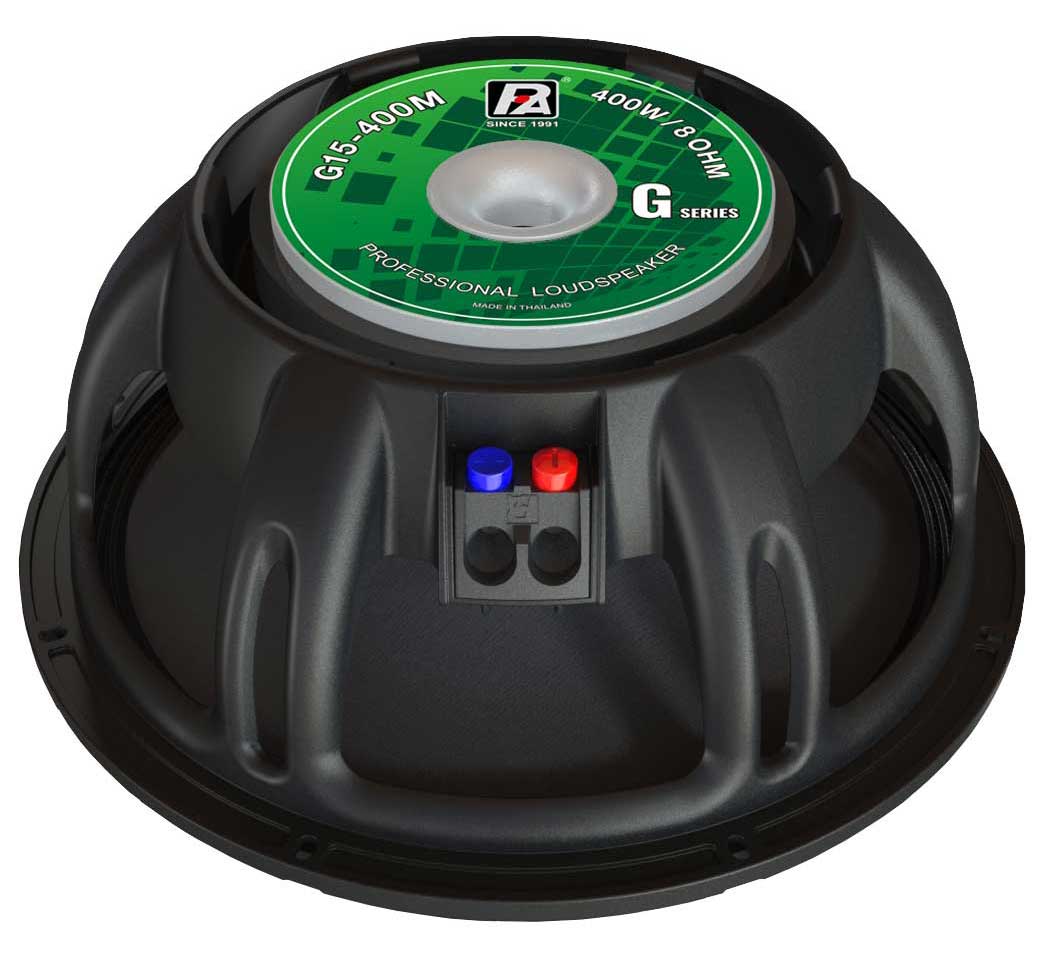

G15-400M

  • Nominal Diameter: 15 inches
  • Rated Impedance: 8 ohms
  • Power Handling Capacity: 400W (AES)
  • Operating Bandwidth (+/-10dB): 45-3000 Hz
  • Sensitivity @ 1W 1M: 97 dB
  • Magnet Type: Ferrite
  • Voice Coil Diameter: 3 inches

Download Specification Sheet

GENERAL SPECIFICATIONS

  Nominal diameter   381 mm/15 in
  Power rating   400 W(AES)
  Nominal impedance    8Ω
  Sensitivity    97 dB
  Frequency range    45-3000 Hz
  Chassis type    Aluminum
  Magnet type    Ferrite
  Magnet weight    2.3 kg/81.4 oz
  Voice coil diameter    76.2 mm/3 in
  Coil material    CCA-W Wire
  Former material    GSV
  Cone material   Paper
  Surround material   Cloth
  X-max    3.9 mm/0.35 in
  Size WxDxH(mm)    415 x 415 x 200
  Gross weight    8.9 kg/19.6 lb

SMALL SIGNAL PARAMETERS

  Re   5.4Ω
  Fs   48 Hz
  Mms   83.92 g/2.96 oz
  Mmd   69.53 g/2.45 oz
  Qms   7.65
  Qes   0.52
  Qts   0.49
  Vas   134.87 lt/4.0 ft7
  SD   855.3 cm2
  BL   16.17 Txm
  Cms   1.3e-04 m/N
  Rms   3.33 Ns/m
  Le (at 1kHz)   0.49 mH
