E12-200S

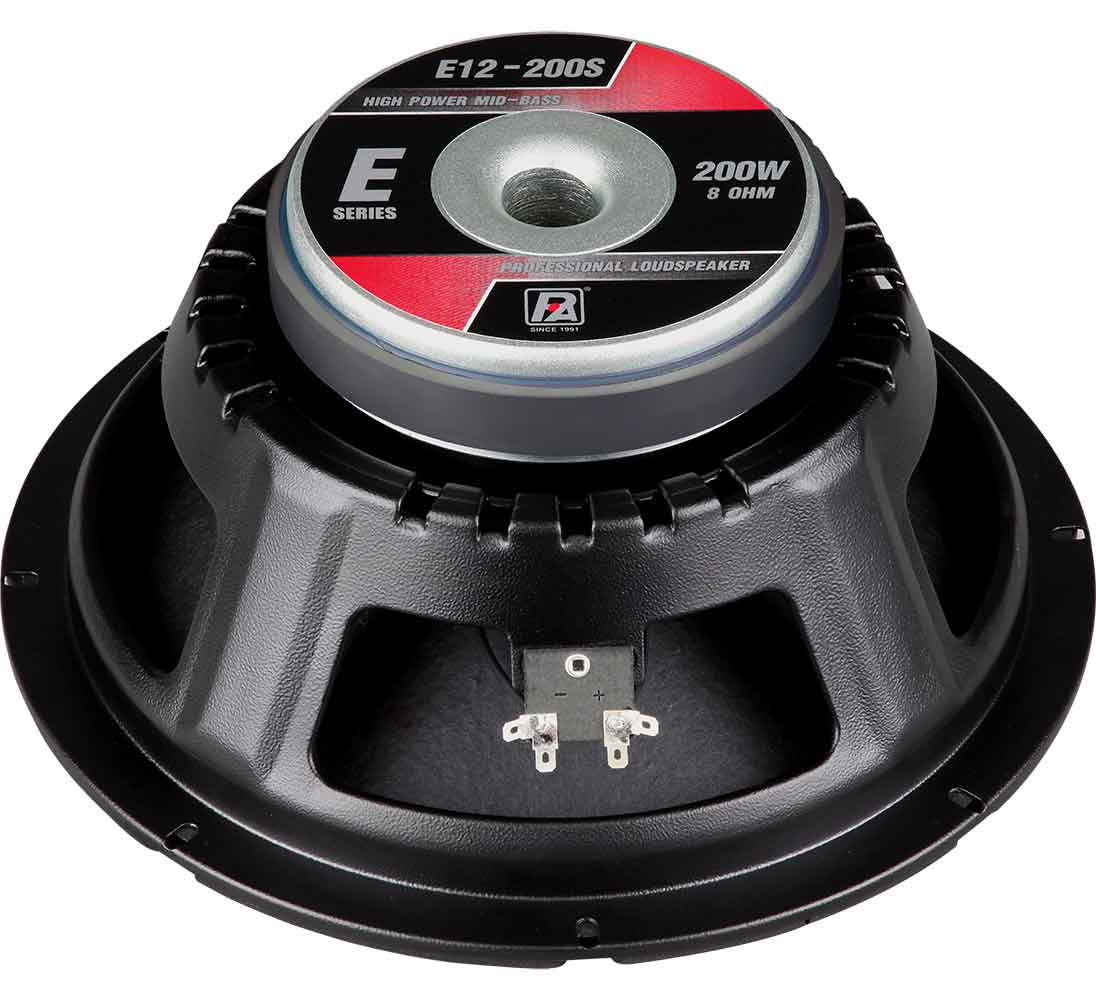

The P.Audio E12-200S is a high output low frequency transducer. The E12-200S is an upgraded design that features many of P.Audio’s new technologies and performance upgrades. The 12 inch (305mm) diameter piston will produce extremely high sound pressure levels at low frequencies and is ideal for high level full range response in both live sound and recorded music venues. The operating bandwidth of the E12-200S is 50Hz to 3500Hz. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio.

The E12-200S employs a medium format 2.5 inch (63.7mm) diameter voice coil that provides an AES rated 200 watts of continuous power handling and a full 800 watts of peak rated power handling when sufficient amplifier headroom is available. The E12-200S utilizes P.Audio’s under damper venting technology to improve transducer air flow and reduce turbulence under the damper and around the voice coil.

The voice coil design is a bobbin wound geometry with P.Audio’s precision round wire technology to maximize system conversion efficiency.

The suspension has been designed specifically for high linear displacement and extended low frequency response.

The transducer chassis is a heavy gauge stamped steel design that insures a very high degree of structural integrity.

Download Specification Sheet

GENERAL SPECIFICATIONS

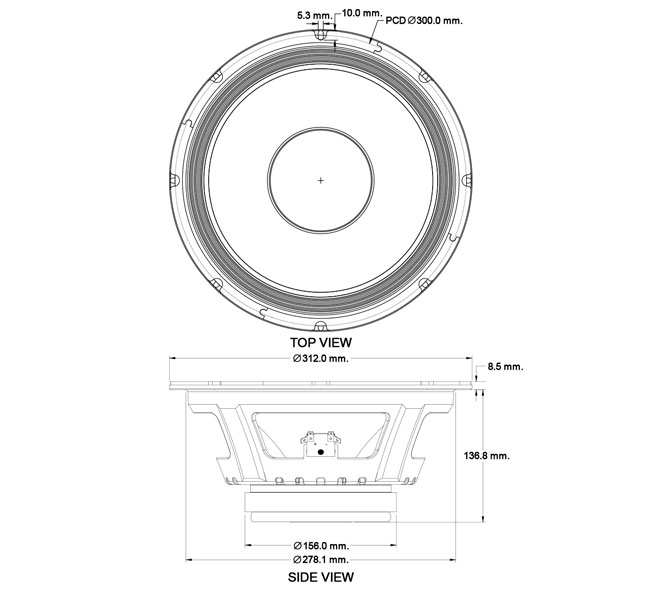

  Nominal diameter   305 mm/12 in
  Power rating   200 W(AES)
  Nominal impedance   8Ω
  Sensitivity   95 dB

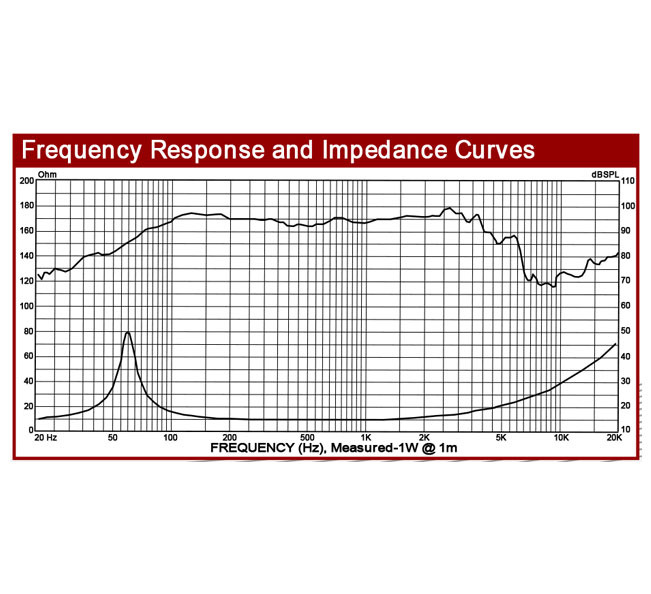

  Frequency range   50-3500 Hz
  Chassis type   Heavy Duty Stamp Steel
  Magnet type   Ferrite
  Magnet weight   1.4 kg/49.4 oz
  Voice coil diameter   63.7 mm/2.5 in
  Coil material   CCA-W
  Former material   Glass fiber
  Cone material   Paper
  Surround material   Cloth
  Suspension   Single
  X-max   4.1 mm/0.161 in
  Gap depth   8 mm/0.3 in
  Voice coil winding width   16.2 mm/0.64 in
  Packing dimension WxDxH (mm)   330 x 330 x 180
  Net weight   4.6 kg/10.8 lb
  Shipping weight   5.2 kg/11.5 lb

FEATURES

  • 2.5” Voice Coil
  • 800 Watts Peak Power Handling
  • Ferrite Magnetics
  • Precision Circular Wire Geometry
  • Stamped Steel Chassis

SMALL SIGNAL PARAMETERS

  Re   5.8Ω
  Fs   59 Hz
  Mms   47.4 g/1.67 oz
  Mmd   40.37 g/1.42 oz
  Qms   5.83
  Qes   0.63
  Qts   0.57
  Vas   61.97 lt/2.19 ft3
  SD   531 cm2
  BI   12.66 Tm
  Cms   1.6e-04 m/N
  Rms   2.96 Ns/m
  Le (at 1kHz)   0.427 mH
