The P Audio PA-D99 is a large format compression driver that utilizes a precision formed diaphragm assembly. The titanium diaphragm is precision formed to insure excellent consistency and performance. The diaphragm assembly is close spaced to a precision phase plug to insure excellent acoustic loading.
The PA-D99 has an operating range of 500Hz to 18000Hz and is ideally suited for two way and three way high frequency applications in professional sound reinforcement system.

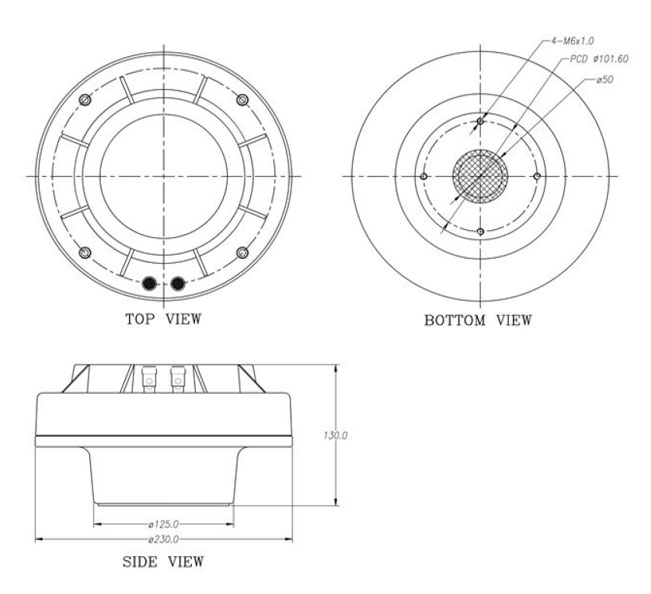

The PA-D99 is a ferrite based magnetic system with an industry standard 2 inch exit diameter. The mounting configuration is a standard "bolt on" style. P Audio offers a wide variety high frequency horns that will provide excellent pattern control and acoustic loading for the PA-D99.
The diaphragm assembly is a 4 inch diameter commercially pure titanium design and utilizes P Audio's P Audio's very high temperature adhesive systems and precision manufacturing to insure high power handling and reliability. The construction yields a full 150 watts of power handling capacity. The larger diaphragm diameter (4 inch) medium power professional sound reinforcement systems.
