XT-10


The P.Audio XT-10 is a compact professional sound reinforcement system designed for foreground/background applications. The 10 inch (254mm) low frequency woofer offers extended low frequency response in a very small profile design. The XT-10 is ideal for fixed installation applications such as restaurants, bars, retail outlets and general purpose indoor public address and full range music systems. The 10 inch design provides superior music range performance and extended bandwidth for applications that specify enhanced music content. The design of the XT-10 features a wide bandwidth 10 inch (254mm) low frequency device and a true compression driver coupled to an elliptical wave guide for controlled high frequency dispersion. The rated included angles are 90 degrees by 65 degrees.

GENERAL SPECIFICATIONS

  Frequency Response (-10dB)   60Hz-20kHz
  Sensitivity (1w/1m)   93dB
  Maximum Peak SPL   123dB
  Dispersion (H X V)   90° X 65°
  Input Impedance   8 Ohm
  Connections   2 X Speakon Connectors
  Power Handling   200w Continuous
  400w Program
  800w Peak
  Net Weight   13 kg / 28.7 lbs

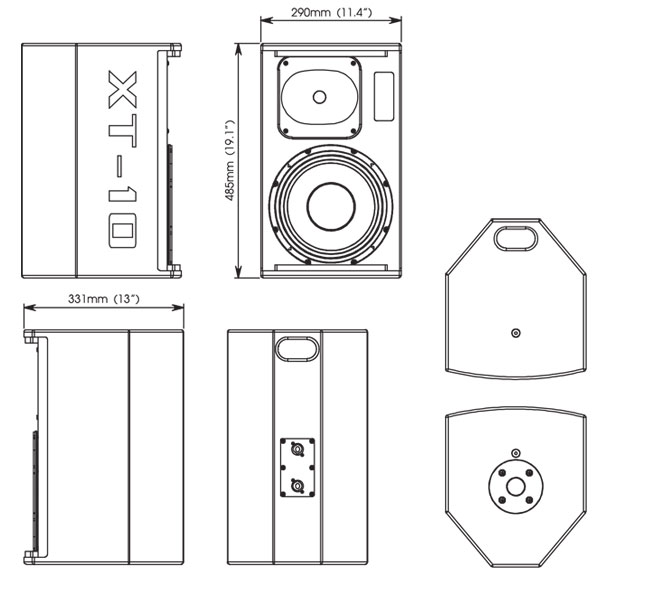

  Dimension WxDxH   485 x 290 x 331 (mm)
  19.1 x 11.4 x 13 (in)

FEATURES

  • 800 Watts Peak Power Handling
  • High 1 Watt / 1 Meter Sesitivity
  • Multiple Rigging Points
  • 90 X 65 Elliptic Wave Guide

OPTIONAL ACCESSORIES

  • External "U" Bracket
  • Standard 35mm Pole mount to combine with subwoofer

APPLICATIONS

  • Compact Portable Sound Reinforcement
  • Small Format Fixed Installation
  • High Intelligibility
