Gallardo-4


The P.Audio Gallardo-4 is a small format high performance sound reinforcement system designed for high quality foreground and background music applications. The Gallardo-4 is designed for both indoor and outdoor applications where music and speech reinforcement is specified. The system is ideal for use in restaurants, retail environments, bars, hotels, and other applications where high quality music systems are specified.

The Gallardo-4 utilized a two element array of high output 4 inch (101.6mm) woofers. The horn loaded high frequency wave guide is positioned between the two element arrays to insure coherent and balanced high frequency response. Polar lobing is controlled by this geometry and produces a properly aimed response at the crossover frequency.

The Gallardo-4 features a standard multi-tap transformer input that is switch able from a maximum of 50 watts of input power in essentially 3dB steps. The available taps are 50 watts, 25 watts, 12 watts and 5 watts. The Gallardo-4 may also be easily configured for a standard low impedance direct input. The system also features a standard mounting bracket designed for flexible aiming and easy installation. The small physical size and unique appearance of the Gallardo-4 make it an ideal installation product. It is very versatile and combines great sound with great looks.

GENERAL SPECIFICATIONS

  Type   3 Way Full Range
  Passive Bass Reflex
  Power   50 Watt
  Nominal Impedance   4 Ohm
  Sensitivity (1W@1M)   87 dB

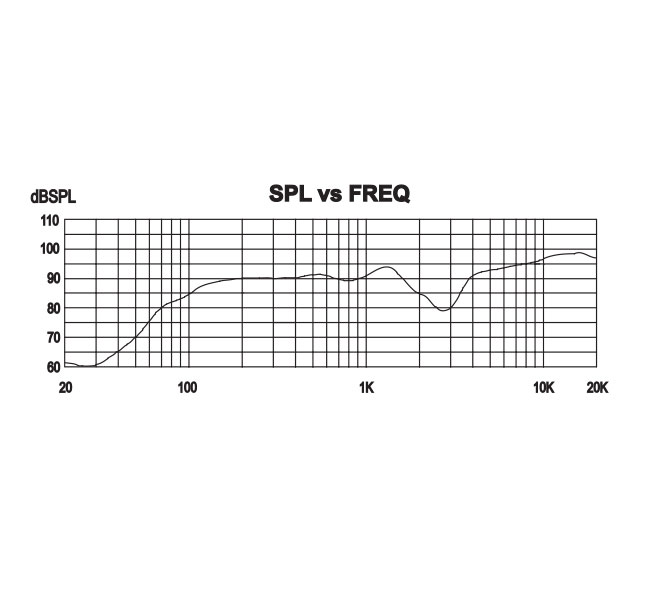

  Frequency Response   80Hz – 18kHz

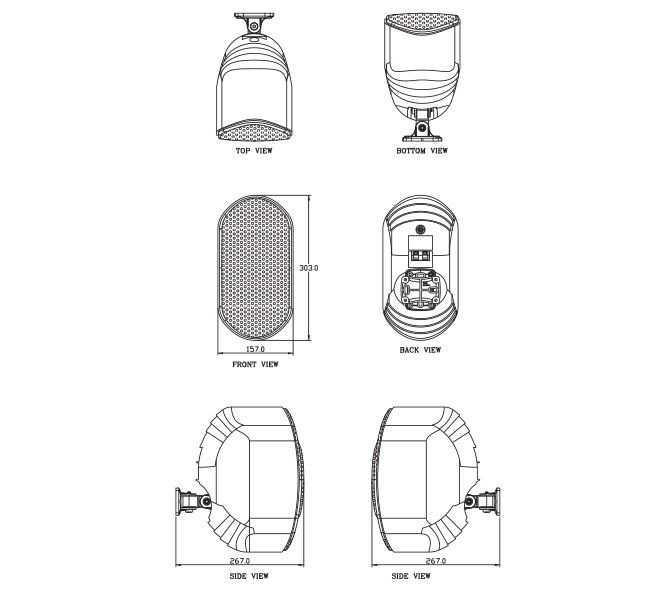

  Dimension (H x W x D)   303 x 157 x 267 (mm)
  (11.9" x 6.2" x 10.5" )
  Finish Color   Black or White
  Transformer Type   Isolate 5, 12, 25, 50 Watt / 100 V
  Direct   4 Ohm (Switchable)
  LF Component   2 x 4" (101.6 mm) Cone Speaker
  HF Component   1 x 1" (25.4 mm)
  Titanium Diaphragm
  Construction   Injection Molded High Impact
  Polycarbonate
  Grill   Powder Coated Steel Mesh
  Connector   1 x Push Terminal
  Rigging / Fitting   Universal Supports
  Standard Packing   2 Pcs / Pack
  Unit Weight   5 kg (11.0 lbs)
  Shipping Weight   11.2 kg (24.6 lbs)
  Dimension WxDxH   350 x 465 x 305 (mm)
  13.8" x 18.3" x 12.0" (1.75 cu.ft)

FEATURES

  • High Sensitivity
  • Indoor/Outdoor Weather Resistant
  • Two Element Low Frequency Array
  • Multi-Tap Matching Transformer Standard
  • Mounting Bracket Included
  • Neodymium Based High Frequency Driver
